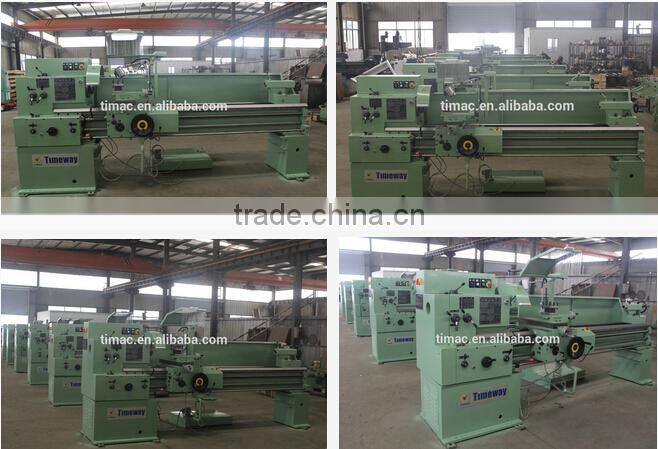

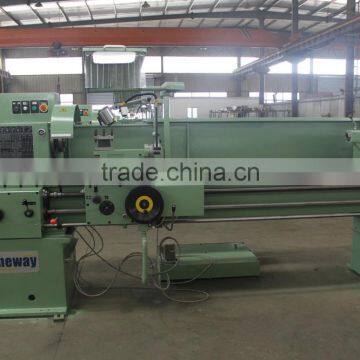

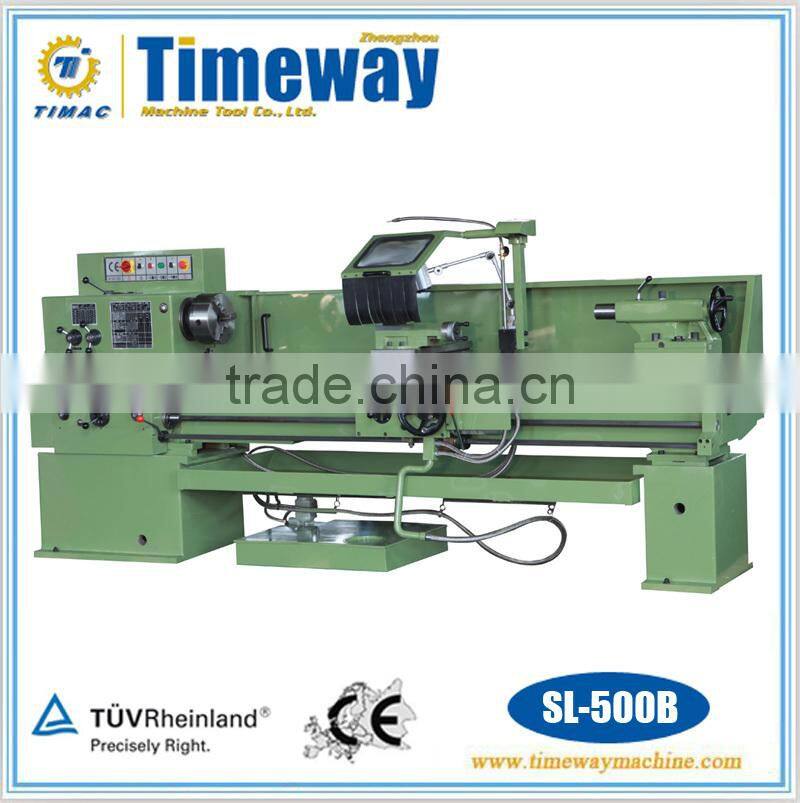

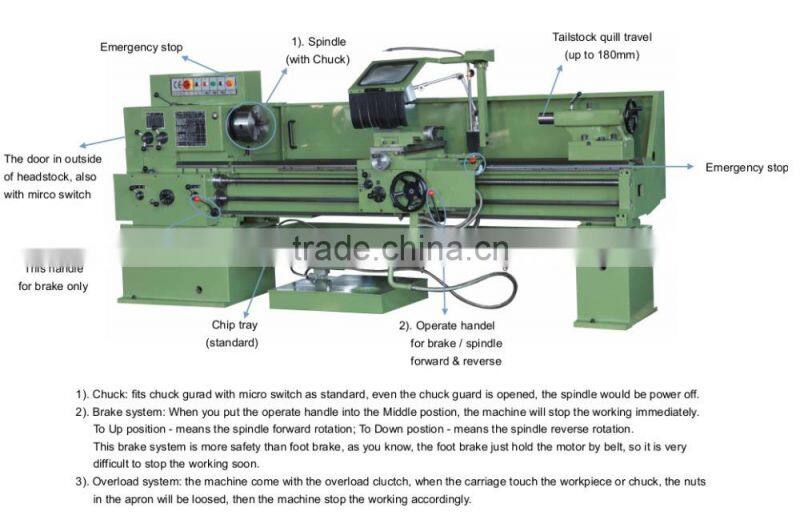

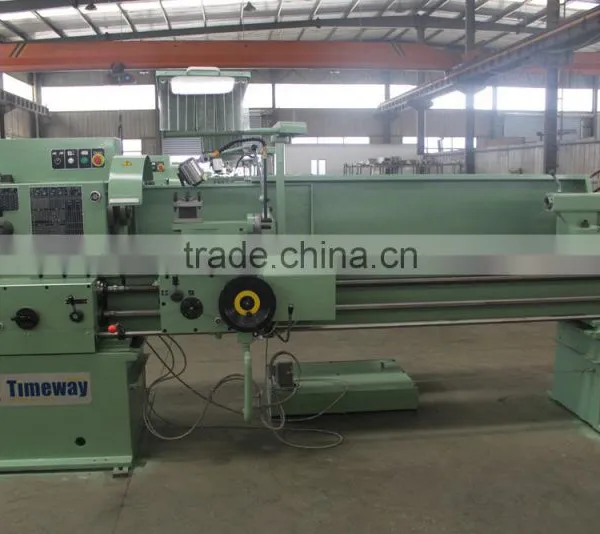

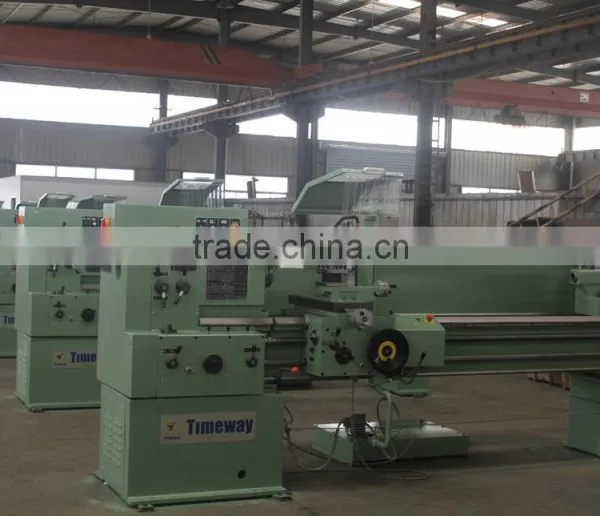

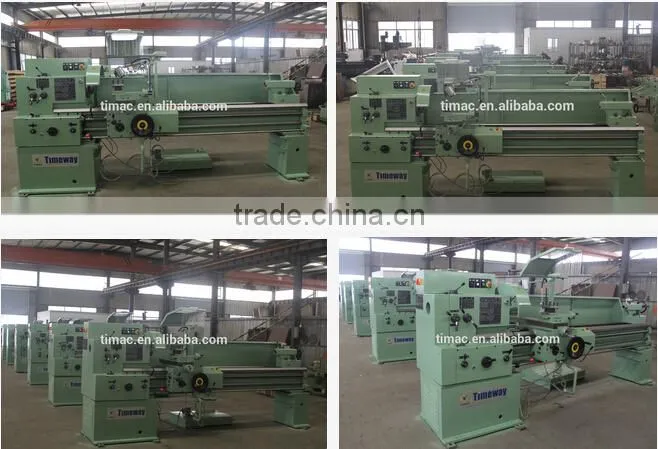

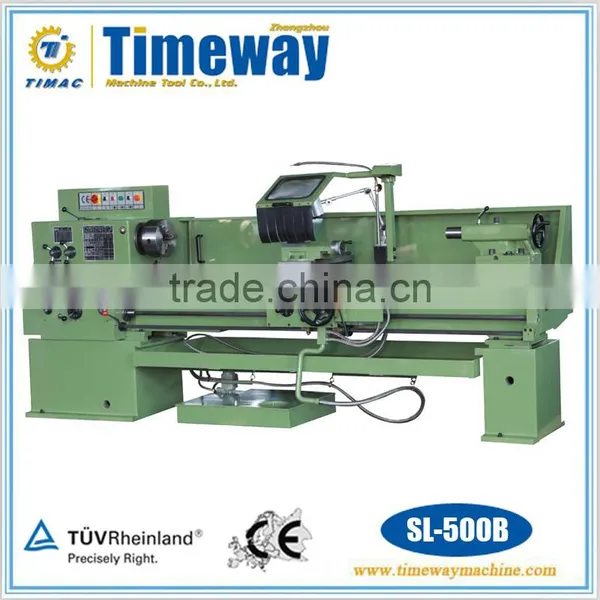

Universal Center Lathe SL-500B
(500mm swing x 1000/1500/2000mm length)
Features:
• SL-500B is the universal center lathe(horizontal gap bed lathe) for professional users, designed for piece and small lot
production, suitable for maintenance and repair divisions as well.
• It is customers´ classic with main motor output of 5.5 kw.
• Positive price/value ratio
• Easy maintenance
• Long lifetime
• Low operating costs
• Easy and ergonomic control
• High turning precision
• Various versions with wide range of optional accessories
Specification:
Model | SL-500B | |||
CAPACITY | Max. distance between two centers | 1000mm | 1500mm | 2000mm |
Max. swing dia. over bed | Φ 500mm | |||
Max. swing dia. over cross slide | Φ 270mm | |||
Max. swing dia. over gap | Φ 700mm | |||
Max. workpiece weight between center | 300kg | |||
SPINDLE | Spindle nose | STN ISO 702 / III - C6 | ||
Spindle bore | Φ 52mm | |||
Internal spindle taper | Morse 6 | |||
Spindle speed range and step | 22~2000min -1 (18steps) | |||
Limit speed for max.torque | 1200/45N.m/min -1 | |||
THREADS | No. and range of Inch thread | 38kinds, 1~80T.P.I | ||
No. and range of Metric thread | 29kinds, 0.5~40mm | |||
No. and range of Diametral thread | 31kinds, 2~72D.P | |||
No. and range of Module thread | 26kinds, 0.25~20MP | |||
Lead screw diameter | Φ 40mm | |||
TRAVEL | Working range of longitudinal feed | 0.05~6.4mm.rev-1 | ||
Working range of cross feed | 0.025~3.2mm.rev-1 | |||
Rapid traverse (Longitudinal & cross) | 3000/1500mm.min -1 | |||
Max. tool shank size | 32×20 mm | |||
Tool slide working travel | 140mm | |||
cross slide working travel | 300mm | |||
Carriage working travel | 1000mm | 1500mm | 2000mm | |

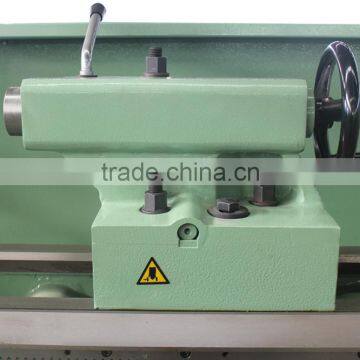

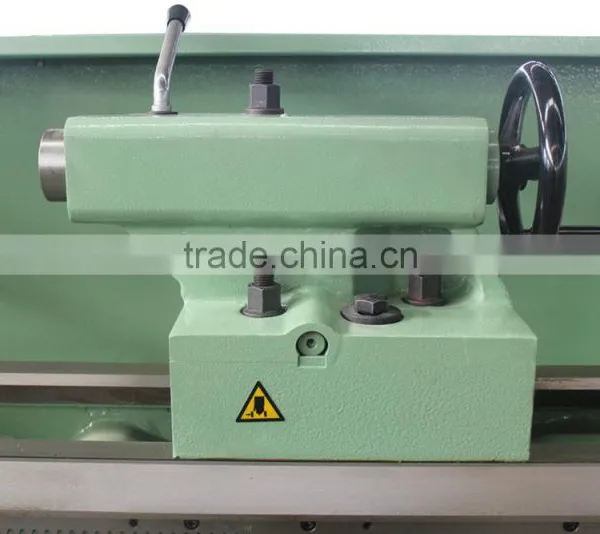

TAILSTOCK | Tailstock sleeve diameter | Φ 70mm | ||
Max. travel of tailstock quill | 180mm | |||
Taper hole of tailstock | Morse 5 | |||
OTHER | Main motor power | 5.5kw | ||
Overall dimensions (L×W×H) | 2640, 3145, 3630×1100×1505mm | |||
Machine weight | 1735kg | 1835kg | 1940kg | |
Price (FOB China) |
|
| ||
*** Standard Configuration:
Metric or Inch version, Right handwheel (on apron), 3 jaw chuck Φ 250mm, 4 jaw chuck Φ 250mm, Face plate, Chuck guard,
Steady rest, Follow rest, 4-way tool post & guard, Coolant tank, Halogen light, Dead center, Rear splash guard, General tools,
Packing with wooden pallet for shipment.
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2640*1150*1750MM N.W./G.W.: 1735/1950KG (1000mm)
3145*1150*1750MM N.W./G.W.: 1835/2050KG (1500mm)
3630*1150*1750MM N.W./G.W.: 1940/2150KG (2000mm)
Container loaded: 4 sets / 20'GP (1000mm)
6 sets / 40'GP (1500mm)
6 sets / 40'GP (2000mm)
