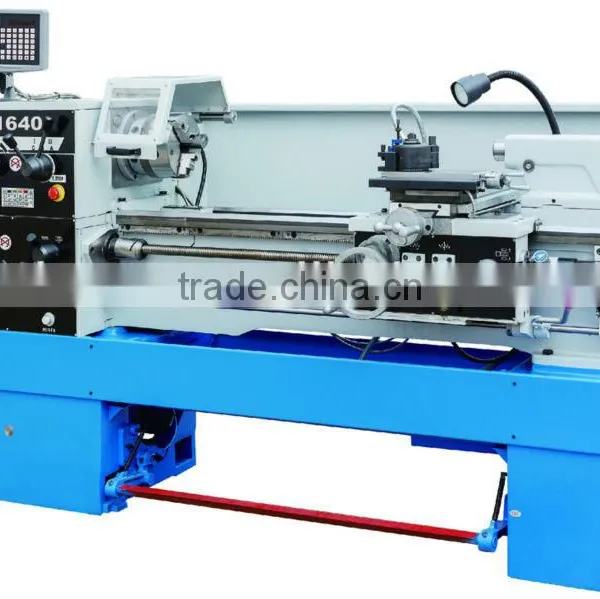

New Type Gear Head Gap Bed Lathe(L-1640, L-1660)

New Type Gear Head Gap Bed Lathe(L-1640, L-1660) thumbnail-1
New Type Gear Head Gap Bed Lathe(L-1640, L-1660) photo-1
US$ 6,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Semi-Automatic
Max. Swing Diameter 400mm
Brand Name Timac
Model Number L-1640, L-1660
Voltage as require!!
Power(W) 4/505kw
Weight 1800kg, 2000kg
Certification TUV
After-sales Service Provided Engineers available to service machinery overseas
Specification Unit L-1640 L-1660
Center Height mm 200 200
Center Distance mm 1000 1500
Swing Over Bed mm 400 400
Swing Over Carriage mm 240 240
Swing Over Gap mm 590 590
Gap Width mm 255 255
Bed Width mm 320 320
Spindle Nose   D1-6 D1-6
Spindle Bore mm 52 52
Spindle Taper   MT6 MT6
Spindle Speed rpm 26-1600 26-1600
Spindle Speed Step mm 12 (2 SPEED MOTOR) 12 (2 SPEED MOTOR)
Dia. Of Tailstock Sleeve mm 60 60
Taper Of Tailstock Sleeve mm MT4 MT4
Longitudinal Feed mm 0.03 - 0.53 0.03 - 0.53
Cross Feeds mm 0.02 - 0.39 0.02 - 0.39
Metric Threads   0.5-9MM, 17 KINDS 0.5-9MM, 17 KINDS
Imperial Threads   2-38/8t.p.i/17 KINDS 2-38/8t.p.i/17 KINDS
Leadscrew Pitch mm 6 6
Top Slide Travel mm 100 100
Cross Slide Travel mm 220 220
Tool Shank Size mm 20x20 20x20
Main Motor kw 4/5.5 4/5.5
Machine Weight (N.W.) kg 1800 2000
