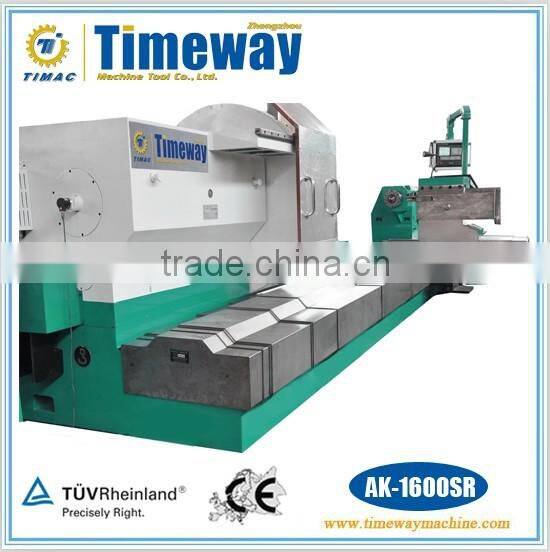

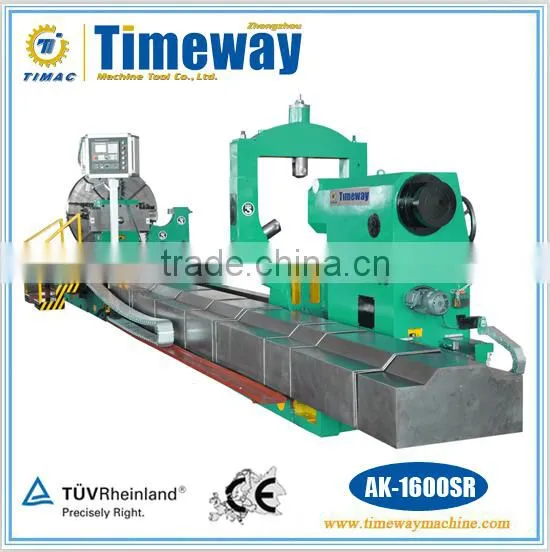

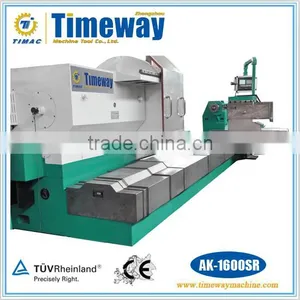

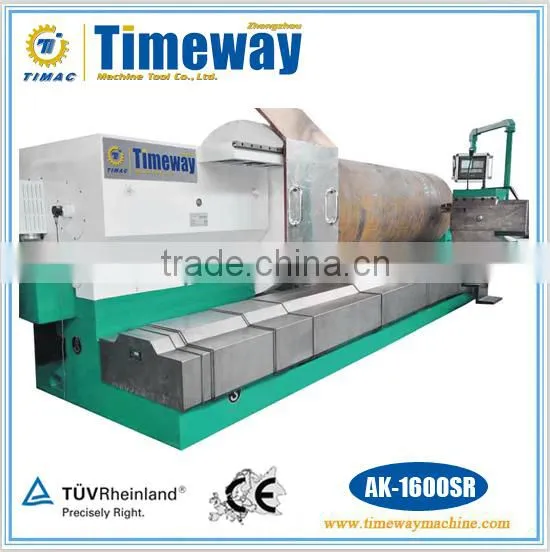

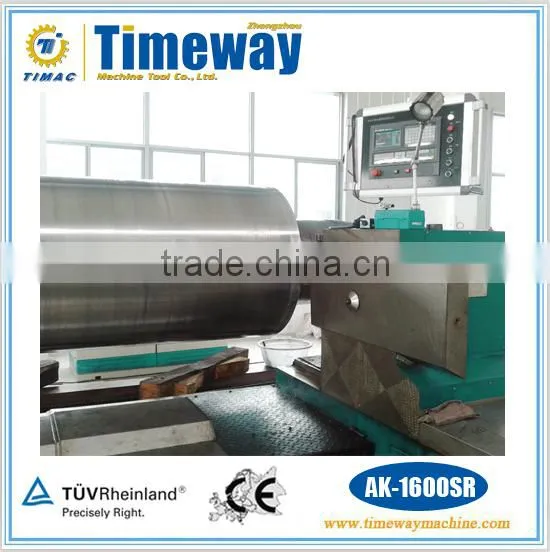

Heavy Duty Horizontal Lathe (Roller Turning Lathe)
model: AK-1600SR/7000
--- 40Ton loading capacity, 1250mm roll diameter, 7000mm roll length ---
Features:
1. The heavy duty lathe machine is suitable for machining different material shafts, cylinder and rollers, can be able to turning the cylindrical, conical surface, hook face, inner bore, end face, and groove cutting, etc.
2. Adopt high rigidity HT250 Meehannite cast iron, the whole machine has excellent rigidity, stability, precision retaining ability, which is much suitable for heavy cutting.
3. Fixed structure and widen rectangular guide ways ensure the resistance and stability when heavy cutting.
4. The tool post adopts frame reinforced structure, has big loading capacity.
Standard Accessories:
1. GSK-980TDc CNC system
2. 8.4' color screen display
3. 75° center, precision bearings
4. Hanging control button station and service bench
5. Circulating cooling device
6. Protective cover for X, Z axis guideways
7. Closed steady rest
8. Open steady rest
9. Servo motors with cable 15m and drag chain
10. Auto. lubrication system
11. Separated wire control type handwheel
12. Auto. power-off protective device
13. Electric control cabinet
14. Work lamp, general tools
15. Foundation bolts
16. Operation and maintenance manual
Specification | AK-1600SR/7000 | |
Max. swing over bed | 1600mm | |
Max. swing over cross slide | 1250mm | |
Max. working length of workpiece | 7000mm | |
Max. weight of workpiece | 40,000kg | |
Length of machine bed | 9500mm | |
Width of machine bed | 1600mm | |
Diameter of face plate | 1600mm | |
Max. torque of face plate | 40KN.m | |
Max. cutting force of tool post | 25KN | |
Center angle | 75° | |
Spindle diameter | 300mm | |
Spindle speed steps | stepless | |
Spindle speed range | 2~80rom | |
Longitudinal feeding of tool post | 0~3000mm/min | |
Transverse feeding of tool post | 0~3000mm/min | |
Longitudinal travel of tool post | 7000mm | |
Transverse travel of tool post | 800mm | |
Diameter of tailstock sleeve | 290mm | |
Diameter of tailstock spindle | 160mm | |
Rapid speed of tailstock | 2000mm/min | |
Main motor (power, speed) | 75kw, 150~1500rpm | |
Servo motor of Z-axis feeding (torque, speed) | 38N.m, 0~1500rpm | |
Servo motor of X-axis feeding (torque, speed) | 30N.m, 0~1500rpm | |
Rapid motor of tailstock (power, speed) | 1.5kw, 1500rpm | |
Lubrication motor of headstock (power, speed) | 0.55kw, 1500rpm | |
Total power | 100KVA | |
Machine weight | 55,500kg | |
Floor space (LxW) | 11000x3000mm | |
Geometric accuracy | Spindle radial runout (root) | 0.03mm |
| Spindle axial channeling | 0.03mm |
| Center radial runout | 0.03mm |
Working accuracy | Roundness | 0.03/300mm |
| Cylindricity | 0.03/300mm |
| Flatness | 0.03/300mm |
| Positioning accuracy | 0.03/300mm |
| Re-positioning accuracy | 0.03/300mm |
| Cylindrical surface roughness | <Ra3.2μm |
