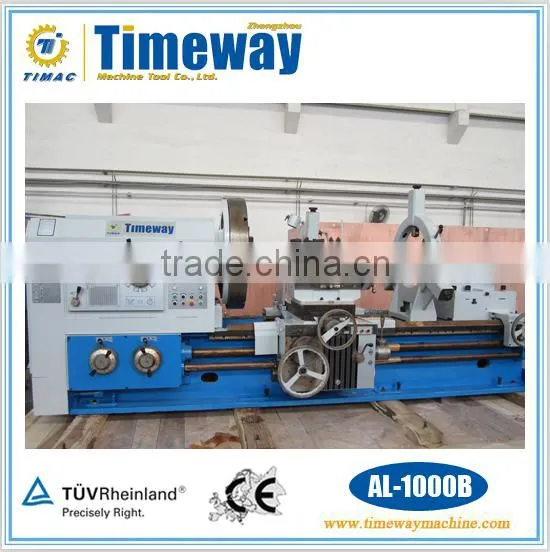

6 Tons Loading Metal Industry Lathe AL-1000B

FOB Price

USD $21,850 - $38,950 / Set

1 Set(Min.Order)

Supply Ability 60 Set / Sets per Month
Port Tianjin or Shanghai Port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Horizontal	CNC or Not:	Normal
Automatic Grade:	Manual	Max. Swing Diameter:	1000mm	Brand Name:	Timac
Model Number:	AL-1000B	Voltage:	As customer's request	Power(W):	22KW
Dimension(LWH):	as model	Weight:	as model	Certification:	ISO9001, CE
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Horizontal Metal Industry Lathe Machine

Features:

These lathes are suitable mainly for turning internal and external cylindrical, conical and other swing surface as well as various metric, inch, module and diametric pitch threads. They can also be used for broaching oil grooves and key ways.

1. The side wall of bed is constructed with double rib plates, and the shape of internal ribs is of box type and bevel ribs combination. The rigidity is higher than that of ordinary lathes. The precision is stable. And these lathes can carry out strong force cutting.

2. On apron, there is a device, operated by a single lever, used for rapid traverse of the carriage. Spindle's braking and rotating direction change is controlled by hydraulic system, or by hand operation, all to user's choice.

3. The saddle guide way is glued by “TSF” soft belt wear resisting materials.

4. On user's demand, we can equip the lathe with automatic feeding mechanism .

The top slide can be used independently for turning of short cone.

In combination with longitudinal feeding, it can also turn long taper surface.

Parameter:

Specification		Unit	AL-1000B	AL-1250B	AL-1600B
*Capacity	Centre height	mm	500	625	820
	Swing over bed	mm	1000	1250	1640
	Swing over carriage	mm	615	865	1250
	Maximum length of workpiece	mm	1500/3000/5000/6000/8000/10000 /12000/14000/16000/18000
	Maximum turning length	mm	1300/2800/4800/5800/7800/9800 /11800/13800/15800/17800
	Max.weight of workpiece	ton	6 ( optional 8 tons)
	Width of guide way	mm	755

*Spindle	Spindle nose	mm	A2-15(8XM22)
	Spindle bore	mm	130
	Taper hole of spindle		1:20/140
	Number of forward turning speeds		21
	Number of reverse turning speeds		12
	spindle speeds(forward)	r/min	3.15-315
	spindle speeds(reverse)	r/min	3.5-291

*Feed	Number of feeds per revolutio (longitudinal/transverse)		56/56
	Feed per revolution(Longitudinal)	mm	0.1-12(0.004"-0.473")
	Feed per revolution(Transverse)	mm	0.05-6(0.002"-0.236")
	Feed per revolution(Upper tool-post)	mm	0.025-3(0.001"-0.118")

*Threads	Number and range of metric thread	mm	44;1-120mm
	Number and range of inch thread	T.P.I	31;28-1/4
	Number and range of module thread	mm	45:0.5-60mm
	Number and range of diametrical pitch thread	D.P	38:1/2-56DP

*Carriage	Distance between spindle center line and tool resting plane	mm	48
	Section of tool shank	mm	45
	Tool post swing range	°	±90°
	Maximum travel of carrige	mm	1450/2950/4950/5950/7950/9950 /11950/13950/15950/17950
	Maximum travel of top slide	mm	300
	Maximum travel of cross slide	mm	520(20")	580(22")	630(24")
	Tool post travel per turn of the dials of top or cross slide	mm	0.05(0.002")
	Rapid travel speed(longitudinal)	mm/min	3740
	Rapid travel speed(Transverse)	mm/min	1870
	Rapid travel speed(Top slide)	mm/min	935

*Tailstock	Diameter of tailstock quill	mm	160(6")
	Travel of tailstock quill	mm	300(12")
	Taper hole of tailstock quill		Morse 6

*Motor	Main motor power	kw	22

***Standard accessories:
3-jaw chuck , Face plate, Morse reduction sleeve Φ113 1:20/M.T.No.5 , Centers M.T.No.5 , Wrenches

***Optional accessories:
4-jaw chuck, 250 Drive plate, Steady rest, Follow rest

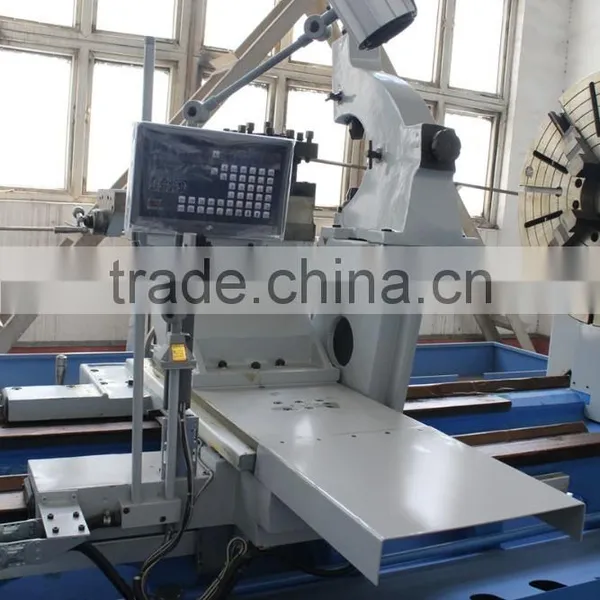

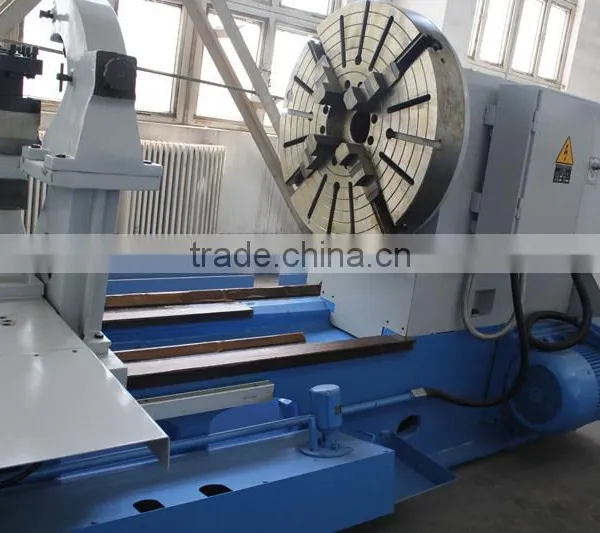

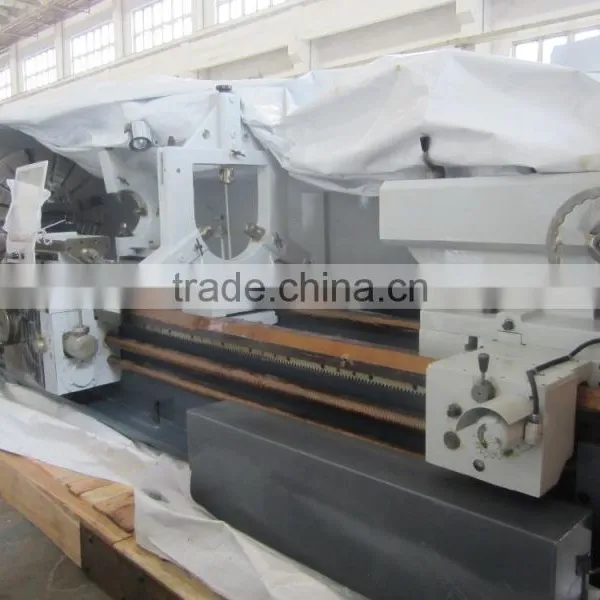

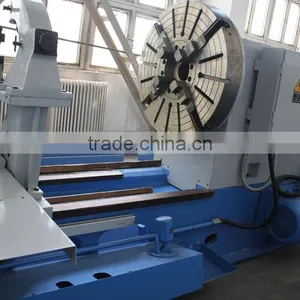

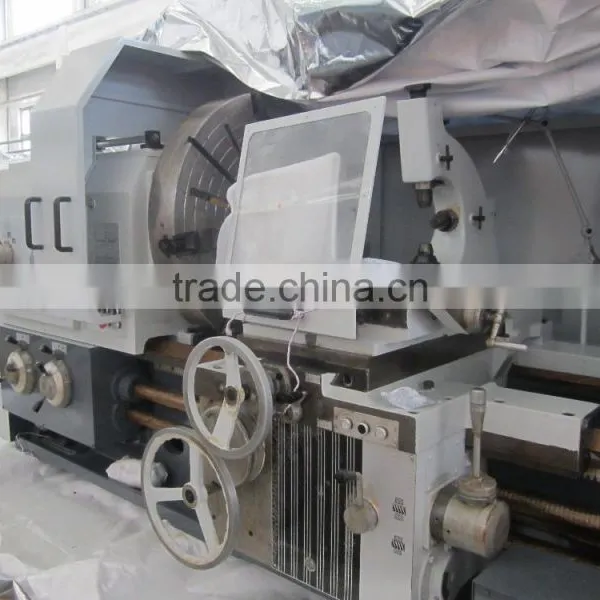

Detailed Images

* AL-630B Series (Bed width: 550mm; Loading capacity: 2 tons)

* AL-800 Series (Bed width: 600mm; Loading capacity: 3 tons)

* AL-1000B Series (Bed width: 755mm; Loading capacity: 6 tons)

* AL-1250C Series (Bed width: 970mm; Loading capacity: 10 tons)

Packaging & Shipping

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size:

One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG

Container loaded: 4 sets / 20'GP
