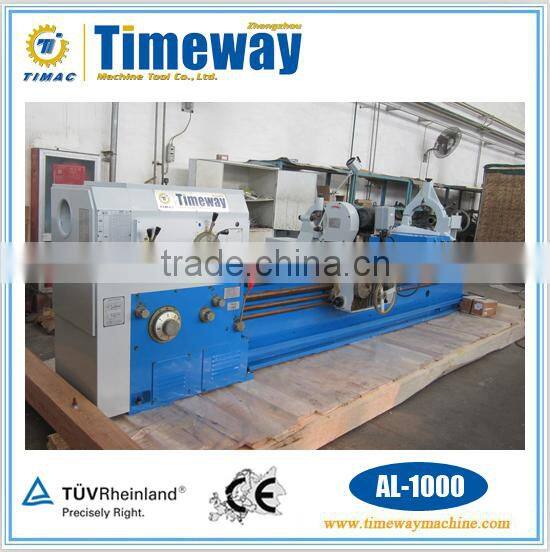

3 Tons Loading Metal Industry Lathe AL-1000
- 60 Set / Sets per Month
- Tianjin or Shanghai Port
- T/T
- CK210B Small CNC Lathe, Siemens CNC, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- TP 35/45 Series Parallel Double Spindle Turning Center
- WF-450QTN Line Rail Inclined Bed Turret Lathe
- Prototype CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 1000mm | Brand Name: | Timac |
Model Number: | AL-1000 | Voltage: | As customer's request | Power(W): | 11KW |
Certification: | ISO9001, CE |
Product Description
Horizontal Metal Industry Lathe Machine
Features:
These lathes are suitable mainly for turning internal and external cylindrical, conical and other swing surface as well as various metric, inch, module and diametric pitch threads. They can also be used for broaching oil grooves and key ways.
1. The side wall of bed is constructed with double rib plates, and the shape of internal ribs is of box type and bevel ribs combination. The rigidity is higher than that of ordinary lathes. The precision is stable. And these lathes can carry out strong force cutting.
2. On apron, there is a device, operated by a single lever, used for rapid traverse of the carriage. Spindle's braking and rotating direction change is controlled by hydraulic system, or by hand operation, all to user's choice.
3. The saddle guide way is glued by “TSF” soft belt wear resisting materials.
4. On user's demand, we can equip the lathe with automatic feeding mechanism .
The top slide can be used independently for turning of short cone.
In combination with longitudinal feeding, it can also turn long taper surface.
Parameter:
Specification | Unit | AL-800 | AL-1000 | |
*Capacity | Swing over bed | mm | 800 | 1000 |
Swing over carriage | mm | 480 | 680 | |
Maximum length of workpiece | mm | 1000/1500/2000/3000/4000/5000/6000 | ||
Maximum turning length | mm | 850/1350/1850/2850/3850/4850/5850 | ||
Width of guide way | mm | 600 | 600 | |
*Spindle | Spindle nose code | mm | C11 (C15 optional ) | C11 (C15 optional ) |
Diameter of spindle thru hole | mm | 100 (140 optional) | 100 (140 optional) | |
Taper hole of spindle |
| 1:20 | 1:20 | |
Number of forward turning speeds |
| 18kinds | 18kinds | |
Number of reverse turning speeds |
| 6kinds | 6kinds | |
Spindle speed Forward | r/min | 5.5 ~ 750 | 5.5 ~ 750 | |
Spindle speed Reverse | r/min | 10 ~ 775 | 10 ~ 775 | |
*Feed | longitudinal feed range |
| 64;0.1~24.32 | 64;0.1~24.32 |
Cross feed range |
| 64;0.05~12.16 | 64;0.05~12.16 | |
*Threads | Number and range of metric thread | mm | 50kinds: 1 ~ 240 | 50kinds: 1 ~ 240 |
Number and range of inch thread | TPI | 26kinds: 14 ~ 1 | 26kinds: 14 ~ 1 | |
Number and range of module thread | mm | 53kinds: 0.5 ~ 120 | 53kinds: 0.5 ~ 120 | |
Number and range of diametrical pitch thread | DP | 24kinds: 28 ~ 1 | 24kinds: 28 ~ 1 | |
*Carriage | Rapid traverse speed of carriage | mm/min | 4000 | 4000 |
Distance between spindle center-line and tool resting plane | mm | 33 | 33 | |
Size of tool shank | mm | 32 | 32 | |
Tool post swing range |
| ±90° | ±90° | |
Max. travel of top slide | mm | 200 | 200 | |
Max. travel of cross slide | mm | 500 | 500 | |
*Tailstock | Diameter of Tailstock quill | mm | 100 | 100 |
Travel of tailstock quill | mm | 250 | 250 | |
Taper hole of tailstock quill |
| morse6 | morse6 | |
| Main motor power | kw | 11 | 11 |
***Standard accessories:
3-jaw chuck , Face plate, Morse reduction sleeve Φ113 1:20/M.T.No.5 , Centers M.T.No.5 , Wrenches
***Optional accessories:
4-jaw chuck, 250 Drive plate, Steady rest, Follow rest
* AL-630B Series (Bed width: 550mm; Loading capacity: 2 tons)
* AL-800 Series (Bed width: 600mm; Loading capacity: 3 tons)
* AL-1000B Series (Bed width: 755mm; Loading capacity: 6 tons)
* AL-1250C Series (Bed width: 970mm; Loading capacity: 10 tons)
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
Container loaded: 4 sets / 20'GP
