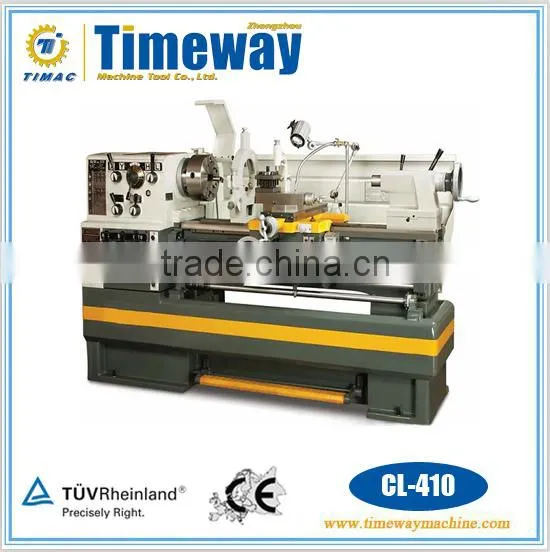

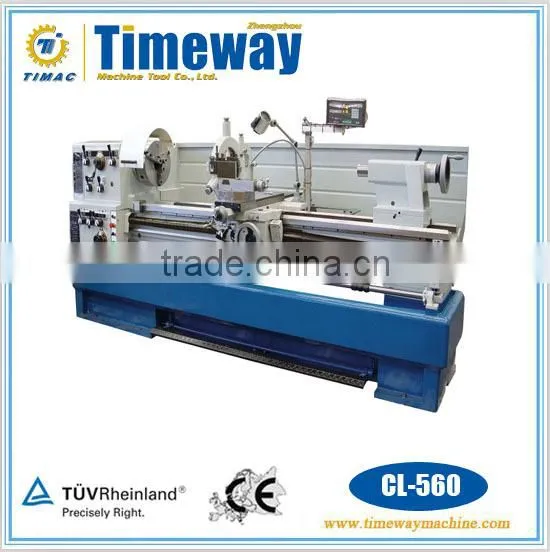

High Precision Gap Bed Lathe Machine For Sale with Specification
Features :
1. Three points support for spindle;
2. Powerful precision gear head lathes with cost effective;
3. Need not change any gears you can turn all the metric and inch thread indicating in chart;
4. Clutch in apron for safety and for changing apron feed direction without changing spindle running direction.
Standard Accessories:
3 jaw chuck, 4 jaw chuck, Changing gears, Dead center, Reduction sleeve, oil gun, Coolant system, Working light, Face plate, Steady rest, Follow rest, Chasing dial indicator
Optional Accessories :
Digital readout system (D.R.O), Quick change tool post & holders, Taper turning attachment
Parameter :
Model |
CL-410 |
CL-460 |
CL-510 |
CL-560 |
Max. swing over bed |
410mm |
460mm |
510mm |
560mm |
Max. swing over cross slide |
220mm |
270mm |
300mm |
350mm |
Swing in gap |
640mm |
690mm |
738mm |
788mm |
Distance between centers |
1000/1500/2000mm |
1500/2000mm |
||
Valid length of gap |
165mm |
200mm |
||
Width of bed |
300mm |
350mm |
||
Spindle nose |
D1-6 |
D1-8 |
||
Spindle bore |
58mm |
80mm |
||
Taper of spindle bore |
N0.6 Morse |
N0.7 Morse |
||
Range of spindle speed |
12 changes,25-2000r/min |
12 changes,25-1600r/min |
||
Max. travel of top slide |
128mm |
130mm |
||
Max. travel of cross slide |
285mm |
326mm |
||
Max. section of tool |
25×25mm |
|||
Pitch thread of lead screw |
6mm or 4T.P.I. |
|||
Longitudinal feeds range |
42kinds, 0.031-1.7mm/rev |
35kinds, 0.059-1.646mm/rev |
||
Cross feeds range |
42kinds, 0.014-0.784mm/rev |
35kinds, 0.020-0.573mm |
||
Metric threads range |
41kinds, 0.1-14mm |
47kinds, 0.2-14mm |
||
Inch threads range |
60kinds, 2-112TPI |
60kinds, 2-112TPI |
||
Diametrical threads range |
50kinds, 4-112DP |
50kinds, 4-112DP |
||
Module threads range |
34kinds, 0.1-7MP |
39kinds, 0.1-7MP |
||
Dia. of tailstock sleeve |
60mm |
75mm |
||
Travel of tailstock sleeve |
128mm |
180mm |
||
Taper of tailstock sleeve |
No.4 Morse |
No.5 Morse |
||
Power of main motor |
5.5kw |
7.5kw |
||
Power of coolant pump |
0.1kw |
|||
Overall dimension (L×W×H) |
220/275/325×108×137cm |
290/340×112×143cm |
||
Packing size (L×W×H) |
225/280/330×112×162cm |
296/346×113×182cm |
||
Net weight |
1670/1920/2070kg |
1720/1970/2120kg |
2335/2685kg |
2370/2720kg |
Gross weight |
1980/2265/2450kg |
2045/2330/2515kg |
2700/3070kg |
2740/3110kg |
