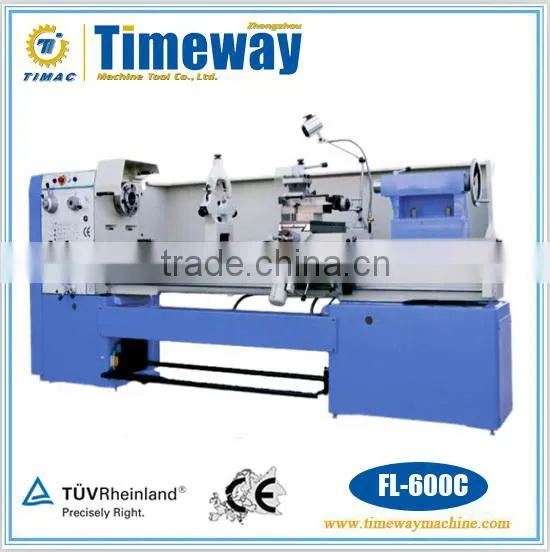

16"-26" High Speed Precision Gap Bed Lathe Machine
- 50 Set / Sets per Month
- Chiana Port
- T/T
- CK210B Small CNC Lathe, Siemens CNC, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- TP 35/45 Series Parallel Double Spindle Turning Center
- WF-450QTN Line Rail Inclined Bed Turret Lathe
- Prototype CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 400-660mm | Brand Name: | TIMAC |
Model Number: | FL-400B/C/D,FL-500B/C/D,FL-600B/C/D | Voltage: | as customer's request | Power(W): | 5.5/7.5kw |
Dimension(L*W*H): | 2450*1150*1750mm | Weight: | 1600/2000kg | Certification: | CE & ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
16"-26" High Speed Precision Gap-bed Lathe Machine for sale, Horizontal Lathe Machine Price
Features:
This series lathe is a fantastic model for small to medium size turning works. Even its basic configuration includes important accessories, such as 3 jaw chuck, steady and folllow rest, change gears etc. increasing the application area of this model significantly. For reducing the non-productive time, this model is also can equipped with 2 or 3 axis digital readout.
* Inductive hardened, polished gray cast-iron machine bed.
* Electro-mechanical foot brake reduces downtime significantly.
* State-of-the-art main spindle bearing with high-quality angular ball bearings.
* Large, hardened, polished gears.
Standard Accessories:
3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Oil gun, Coolant system
Working light, General tools, Foundation bolts, Operation manual(English edition).
Optional Accessories:
2-axes DRO, Quick change tool post, Taper turning attachment, CE execution
Parameter:
Specification | Unit | FL-400B/C/D | FL-500B/C/D | FL-600B/C/D | FL-660B/C/D | |
Capacity | Max.swing over bed | mm | 400 | 500 | 600 | 660 |
Max.swing over cross slide | mm | 240 | 325 | 360 | 420 | |
Max.swing in gap | mm | 540 | 630 | 730 | 790 | |
Effective length of gap | mm | 260 | ||||
Distance between centers | mm | 1000/1500/2000/3000 | ||||
Width of bed | mm | 360 | ||||
Headstock | Spindle bore | mm | B:65 C:80 D:103 | |||
Spindle nose |
| B:ISO-D6 C/D:ISO-D8 | ||||
Spindle taper |
| B:Metric70 C/D:Metric80 | ||||
Spindle speed(No.) | rpm | B:22-1800(15steps) C/D:24-1600(15steps) | ||||
Feeds | Longitudinal feeds range | mm/r | 66kinds 0.072-4.038 | |||
Cross feeds range | mm/r | 66 kinds 0.036-2.019 | ||||
Metric threads range | mm | 66kinds 0.5-28 | ||||
Inch threads range | T.P.I | 66kinds 1-56 | ||||
Module threads range | mm | 33kinds 0.5-3.5 | ||||
Diametral Threads range |
| 33kinds 8-56 | ||||
Carriage | Max.travel of top slide | mm | 130 | |||
Max.travel of cross slide | mm | 300 | ||||
Max.size of toolshank | mm | 25×25 | ||||
Tailstock | Dia.of tailstock sleeve | mm | 65 | |||
Taper of tailstock sleeve |
| MT5 | ||||
Max.travel of tailstock | mm | 120 | ||||
Motor | Main drive motor | kw | 5.5 | 7.5 | ||
Coolant pump motor | w | 125 | ||||
Packing | Center distance:1000mm | mm | 2450×1150×1750 | |||
1500mm | mm | 2950×1150×1750 | ||||
2000mm | mm | 3450×1150×1750 | ||||
3000mm | mm | 4450×1150×1750 | ||||
Net/gross | Center distance:1000mm | kg | 1600/2000 | 1650/2050 | 1750/2150 | 1850/2250 |
1500mm | kg | 1800/2200 | 1850/2250 | 1950/2350 | 2050/2450 | |
2000mm | kg | 1950/2350 | 2000/2400 | 2100/2500 | 2200/2600 | |
3000mm | kg | 2100/2500 | 2150/2550 | 2250/2650 | 2350/2750 |
