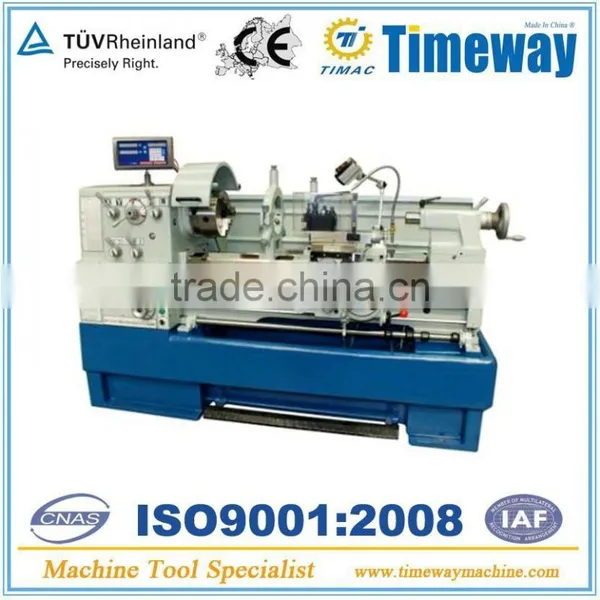

"460mm swing"China High Precision Metal Lathe Machine /Horizontal Gap bed Lathe Machine For Sale
Features:
1. The spindle system is high in rigidity and accuracy
2. There is no need for change gears.
3.The machine can turn about 200 kinds of metric, whitworth, module and D.P. threads.
4.An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and reliable.
5. A pedal braking device providing quick and effective stop while operating.
Satabdard Accessorise:
3-Jaw Chuck, 4-Jaw Chuck, Steady Rest, Follow Rest, Face Plate, DeadCenters, Chasing Dial Indicator,
Work Light,Change Gears Set, Reduction Sleeve, Coolant System, Full Length,Splash Guard, Brake System, Tool Box & Tools
Optional Accessories:
Leadscrew Guard,Drill Chuck+Arbor,Taper Turning Attachment,Digital Readout (2 Axis),
Quick Change Tool Post,Live Center, Chuck Guard .
Parameter:
Specification | T-1840 | T1860 |
Max. Length of workpiece | 1000mm(40") | 1500mm(60") |
Max. Swing over bed | 460mm(18") | |
Max. Swing over cross slide | 274mm(10-3/4") | |
Max. Swing over gap | 690mm(27-1/8") | |
Spindle nose | D1-6 | |
Diameter/Taper of spindle bore | 58mm(2-1/4"), NO.6Morse | |
Range of spindle speed | 12 steps, 25-2000r/min | |
Max. Travel of compound rest | 120mm(4-3/4") | |
Max. Travel of cross slide | 290mm(11-3/8") | |
Max. Section of tool | 25mm×25mm(1×1") | |
Longitudinal feeds range | 42kinds, 0.031-1.7mm/rev, (0.0011"-0.0633"/rev) | |
Cross feeds range | 42kinds, 0.014-0.784mm/rev, (0.00033"-0.01837"/rev) | |
Metric threads range | 41kinds, 0.1-14mm | |
Inch threads range | 60kinds, 2-112T.P.I. | |
Diametrical threads range | 50kinds, 4-112D.P. | |
Module pitches range | 34kinds, 0.1-7M.P. | |
Diameter/taper of tailstock sleeve | 60mm(2-5/16"), NO.4Morse | |
Travel of tailstock sleeve | 120mm(4-3/4") | |
Power of main motor | 4kw(5.4HP) | |
Coolant pump power | 0.1kw(1/8HP) | |
Net / gross weight | 1720/2045kg | 2020/2358kg |
Overall dimension(L×W×H) | 2250,2720×1120×1700mm | |
Packing size(L×W×H() | 2250,2800×1120×1700mm | |
