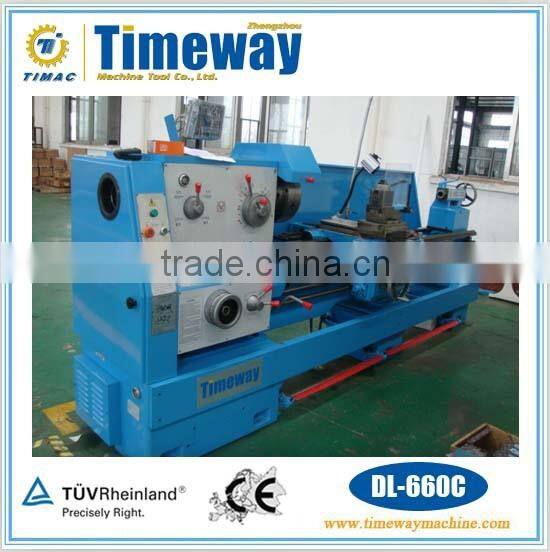

Horizontal Metal Working Lathe DL-660C
- 50 Set / Sets per Month
- Qingdao Port
- T/T
- CK210B Small CNC Lathe, Siemens CNC, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- TP 35/45 Series Parallel Double Spindle Turning Center
- WF-450QTN Line Rail Inclined Bed Turret Lathe
- Prototype CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 660mm | Brand Name: | TIMAC |
Model Number: | DL-660C | Voltage: | As required | Power(W): | 7.5kw |
Certification: | CE norms |
Product Description
Horizontal Metal Centre Lathe DL-660C
Features:
These lathes are mainly suitable for turning internal and external cylindrical,conical and other swing surfaces as well as various metric, inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways
1.Hardened by means of moddle-frequency induction method , the guideway surfaces of the beds are durable.
2.The construction rigidity and driving rigidity are higher.
3.With higher power utilization ratio, these lathes are suitable for heavy and high speed cutting operation.
4.There are three kinds of spindle bore (A:52mm; B:82mm; C:105mm) available for choice.
Parameter:
Specification | Unit | DL-400A | DL-500A | ||||
DL-400B | DL-500B | DL-610B | DL-660B | DL-800B | |||
DL-500C | DL-610C | DL-660C | DL-800C | ||||
Capacity | Center height | mm | 200 | 250 | 305 | 330 | 400 |
Max.swing over bed | mm | 400 | 500 | 610 | 660 | 800 | |
Max.swing over carriage | mm | 210 | 300 | 370 | 400 | 540 | |
Max.swing over gap* | mm | 630 | 720 | 830 | 880 | 1020 | |
Effective width of gap* | mm | 210 | |||||
Max.length of workpiece | mm | 750/1000/1500/2000/3000 | |||||
Width of bed | mm | 400 | |||||
Section of tool shank | mm | 25 x 25 | |||||
Spindle | Spindle bore | mm | A:52; B82; C:105 | ||||
Spindle taper | Morse No.6 | ||||||
Spindle speed | r.p.m | 11~1600(24steps) | |||||
Feed | Longitudinal feed range | mm/r | 0.028~6.33(64 kinds) | ||||
Cross feed range | mm/r | 0.014~3.16(64 kinds) | |||||
Threads | Range of metric threads(kinds) | mm | 1~192(44 kinds) | ||||
Range of inch threads(kinds) | T.P.I | 1~24(21 kinds) | |||||
Range of module threads(kinds) | mm | 0.25~48(39 kinds) | |||||
Range of diametric pitch threads(kinds) | D.P | 1~96(37 kinds) | |||||
Tailstock | Max.tailstock sleeve travel | mm | 150 | ||||
Tailstock sleeve diameter | mm | 75 | |||||
Tailstock sleeve taper | Morse No.5 | ||||||
Other | Main motor power | kw | 7.5 (10HP) |
***Standard items:
3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, dead center, oil gun, coolant system, working light,
general tools, foundation bolts, driving plate, chasing dial indicator, operation manual(English edition).
***Optional items:
Digital readout system (D.R.O), Quick change tool post & holders, Taper turning attachment
* DL-400 series
* DL-500 series
* DL-610; DL-660 series
* DL-800 series
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
Container loaded: 4 sets / 20'GP
If you have any queries please give us a
call or send us a message.
We will be happy to assist you!
