Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > " Load-bearing 10T " Heavy Duty Horizontal Lathe Machine

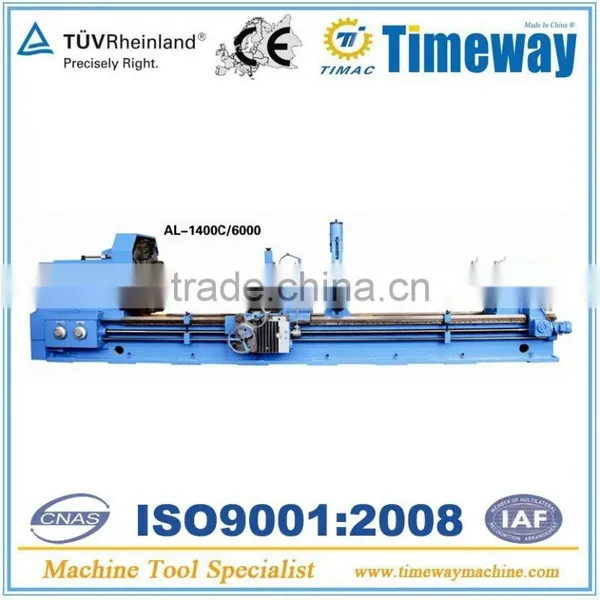

" Load-bearing 10T " Heavy Duty Horizontal Lathe Machine

Name: " Load-bearing 10T " Heavy Duty Horizontal Lathe Machine
Brand: TIMAC
SKU: 140796362
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

" Load-bearing 10T " Heavy Duty Horizontal Lathe Machine thumbnail-1

" Load-bearing 10T " Heavy Duty Horizontal Lathe Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 1250mm-1600mm

Brand Name TIMAC

Model Number AL-1250C / AL-1400C / AL-1600C

Voltage as customer's request

Power(W) 22 kw

Dimension(L*W*H) 6020*1995*2175mm

Weight depends on different models

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

Heavy Duty Horizontal Lathe Machine For Sale

(AL-1250C/AL-1400C/AL-1600C)

Product Description

Features :

1.This series heavy duty lathe adopts 970mm wide induction hardened and ground bed guide ways, so of

excellent stability, high rigidity, and with maximum bearings of 10 tons between centers.

2.The main spindle is of precision roller bearings 3-point supporting structure. Saddle guide ways with

Teflon belt coated. Rotating tailstock quill structure to minimize friction and heat generation.
3.These machines are suitable for various turning works, such as turning of external and internal cylindrical

surfaces, end faces, and turning of metric or inch threads and diametrical pitch threads, etc.
4.Motorized short taper turning could be done by the top slide independently, and long taper's motorized

turning could be done by top slide combined with longitudinal feed. Further more, these machines can

also carry out drilling, trepanning and boring processes, etc.

Parameter :

Specification			Al-1250C	AL-1400C	AL-1600C
Capacity	Swing over bed		1250	1400	1600
	Swing over cross slide		865	1010	1210
	Max.length of workpiece		3000/4000/5000/6000/8000/10000/12000/14000/16000/18000
	Max.length of turning		2800/3800/4800/5800/7800/9800/11800/13800/15800/17800
	Width of bed		970
	Max.torque of spindle		12590
	Max.cutting force		45000
	Max.force of logitudinal		18000
	Max.weight of workpiece		10000
Spindle	Dia.of spindle bore		130
	Taper of spindle		metric140
	No.of forward turning		21 kinds
	No.of reverse turning		12 kinds
	Spindle speed	Forward	3.15-315
		Reverse	3.5-291
Feed motion	No.of feeds per revolution		(Longitudinal/tranverse)56/56
	Feed per revolution	Longutudinal	0.1-12(0.004"-0.473"
		Tranverse	0.05-6(0.002"-0.236")
		Upper tool-post	0.025-3(0.001"-0.118")
	No.and range of metric thread		44kinds:1-120
	No.and range of inch thread		31kinds:28-1/4
	No.and range of module thread		45kinds:0.5-60
	No.and range of diametrical thread		38kinds:1/2-56
Tool post	Size of tool shank		45×45
	swing range of tool post		±90º
	Max.travel of cross slide		650
	Max.travel of top slide		300
	Rapid of tool post		Longitudianl:3740 Tranverse:1870 Top slide:935
Tailstock	Dia.of tailstock quill		220
	Travel of tailstock quill		300
	Taper hole of tailstock quill		Morse No.6#
Others	Main motor power		22
	Power of tool post rapid move motor		1.5
	Power of cooling pump		0.15
Overall dimension	Length		6020/7020/8020/9020/11020/13020/15020/17020/19020/21020
	Width		1995
	Height		2175	2325	2525

Standard Accessories:

4 jaw chuck, Steady rest, Follow rest, Dead center, Oil gun, Coolant system, Working light, General tools, Foundation bolts, Operation manual(English edition)

Optional Accessories:

2/3-axes DRO, Taper turning attachment, Grinding attachment.
