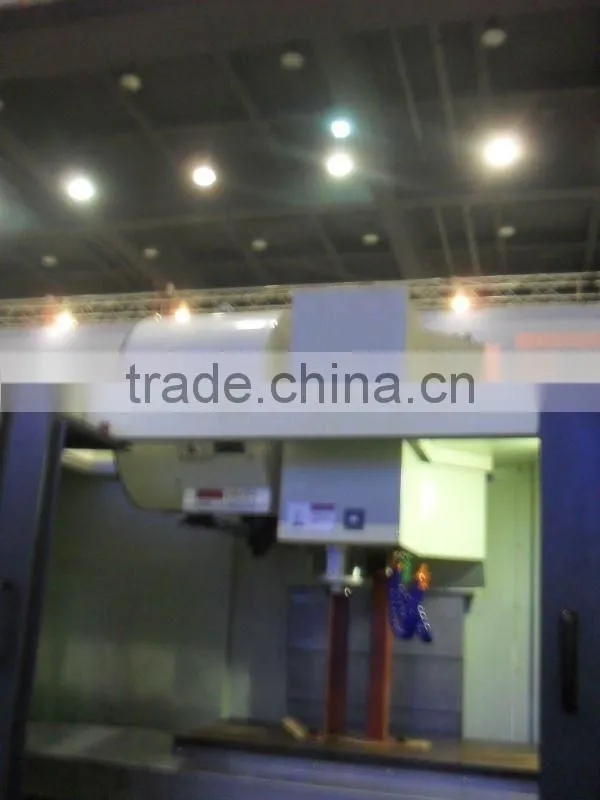

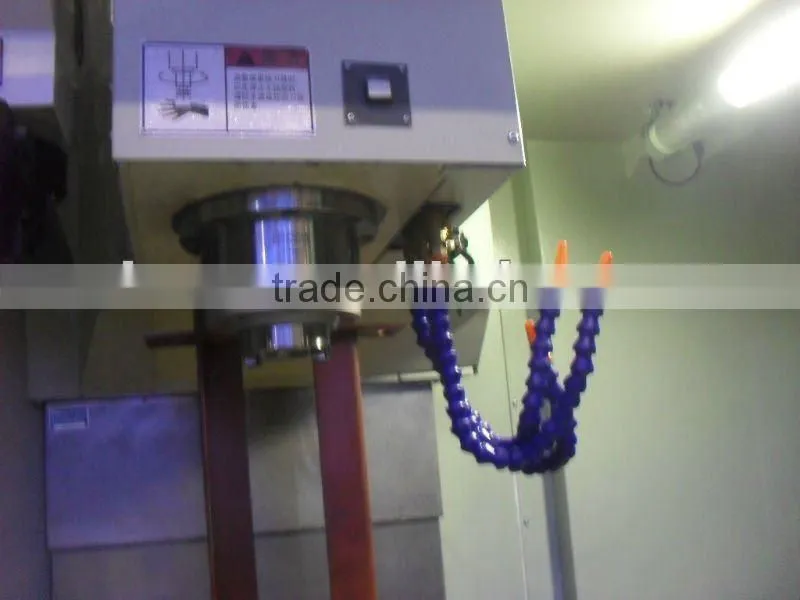

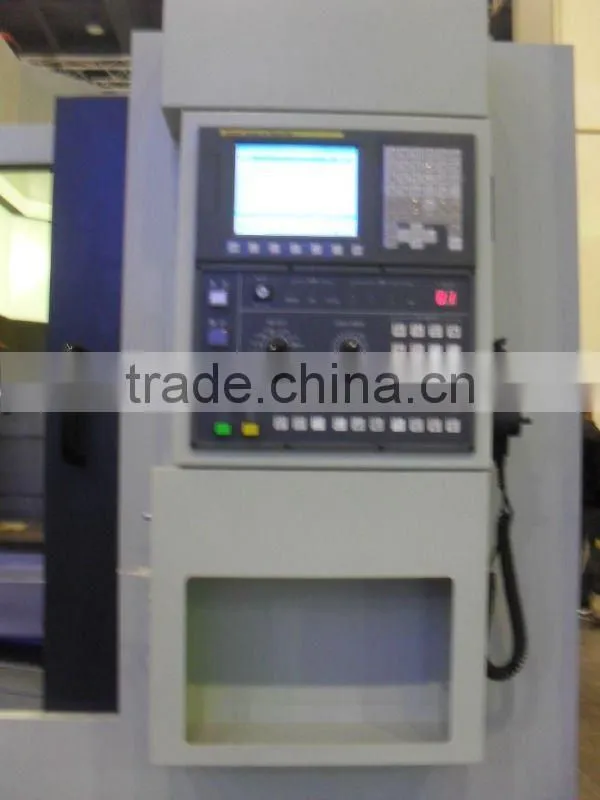

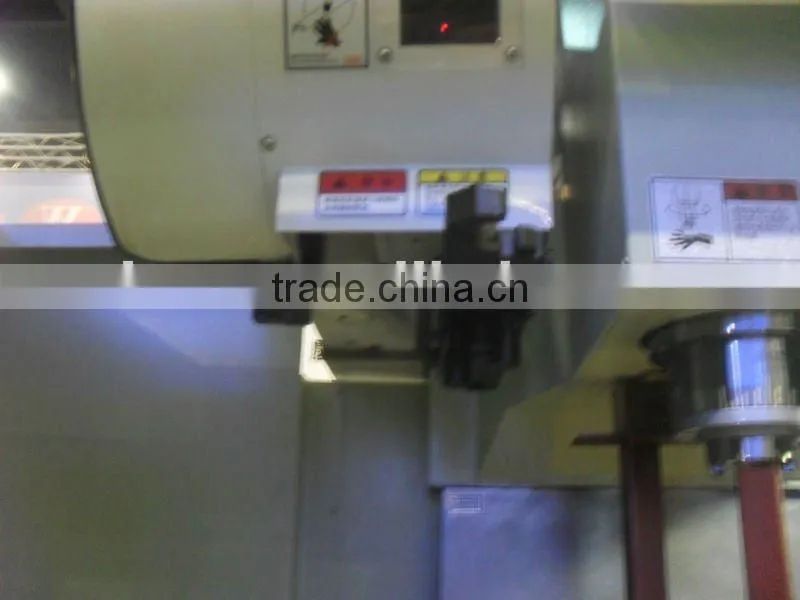

Vertical CNC Machining Center VM600L With Table Size 750x400mm

Name: Vertical CNC Machining Center VM600L With Table Size 750x400mm
Brand: TIMAC
SKU: 140796320
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Henan, China

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Henan, China

Brand Name TIMAC

Model Number VM600L

Specifications

CNC vertical machining center;
Precision linear roller ways;
Table size 750x400 mm;
X Y Z travel 600, 400, 480mm;

CNC VERTICAL MACHINING CENTER

Features:
1. Wide base desgn with X,Y and Z three sets of precision linear roller ways for the machine.

2. Ball screws are pre-stretched to eliminate back play.

3. Suitable for bath rough and finishing cut.

Specification		VM600L
Travel	X /Y/Z travel	600/400/480mm
	Distance between spindle center and column guide way	484 mm
	Distance between spindle end and table	90~570 mm
Table	Table size	750×400 mm
	Max. table load	450 Kg
	T-slot (width×number×space)	18×3×110mm
Spindle	Taper bore of spindle	B-T40
	Spindle speed	8000 rpm
	Main motor power	7.5/11KW
	Cutter removal from spindle	pneumatic
Feed	X,Y travel speed	0-20m/min
	Z travel speed	0-20m/min
	X,Y,Z Motor torque	12Nm
	Repeataqbility(X/Y/Z)	±0.003mm
Tool changing system	Tool number	Horizonal type: 16, Vertical type: 12
	Max. tool size(with adjacent tool)	Ø85 mm(Horizonal type) Ø110 mm(Vertical type)
	Max. tool size(Without adjacent tool)	Ø130 mm(Horizonal type) Ø220mm(Vertical type)
	Max. tool length	350mm(Horizonal type), 250mm(Vertical type)
	Max. tool weight	8kg(Horizonal type), 8kg(Vertical type)
	Tool changing time(cut to cut)	2s(Horizonal type)
Other	Min. Input(X/Y/Z)	0.001 mm
	Overalldimensilns(L×W×H) (With automatic conveying)	3380×2060×2350mm
	Net weight	3900kg
