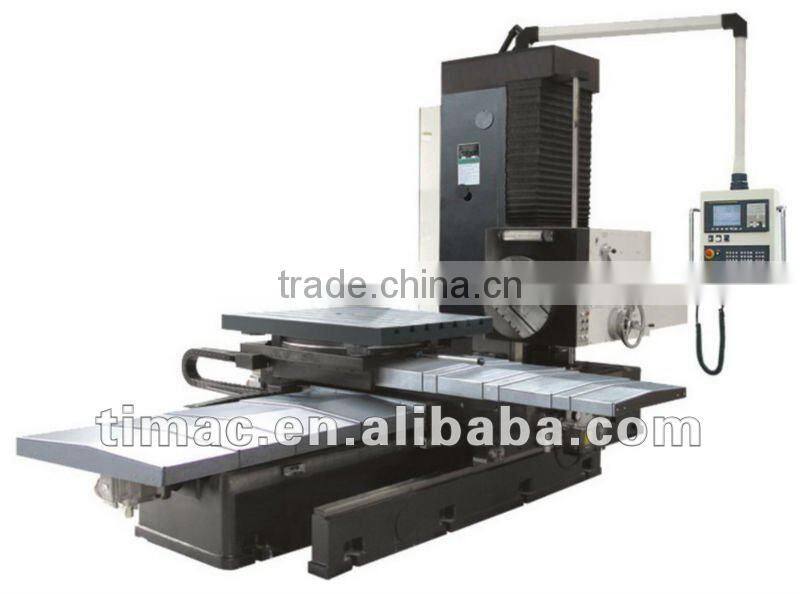

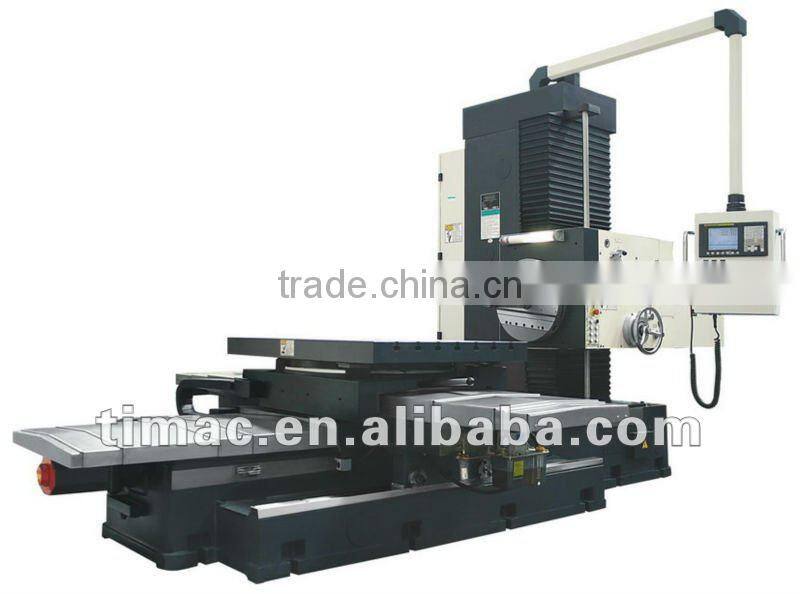

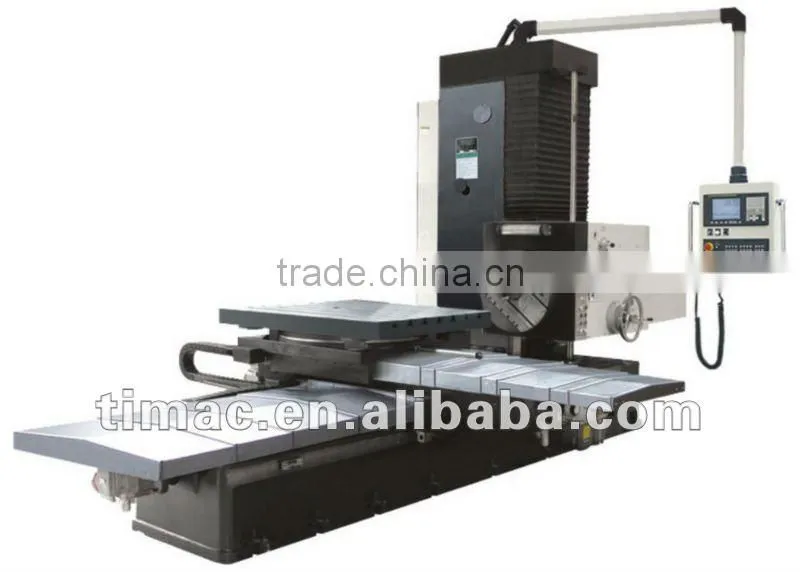

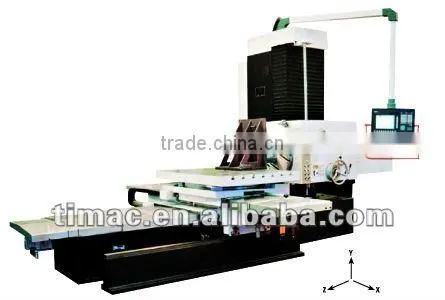

CNC HORIZONTAL BORING MILLING MACHINE
Features:
1. This series machines includes TXK-100B, TXK-100C, and TXK-100D three types.
2. The worktable with manual swing structure, at 0 °, 90 °, 180 °, 270 ° at four positions with a pin positioning, high positioning accuracy, the table locking manually clamp structure.
3. X, Y, Z axis adopt imported ball screw, smooth motion and high accuracy.
4. The headstock adopts gear driving structure, greatly improving the spindle output, transmission, torque, maximum torque the 1100N.m, maximum speed 1100rpm.
5. Shank MAS403 • BT50 standards, pull stud using MAS403 P50T-1.
6. CNC system are FANUC 0i or SIEMENS 802DSL for choice, AC servo motor drive, high-performance advanced precision.
7. Machine configuration flat rotating disk, extended use, suitable for plane milling and holes of box parts.
TXK-100B TXK-100C TXK-100D
Specification |
Unit |
TXK-100B |
TXK-100C |
TXK-100D |
|
Worktable |
Worktable size(L×W) |
mm |
1320×1010 |
1320X1010 |
1320X1010 |
Max. loading of worktable |
kg |
5000 |
5000 |
5000 |
|
Size of T-slot |
mm |
7-22-125 |
7-22-125 |
7-22-125 |
|
Machining travel |
Travel of table (X) |
mm |
850 |
1200 |
1800 |
Travel of headstock (Y) |
mm |
900 |
900 |
1200 |
|
Travel of table (Z) |
mm |
1300 |
1300 |
1300 |
|
Travel of spindle (W) |
mm |
550 |
550 |
550 |
|
Distance from spindle center to worktable |
mm |
5-905 |
5-905 |
5-1205 |
|
Max. boring diameter |
mm |
240 |
240 |
240 |
|
Max. machining diameter for facing plate |
mm |
630 |
630 |
630 |
|
Max. drilling diameter |
mm |
50 |
50 |
50 |
|
Positioning accuracy |
X |
mm |
0.032 |
0.04 |
0.04 |
Y |
mm |
0.032 |
0.032 |
0.04 |
|
Z |
mm |
0.04 |
0.04 |
0.04 |
|
Repeat positioning accuracy |
X/Y/Z |
mm |
0.015 |
0.015 |
0.015 |
Spindle |
Spindle diameter |
mm |
110 |
110 |
110 |
Spindle speed range |
rpm |
12-1100 |
12-1100 |
12-1100 |
|
Spindle inner taper |
ISO No.50 |
ISO No.50 |
ISO No.50 |
||
Max. weight of tools |
kg |
18 |
18 |
18 |
|
Facing plate |
Diameter of facing plate |
mm |
550 |
550 |
550 |
Travel of facing plate |
mm |
160 |
160 |
160 |
|
Speed range of facing plate |
rpm |
4-125 |
4-125 |
4-125 |
|
Feeding |
Rapid speed (X/Y/Z) |
mm/min |
5000 |
5000 |
5000 |
Rapid speed (W) |
mm/min |
2060 |
2060 |
2060 |
|
Rapid speed (Facing plate's rack) |
mm/min |
1370 |
1370 |
1370 |
|
Feeding speed (X/Y/Z) |
mm/min |
5-1000 |
5-1000 |
5-1000 |
|
Feeding speed (W) |
mm/min |
0.5-1000 |
0.5-1000 |
0.5-1000 |
|
Feeding speed (Facing plate's rack) |
mm/min |
0.2-330 |
0.2-330 |
0.2-330 |
|
Weight of machine |
kg |
13000 |
14000 |
17000 |
|
Total electric capacity |
KVA |
35 |
35 |
35 |
|
Overall dimensions(L×W×H) |
mm |
5349x2648x2889 |
5354x2890x2889 |
5347x3704x3133 |
|
