Specifications
CNC Fresadora & Router1.Worktable size:330*1370mm
2.Spindle speed:40~6000 r.p.m

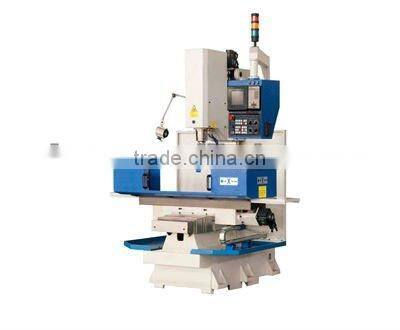

CNC Milling Machine KBM-1654
Feature:
| CNC Fresadora & Router |
1. The spindle system features strong rigidity, it's suitable for rough machining and force cutting; hence improve machining efficiency, features long travel, heavy loading. It's mainly used for boring and milling big surface and big case parts. |
2. The machine can be used for drilling, boring, lathing, and milling. The machine is adopt rectangular guide ways, features strong rigidity and high accuracy. |
3. Radial tool holder of facing head on the headstock head for radial machining |
4. Optional digital readout device, reading accuracy 0.01 mm, positioning accuracy 0.05 mm |
Parameter:
| Model | KBM-1354B | KBM-1654 | KBM-2063 | KBM-2473 | |
| Table size (LxW/mm) | 1370x330 | 1370x406 | 1600x510 | 1854x610 | |
| Table loading capacity(kg) | 400 | 800 | 1200 | 1500 | |
| T-slots(W/mmxNO) | 16x3 | 16x5 | 18x5 | 18x5 | |
| X-axis(mm) | 800 | 1000 | 1200 | 1500 | |
| Y-axis(mm) | 450 | 480 | 700 | 700 | |
| Z-axis(mm) | 480 | 600 | 600 | 700 | |
| Max.move speed(mm/min) | 8000 | 8000 | 10000 | 10000 | |
| Max.feed speed(mm/min) | 3000 | 3000 | 4000 | 4000 | |
| Spindle speed(rpm/min) | RANGE:40~6000 | ||||
| Spindle nose | BT40 | BT40 | BT40/ BT50 | BT40 /BT50 | |
| Spindle motor(kw) | 5.5 | 7.5 | 7.5 | 7.5 | |
| Servo motor(kw) | X/Y:1.0,Z:1.5 | X/Y/Z:1.5 | X/Y/Z:2.0 | X/Y/Z:2.0 | |
| Spindle quill diameter(mm) | 120 | 150 | 150/160 | 150/160 | |
| Spindle to column surface(mm) | 450 | 520 | 640 | 695 | |
| X-axis(mm) | 32x5p4Double nuts | 32x5p4Double nuts | 40x10p4Double nuts | ||
| Y-axis(mm) | 32x5p4Double nuts | 40x5p4Double nuts | 40x10p4Double nuts | ||
| Z-axis(mm) | 32x5p4Double nuts | 40x5p4Double nuts | 40x10p4Double nuts | ||
| Positioning accuracy | ±0.015mm | ±0.015mm | ±0.015mm | ±0.015mm | |
| Repeatability | ±0.008mm | ±0.008mm | ±0.008mm | ±0.008mm | |
| Packing dimension(mm) | Semi-close cover | 2250x2280x2450 | 2500x2280x2650 | 2900x2950x2800 | 2900x3150x2900 |
| Close cover | 2950x2280x2450 | 3200x2280x2650 | 4500x2750x2800 | / | |
| Machine weight(kg) | Semi-close cover | 2600 | 3800 | 5000 | 6000 |
| Semi-close cover | 3400 | 4720 | 6400 | / | |
***Standard accessories:
*Semi-isolated table shield; *Cutting fluid circulation system; *Auto. Lubrication system; *Spindle air flow; *Working light; *Level adjusting screw and block; *Clamping apparatus |
***Optional accessories:
*The Forthaxis revolving table; *Vertical arm type ATC; * Full closed safety cover *Cutter length measuring unit; *Edge finder; *Shank |
