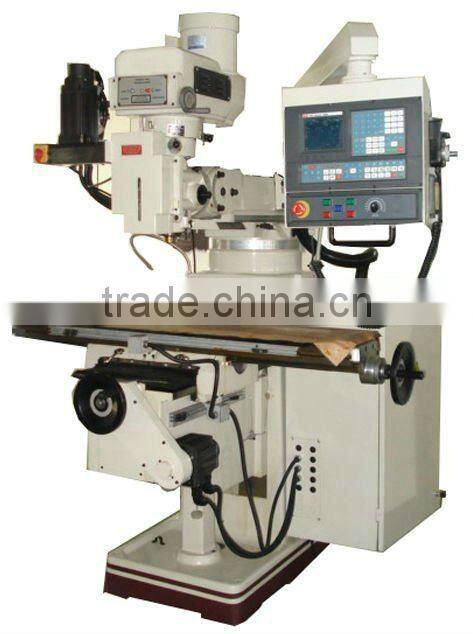

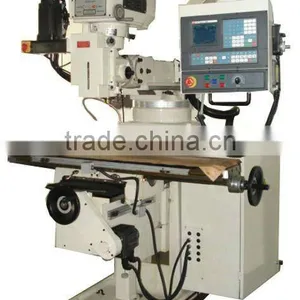

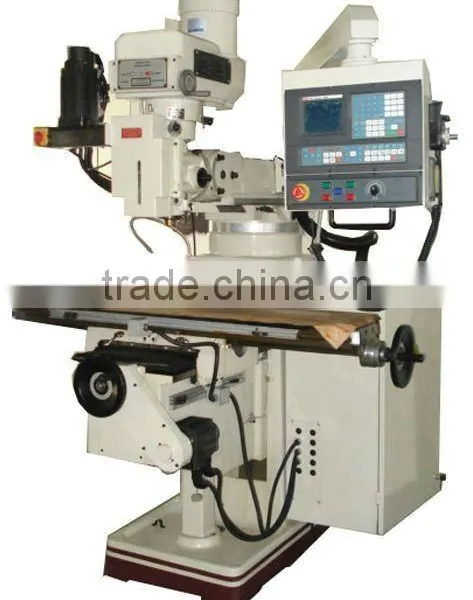

254*1270mm Table Size / Economical Type CNC Mill Machine KTM-250

Specifications

CNC Mill
1.Worktable size: 254*1270mm
2.Spindle speed: 50HZ:60-4500; 60HZ:80-5440

Economical Type CNC Milling  Machine KTM-250

 Introduction:



We, " Timeway Machine " offer wide range of Milling Machine as below:



1.H/V Head Milling Drilling Machine

2.H/V Head Turret Milling Machine

3.Vertical Turret Milling Machine

4.Vertical / Horizontal Knee-Type Milling Machine

5.Universal Knee-Type Milling Machine

6.Ram-Type Milling Machine

7.Bed-Type Milling Machine

8.Universal Tool Milling Machine

9.CNC Milling Machine



All machines are in conformity to CE norms.



Feature:



CNC Mill

1. The spindle system features strong rigidity, it's suitable for rough machining and force cutting; hence improve

    machining efficiency, features long travel, heavy loading. It's mainly used for boring and milling big surface and

    big case parts.

2. The machine can be used for drilling, boring, lathing, and milling. The machine is adopt rectangular guide ways,

    features strong rigidity and high accuracy.

3. Radial tool holder of facing head on the headstock head for radial machining



Parameter:



Specification			Unit	KTM-250
Table size			mm	254x1270   /  254x1370
T slots				3x16
Table loading			kg	280
X axis(table longitudinal move)travel			mm	750/850
Y axis(table cross move)travel			mm	400
Z axis(Quill move)travel			mm	127
X/Y/Z axis rapid feed			mm/min	5000mm/min
X/Y/Z axis servo motor			Kw	1
Knee vertical travel			mm	400
Ram travel			mm	465
Distance from spindle table			mm	0-400
Milling head	Spindle speed	Standard:16steps	r.p.m	50HZ:60-4500 60HZ:80-5440
		Optional: Variable		65-4200
	Spindle taper			Standard:R8/Optional:ISO40
	Motor power		HP	3HP
	Head rotating	Swiveling	°	90°
		Tilting	°	45°
CNC system				GSK/FANUC/SIEMENSE/MITSUBISH/FAGOR
Package size			cm	190x200x223
G.W			kg	1500
Standard accessories				Optional accessories
Draw bar, Tool box and tools, Working  lamp, Electro lubricating pump, Hung  up control panel, Cooling system, Oil  collecting plate,  Plastic splashing guard.				Air draw bar,  Machine vise,  Collets and chuck,   Universal clamping kit
