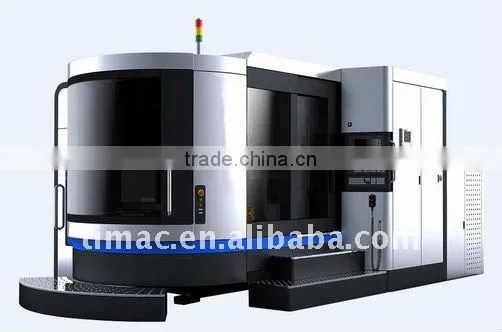

High Precision CNC Horizontal Machining Center

Name: High Precision CNC Horizontal Machining Center
Brand: TIMAC
SKU: 140796312
Availability: InStock

US$ 100,000 - 500,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

Place of Origin:

Henan, China

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

Place of Origin Henan, China

Brand Name TIMAC

Model Number HMC63, HMC630

Specifications

1. Horizontal machining center;
2. The torque motors;
3. FANUC 31i-MA;
4. Quick and novelty ATC

CNC Horizontal Machining Center

Features:

1. X,Y,Z axes separately use double screws to drive synchronized;

2. The torque motors are used to drive table;

3. Motor spindle with high property is used;

4. Quick and novelty ATC system;

5. Box in box structure;

6. Advanced CNC function with the FANUC 31i-MA;

Specification	Unit	HMC63	HMC630
Table size (WxL)	mm	630x630	630x630
3-axis travel (X/Y/Z)	mm	900x650x700	900x650x700
Distance from spindle center to table	mm	150-800	150-800
Distance from spindle nose to table	mm	160-860	160-860
Table change time	sec	≤5	≤5
Max. table load	kg	1200	1200
Spindle speed	rpm	20-20000	60-6000
Taper of spindle	-	HSKA63	BT50
Rapid speed (X,Y,Z)	m/min	42	30
Cutting feed rate (X,Y,Z)	m/min	20	10
Table speed	rpm	0-100	0-100
Maganize capacity	pcs	48(60*)	32
Tool change time (T-T)	sec	≤2	≤2
Spindle motor (cont/30min)	kw	18.5/22	18.5/22
Positioning accuarcy	mm	0.007	0.01
Repeat positioning accuracy	mm	0.004	0.006
Turn table positioning accuracy		8"	8"
Turn table repeat positioning accuracy		4"	4"
Overall size	mm	4450x3200x2626	4450x3200x2626
