Home > Products > CNC Milling Machine > CNC Bed-type Milling Machine

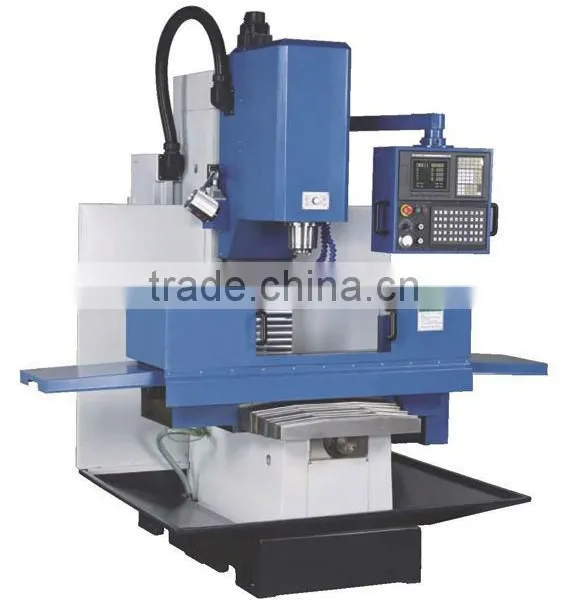

CNC Bed-type Milling Machine
USD $15,000 - $25,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- China port
- T/T Credit Card
You May Like
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Benchtop CNC Mill, desktop cnc mill, Compact CNC, educational cnc, prototype cnc, cnc for school, training cnc
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Brand Name: | TIMAC | Model Number: | KBM7136C |
Type: | Vertical | CNC or Not: | CNC | Voltage: | As require |
Power(W): | 5.5KW | Dimension(L*W*H): | 2220x1850x2280mm | Weight: | 2500kg |
Certification: | TUV | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specification | Unit | KBM7136C | |
Spindle taper | BT40 | ||
X-axis travel | mm | 900 | |
Y-axis travel | mm | 350 | |
Z-axis travel | mm | 500 | |
Maximum spindle speed | rpm | 200-4000(stepless) | |
Distance spindle nose to table | mm | 100-600 | |
Spindle center to column guideway surface distance | mm | 460 | |
X / Y axis rapid feed | mm/min | 5000 | |
Z-axis rapid feed | mm/min | 4000 | |
Cutting feed | mm/min | 1-2000 | |
Table area | mm | 1250×360 | |
Maximum load capacity | kg | 300 | |
Worktable "T" slots | Number of slots | 3 | |
Width | mm | 18 | |
Space | mm | 80 | |
Main motor power | kW | 5.5 | |
Machine weight | kg | 2500 | |
Overall dimensions | mm | 2220×1850×2280 |
Standard:
GSK983MA CNC controller, BT40 spindle unit
Optional:
FANUC/SIEMENS/FAGOR CNC controller, China make CNC controller
