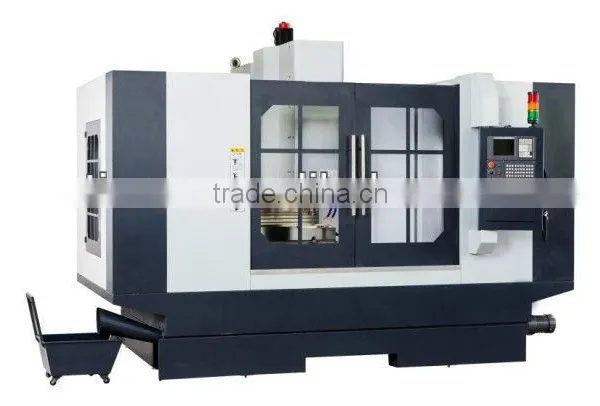

Heavy Duty Large Size Strong Cutting CNC Milling Machine

FOB Price

USD $60,000 - $100,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Brand Name:	TIMAC	Model Number:	VMK1370A
Type:	Vertical	CNC or Not:	CNC	Voltage:	As require
Power(W):	15/18.5KW	Dimension(LWH):	4120x3550x3020mm	Weight:	15000kg
Certification:	TUV	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas

Specification		Unit	VMK1370A
Spindle taper			BT50
X-axis travel		mm	1300
Y-axis travel		mm	680
Z-axis travel		mm	700
Maximum spindle speed		rpm	100~750,750~5000
Distance spindle nose to table		mm	140-840
Spindle center to column guideway surface distance		mm	800
X / Y axis rapid feed		mm/min	15000
Z-axis rapid feed		mm/min	12000
Cutting feed		mm/min	1-5000
Table area		mm	1600×650
Maximum load capacity		kg	1500
Worktable "T" slots	Number of slots		5
	Width	mm	22
	Space	mm	125
Main motor power		kW	15/18.5
Machine weight		kg	15000
Overall dimensions		mm	4120×3550×3020

Standard:

FANUC 0i mate MD CNC controller, BT50 spindle, Full-closed protection guard, Auto. chip conveyor

Optional:

Siemens 828D CNC controller, China make CNC controller, 24 station auto. tool magazine(ATC)
