Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Large Size Strong Cutting CNC Milling Machine

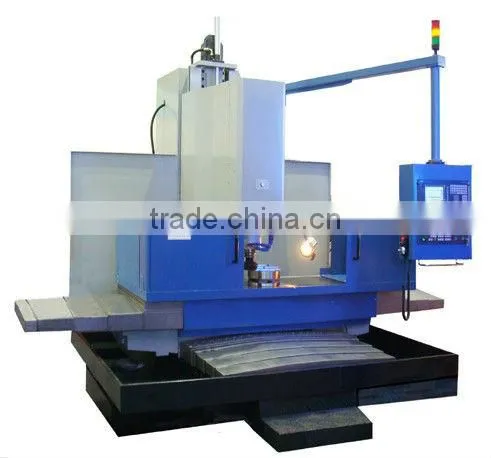

Large Size Strong Cutting CNC Milling Machine
US$ 50,000 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
VMK1370
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
TIMAC
Model Number
VMK1370
Type
Vertical
CNC or Not
CNC
Voltage
As require
Power(W)
15KW
Dimension(L*W*H)
3870x3180x3550mm
Weight
10000kg
Certification
TUV
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
| Specification | Unit | VMK1370 | |
| Spindle taper | BT50 | ||
| X-axis travel | mm | 1300 | |
| Y-axis travel | mm | 680 | |
| Z-axis travel | mm | 700 | |
| Maximum spindle speed | rpm | 4000 | |
| Distance spindle nose to table | mm | 160-860 | |
| Spindle center to column guideway surface distance | mm | 800 | |
| X / Y axis rapid feed | mm/min | 15000 | |
| Z-axis rapid feed | mm/min | 12000 | |
| Cutting feed | mm/min | 1-5000 | |
| Table area | mm | 1600×650 | |
| Maximum load capacity | kg | 1500 | |
| Worktable "T" slots | Number of slots | 5 | |
| Width | mm | 22 | |
| Space | mm | 125 | |
| Main motor power | kW | 15/18.5 | |
| Machine weight | kg | 10000 | |
| Overall dimensions | mm | 3870×3180×3550 | |
Standard:
FANUC 0i mate MD CNC controller, BT50 spindle, Semi-closed protection guard
Optional:
Siemens 828D CNC controller, China make CNC controller, The-4th axis
