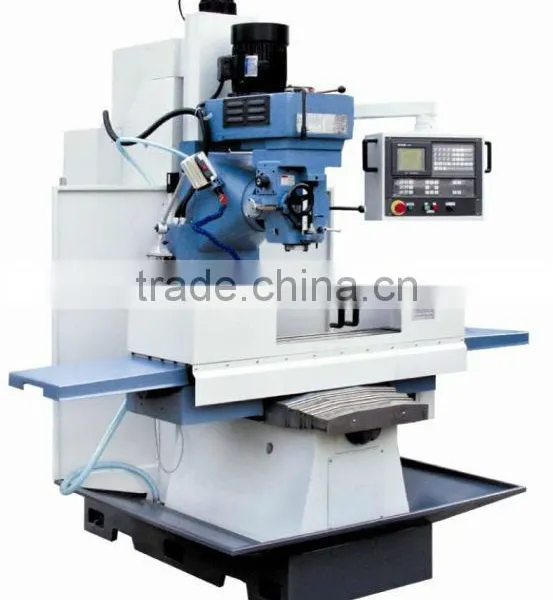

CNC Bed-type Vertical Turret Milling Machine
US$ 11,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
KBM7136B
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Bed-type Milling MachineUS$ 15,000 - 25,000MOQ: 1 Set -
Heavy Duty Large Size Strong Cutting CNC Milling MachineUS$ 60,000 - 100,000MOQ: 1 Set
-
Large Size Strong Cutting CNC Milling MachineUS$ 50,000 - 70,000MOQ: 1 Set
-
Strong Cutting CNC Milling MachineUS$ 30,000 - 50,000MOQ: 1 Set
-
CNC MILLING MACHINEUS$ 5,000 - 30,000MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
KBM7136B
Type
Vertical
CNC or Not
CNC
Voltage
As require
Power(W)
3.7KW
Dimension(L*W*H)
2220x1850x2280mm
Weight
2200kg
Certification
TUV
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
| Specification | Unit | KBM7136B | |
| Spindle taper | 7:24 ISO40 | ||
| X-axis travel | mm | 900 | |
| Y-axis travel | mm | 350 | |
| Z-axis travel | mm | 460 | |
| Maximum spindle speed | rpm | 63-2917/10steps | |
| Distance spindle nose to table | mm | 130-590 | |
| Spindle center to column guideway surface distance | mm | 450 | |
| X / Y axis rapid feed | mm/min | 5000 | |
| Z-axis rapid feed | mm/min | 4000 | |
| Cutting feed | mm/min | 1-2000 | |
| Table area | mm | 1250×360 | |
| Maximum load capacity | kg | 300 | |
| Worktable "T" slots | Number of slots | 3 | |
| Width | mm | 18 | |
| Space | mm | 80 | |
| Main motor power | kW | 3.7 | |
| Machine weight | kg | 2200 | |
| Overall dimensions | mm | 2220×1850×2280 | |
Standard:
GSK983MA CNC controller, ISO40 spindle Taiwan turret milling head
Optional:
FANUC/SIEMENS CNC controller, China make CNC controller
