CNC Horizontal Spiral Groove Milling Machine

Name: CNC Horizontal Spiral Groove Milling Machine
Brand: TIMAC
SKU: 140796186
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 10,000 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

SMK-250

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number SMK-250

Type Horizontal

CNC or Not CNC

Voltage 380V 50Hz

Power(W) 7.5kw(milling head)

Dimension(L*W*H) 13090x2340x2260mm

Weight 19000kg

Certification CE ISO

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

CNC Horizontal Spiral Groove Milling Machine

SMK-250

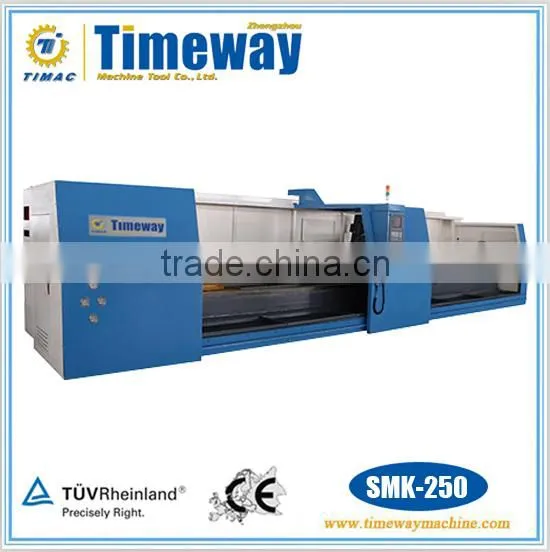

Main Outlook

Product Description

Features

Adopting famous opened CNC system with four axes combined action.
Adopting large span and high strength cast iron and flat bed so that the machine has a high rigidity and good property of anti-vibration.
The milling head is driven by spindle motor, and the machine adopts the transmission of synchronous belt and gear and frequency converting motor so that the machine has enough power and good rigidity.
Z-axis adopts precise ground slant rack transmission, electric double gap-eliminating structure so as to guarantee the position accuracy.
The workpiece clamping device has a special hydraulic structure so as to avoid decreasing process accuracy and unable adjustment of the workpiece due to the abrasion of the clamping blocks.

Application

The machine is specially designed for processing the rotor parts of screw drilling stems in the oil field industry, adopting hard alloy multi-tooth cutter head, the machine can perform envelope machining of the spiral surface of the workpiece by once formed, it is the main production equipment in this industry. The machine can also mill all kinds of screws with irregular section in other industries.

Technical Parameter
