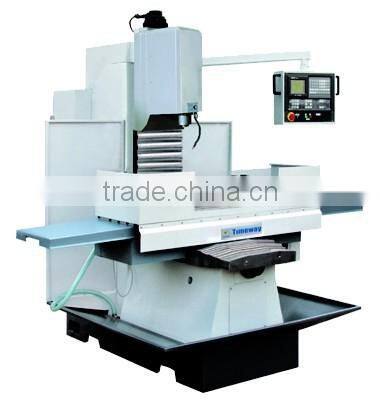

CNC Bed-type Vertical Milling Machine

Name: CNC Bed-type Vertical Milling Machine
Brand: TIMAC
SKU: 140796192
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 15,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

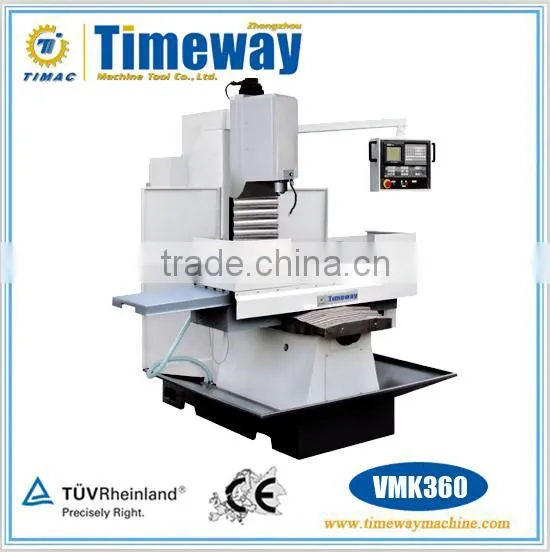

VMK360

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number VMK360

Type Vertical

CNC or Not CNC

Voltage 380V 50Hz

Power(W) 5.5kw(spindle)

Dimension(L*W*H) 2220x1850x2280mm

Weight 2500kgs

Certification CE ISO

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

CNC Bed-type Vertical Milling Machine

VMK1050 VMK745 VMK360 VMK350

Main Outlook

Product Description

Standard Accessories

Optional Accessories

Technical Parameter

Specification	Unit	VMK1050	VMK745	VMK360	VMK350
Travel
X-axis travel	mm	1000	700	900	650
Y-axis travel	mm	500	450	350	350
Z-axis travel	mm	580	550	500	500
Spindle nose to worktable surface	mm	140-720	120-670	100-600	100-600
Spindle center to column guideway face	mm	545	460	460	375
Worktable
Worktable size	mm	1600x500	1000x450	1250x360	950x350
T-slot (Number/width/dis.)	mm	5-18-80	3-18-125	3-18-80	3-14-100
Max. weight of workpiece	kg	600	600	300	400
Spindle
Spindle speed	rpm	80-3500	60-6000	200-4000	80-6000
Spindle taper	-	BT50	BT40	BT40	BT40
Spindle motor power	kw	11	5.5	5.5	4
Feed
X/Y-axis rapid feeding speed	m/min	10	12	5	12
Z-axis rapid feeding speed	m/min	8	10	4	10
Feeding speed	mm/min	1-5000	1-5000	1-2000	1-5000
Accuracy
X/Y/Z-axis positioning accuracy	mm	0.02/0.016/0.016	0.016/0.012/0.012	0.032/0.025/0.025	0.025/0.02/0.02
X/Y/Z-axis repositioning accuracy	mm	0.012/0.008/0.008	0.01/0.008/0.008	0.018/0.015/0.015	0.015/0.01/0.01
Others
Guideway type	-	Hard Guideway (X/Y/Z) Y-axis four guideways	Rectangular hard guideway (X/Y/Z)	Dovetail guideway (X) Rectangular hard guideway (Y/X)	Dovetail (X) Rectangular (Y/Z)
N.W	kg	6700	3400	2500	2900
Overall dimension (LxWxH)	mm	3500x2450x2400	210024502300	2220x1850x2280	2380x1950x2300
