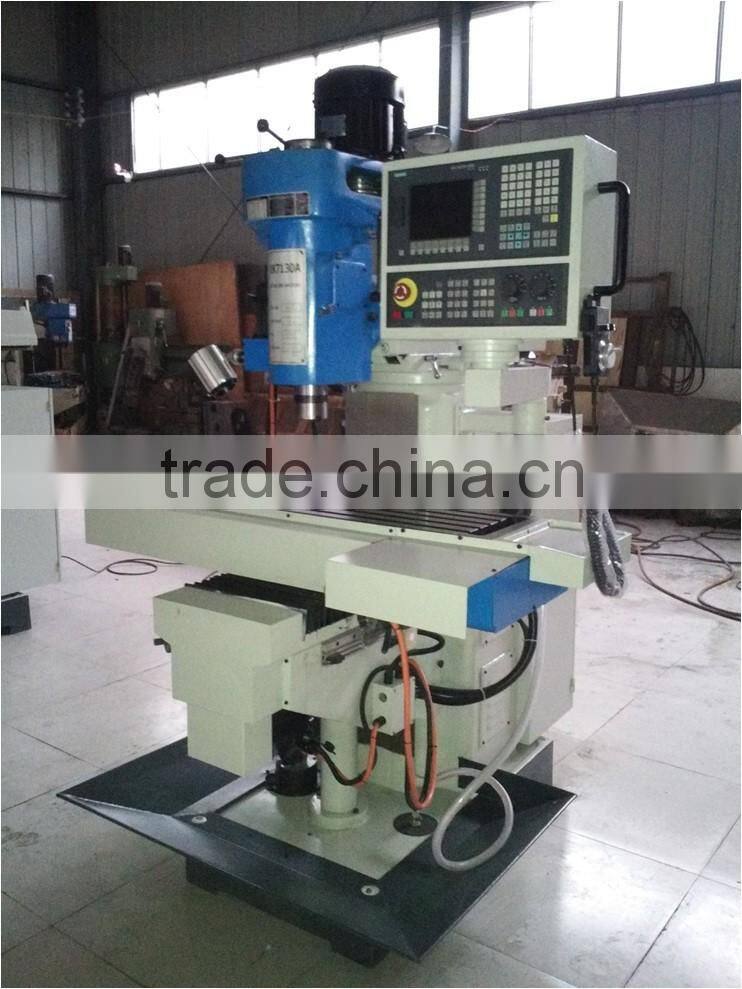

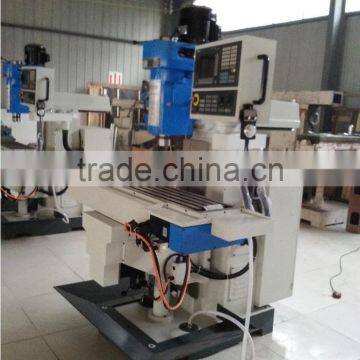

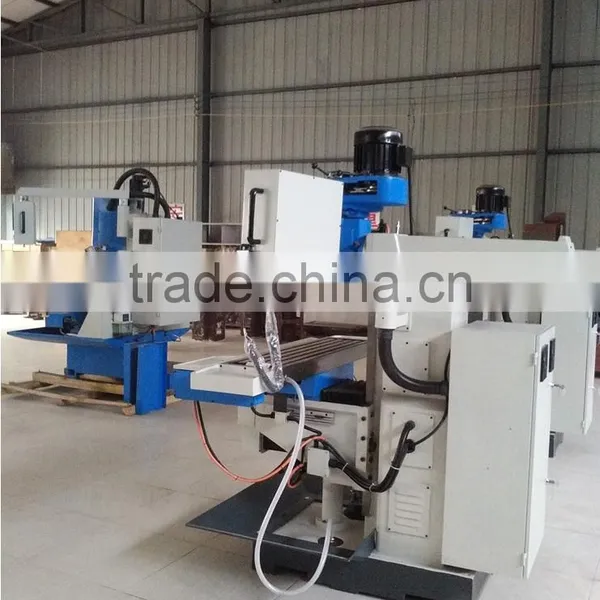

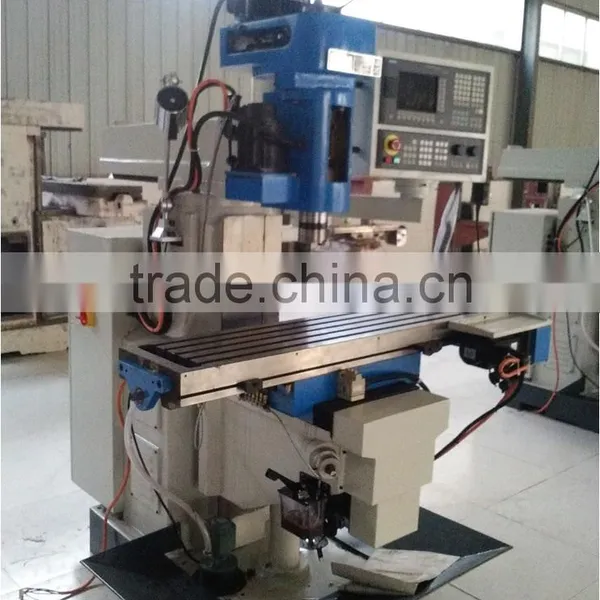

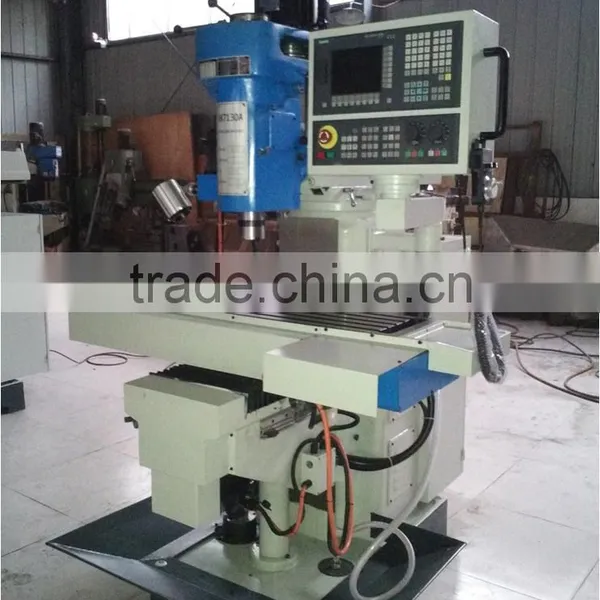

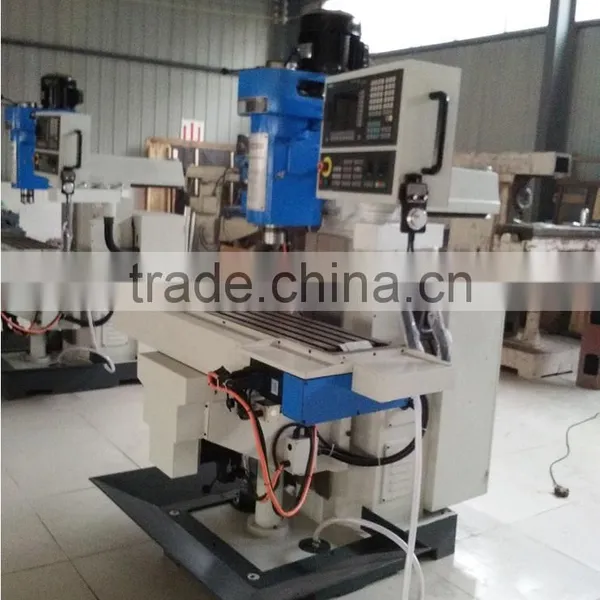

CNC Ram Turret Type Milling Machine
Model: KTM7130A
Features:
Main basic parts adopt high-rigidity casting iron, to ensure high rigidity and bending resistance and shock absorption of basic parts; Basic parts adopt resin sand molding and after aging treatment, ensure the stability of the precision during a long time, and provide the safeguard for the reliability of the machine tool.
- X,Y,Z-axis guideway post wear-resisting, no low-speed crawl phenomenon, improve life of machine accuracy.
- High-quality preloaded ball screw with servo drives on all axes.
- Full-enclosed cover of guideway and screw guarantee clean of screw and guideway and transmission accuracy of machine tool.
- Protection: standard is half-cover structure, optional is full-enclosed cover, safe and reliability.
- Including manual central lubrication.
- Machine tool operating system on the principle of human body engineering design, easy to operate.
- CNC system has a perfect and reliable interlock alarm, safety protection and fault diagnosis and other functions, equipped with RS232 standard communication interface, can be used to program control and storage with computer, to realize DNC machining function.

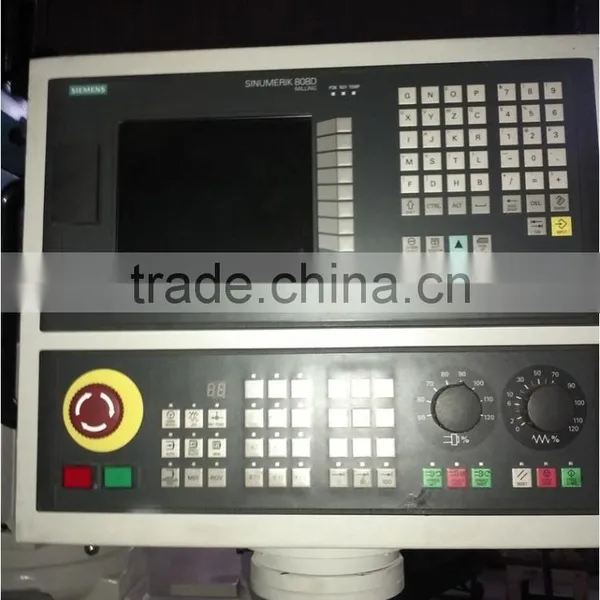

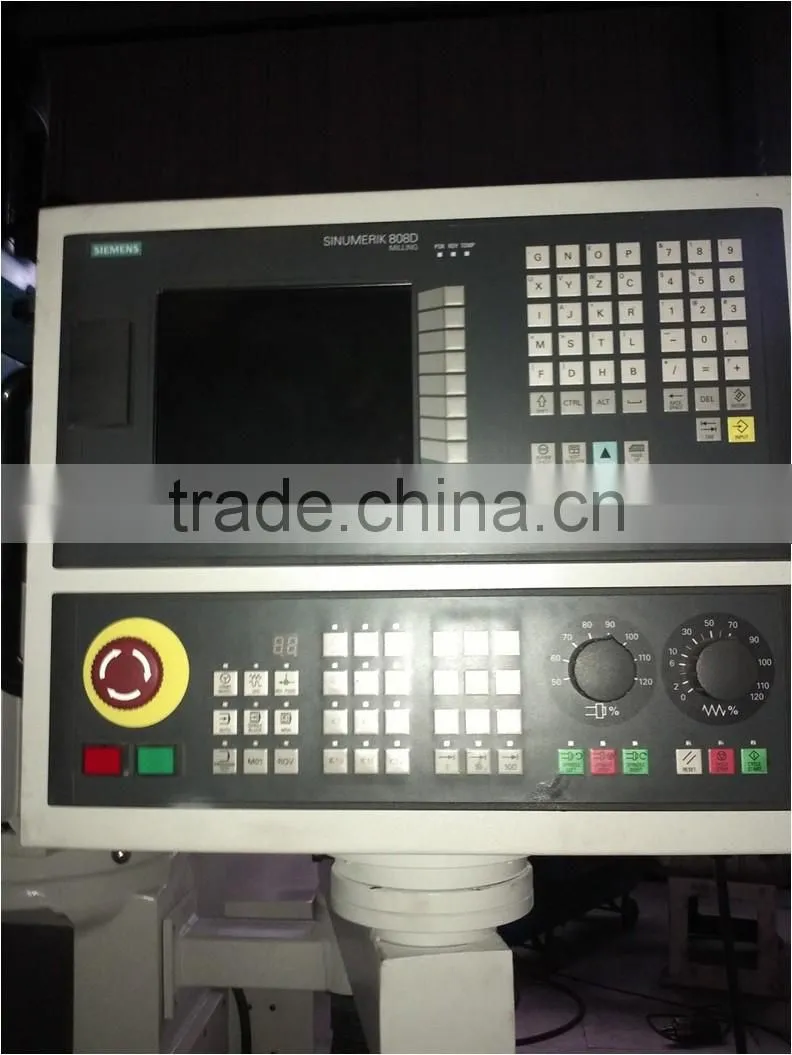

- Equipped with KND CNC system, GSK, SIEMENS and other famous-brand CNC system are available.
Specifications |
Units |
KTM7130A |
Working area | ||
X-axis travel |
mm |
660 |
Y-axis travel |
mm |
210 |
Z-axis travel |
mm |
120 |
Distance spindle nose to table surface |
mm |
120-480 |
Distance spindle center to column surface |
mm |
200-500 |
Table size |
mm |
1200x280 |
Max. load capacity of table |
kg |
150 |
T-slot(number/wide/distance) |
mm |
3/14/63 |
Spindle | ||
Spindle speed |
rpm |
66-4540(16steps) |
Main motor power |
kw |
2.2(3Hp) |
Main motor torque |
N.m |
14 |
Spindle taper |
- |
7:24; ISO40 |
Feed | ||
X/Y/Z-axis rapid feed speed |
mm/min |
3000 |
X/Y/Z-axis cutting feed speed |
mm/min |
1-2000 |
X/Y/Z-axis servo motor torque |
N.m |
6/6/4 |
Accuracy | ||
Positioning accuracy |
mm |
0.04 |
Repositioning accuracy |
mm |
0.025 |
Others | ||
Cooling pump motor power |
w |
45 |
Cooling pump flow |
L/min |
12 |
Voltage |
V |
380/50HZ |
Power capacity |
KVA |
5 |
Machine weight(N.W) |
kg |
1300 |
Machine dimension(LxWxH) |
mm |
1560x1340x2130 |
