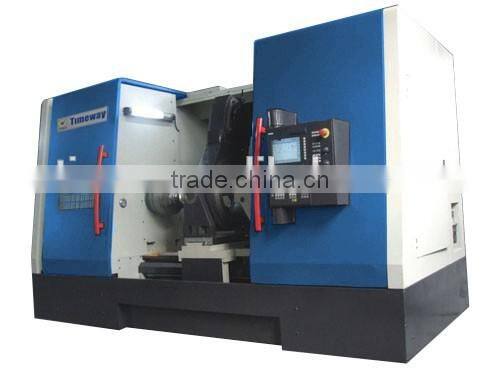

Horizontal CNC Thread/Worm Whirlwind Milling Machine

Name: Horizontal CNC Thread/Worm Whirlwind Milling Machine
Brand: TIMAC
SKU: 140796188
Availability: InStock

US$ 10,000 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

SMK-350

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number SMK-350

Type Horizontal

CNC or Not CNC

Voltage 380V 50Hz

Power(W) 7.5kw(milling head)

Dimension(L*W*H) As actual situation

Weight As actual situation

Certification CE ISO

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

CNC Horizontal Thread/Worm Whiralwind Milling Machine

SMK-350

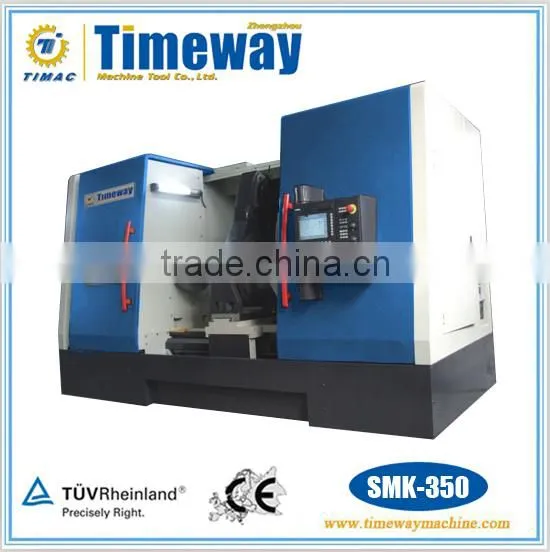

Main Outlook

Product Description

Features

The machine is designed a highly efficient processing equipment for axisymmetrical spiral parts.
Layout of horizontal lathe, precision-ground high hardness guideway, high-rigidity wide bed; Adpot SIEMENS CNC system to realize automatically cutting by four-axis linkage.
Cyclone milling cutting inside, high milling efficiency(6-20times of turning), spindle transmission chain is short, transmission accuracy is high, roughness is to Ra0.8um, Full-enclosed protection.

Technical Parameter

Specification	Unit	SMK-350
Max. turning diameter over bed	mm	Φ1060
Max. turning diameter over carriage	mm	Φ720
Max. length of workpiece	mm	1000
Max. diameter milling cutter blank	mm	Φ350
Max. milling helix angle	deg	±40°
Milling cutter speed range	rpm	10-750
Spindle taper	-	C11
C-axis speed range	rpm	0.1-50
Bed width	mm	600
Tailstock quill diameter	mm	Φ100
Tailstock taper	-	MT5
CNC system	-	SIEMENS 828D
X-axis servo motor torque	N.m	11
C-axis servo motor torque	N.m	111
Z-axis servo motor torque	N.m	16
Milling head motor power	kw	7.5
X/Z-axis min. feed unit	mm	0.001
X/Z-axis positioning accuracy	mm	0.01
Coolant type of tool	-	Nature
Processing accuracy of screw-pitch	-	IT7
Roughness of workpiece surface	um	Ra1.6-0.8
