Vertical Machining Center(VMC)

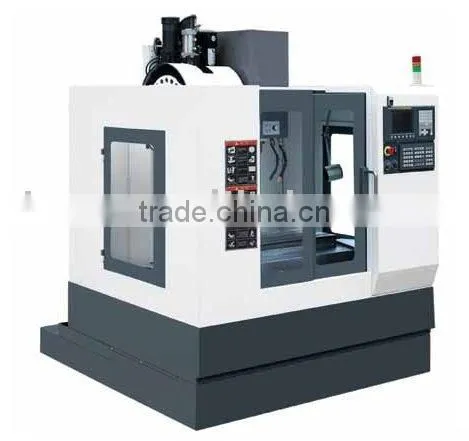

Name: Vertical Machining Center(VMC)
Brand: TIMAC
SKU: 140796134
Availability: InStock

US$ 15,000 - 45,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Brand Name TIMAC

Model Number VMC500, VMC745, VMC1060

Vertical machine center

Vertical machining center

VMC

Features:

FANUC 0i mate-MD CNC system;

High precision and speed spindle unit;

Umbrella type magazine;

Floating tools clamping system;

Separated type electronic hand wheel (MPG);

RS232 interface;

Oil and water separated design;

Interval auto-lubricating;

Full splash guard;

Tricolor alarm light

3-axis slide guide-ways for VMC745 and VMC1060, others are 3-axis linear guide-ways.

Model	Unit	VMC500	VMC745	VMC745L	VMC1060L
X-axis travel	mm	500	700	600	1000
Y-axis travel	mm	320	450	450	600
Z-axis travel	mm	400	500	500	500
Spindle nose to table	mm	125-520	145-645	130-630	130-630
Spindle center to column guideway face	mm	360	460	485	655
Rapid feeding of X,Y axis	mm/min	24000	12000	24000	24000
Rapid feeding of Z axis	mm/min	18000	10000	18000	18000
Feeding speed	mm/min	1-5000	1-5000	1-5000	1-5000
Table size	mm	800x320	700x450	800 x450	1300×600
Max.loading capacity of table	kg	300	600	550	750
T-slot NO./width/distance of table		3/14/100	3/18/125	3/18/160	5/18/125
Spindle max.speed	r/min	10000	8000	8000	8000
Main motor rated power	kw	3.7/5.5	5.5/7.5	5.5/7.5	7.5/11
Spindle nose taper		BT30	BT40	BT40	BT40
Magazine capacity	pcs	10	16	16	16
Magazine style		Umbrella	Umbrella	Umbrella	Umbrella
Max.diameter of tool	mm	Φ60	Φ80	Φ80	Φ80
Max.length of tool	mm	200	300	300	300
Max. weight of tool	kg	5	6	6	6
Pneumatic press	mpa	0.6	0.6	0.6	0.6
N.W	kg	2600	3500	3500	6500
Overall dimension	mm	1600x1840x2110	2500x2000x2450	2500x2000x2450	2920×2930 ×2530
