Condition New
Type Vertical
Brand Name TIMAC
Model Number VMC702H, VMC903H, VMC1103H, VMC1204H, VMC1304H, VMC1506H, VMC1706H

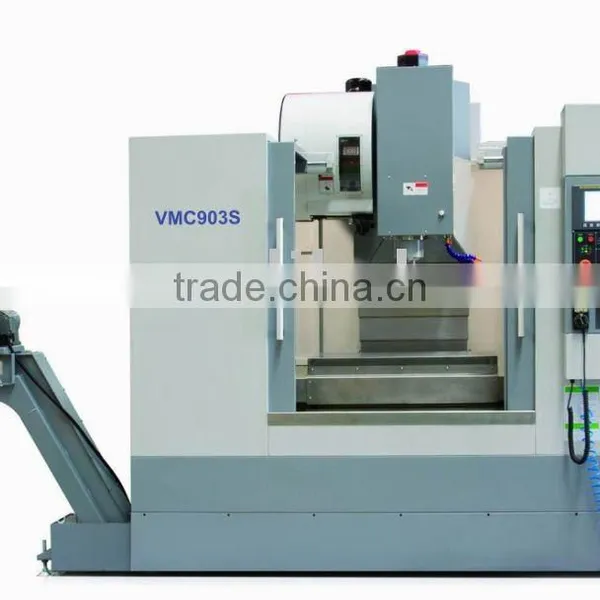

 Vertical Machine Center(VMC)



*The resin sand castings are applied in production of machine beds, saddles, work tables, spindle boxes and columns with a box structure of optimal reinforced ribs to make the machine having optimum rigidity and high strength, maintaining accuracy and stability for a long time.

*High precision ball screws and motors are connected by a rigid coupling on each axis.

*Ballscrew on each axis is pre-tensioned to ensure better driven rigidity and stable positioning accuracy.

*Linear guide ways make the machine feed with low vibration, high positioning accuracy and no crawling. Heavy machining is implemented thanks to the use of high power and torque spindle motor.

*Coolant and chips can be recycled safely and completely since the full-enclosure shielding and chip conveyor are being used.



Model Unit VMC702H VMC903H VMC1103H VMC1204H VMC1304H VMC1506H VMC1706H
Table table size(LxW) mm 750x420 950×520 1100×520 1250x600 1350x600 1500x800 1700x800
  Loading capacity kg 350 600 750 1000 1000 1250 1500
Travel Travel (XxYxZ) mm 650x420x500 850×520×560 1000×520×560 1050x600x600 1200x600x600 1350x800x680 1500x800x680
Spindle Distance from spindle nose to table surface mm 120~620 160~720 160~720 150~750 150~750 150~830 150~830
  Distance from spindle center to column mm 470 590 590 665 665 868 868
  spindle taper   BT40 BT40 BT40 BT40 BT40 BT50 BT50
  Max.spindle speed  rpm 10000 8000 8000 8000 8000 6000 6000
  Spindle Motor(Cont/30min) KW 5.5/7.5 7.5/11 7.5/11 11/15 11/15 15/18.5 15/18.5
Feedrate Rapid traverse (X/Y/Z) m/min 48/48/40 40×40×30 40×40×30 36x36x24 36x36x24 30x30x24 30x30x24
  cutting feedrate mm/min 1~10000 1~10000 1~10000 1~10000 1~10000 1~10000 1~10000
ATC Tool magazine capacity tools 20 24 24 24 24 24 24
  Max.tool diameter/weight mm/kg Φ80/8 Φ80/8 Φ80/8 Φ80/8 Φ80/8 Φ110/15 Φ110/15
  Tool change time s 1.7 1.8 1.8 1.8 1.8 2 2
Cutting capacity Drilling(medium carbon steel) mm Φ25 Φ36 Φ36 Φ40 Φ40 Φ45 Φ45
  Tapping(medium carbon steel) mm M16 M20 M20 M24 M24 M30 M30
  Milling(medium carbon steel) cm3/min 150 200 200 250 250 300 300
Accuracy Positioning/Repeatablity(X) mm 0.008/0.004 0.010/0.005 0.015/0.008 0.015/0.008 0.015/0.008 0.020/0.010 0.020/0.010
  Positioning/Repeatablity(Y) mm 0.008/0.004 0.010/0.005 0.010/0.005 0.010/0.005 0.010/0.005 0.015/0.008 0.015/0.008
  Positioning/Repeatablity(Z) mm 0.008/0.004 0.008/0.004 0.010/0.005 0.010/0.005 0.010/0.005 0.012/0.006 0.012/0.006
others Electric capacity kVA 18 20 20 30 30 35 35
  Air pressure bar 5-7 5-7 5-7 5-7 5-7 5-7 5-7
  Machine size(L×W×H) mm 2020x2320x2800 3900x2300x2900 3960x2300x2900 4350x2490x3200 4600x2490x3200 4950x2800x3500 5600x2700x3500
  Weight of machine(net/gross) kg 3000     6000 7000 8000 9000 11000 13000
