Specifications
1.Vertical machining center2.Table size:1400x710mm,1700x800mm
3.Arm type tool magazine 24 capacity
4.High rigidity box ways

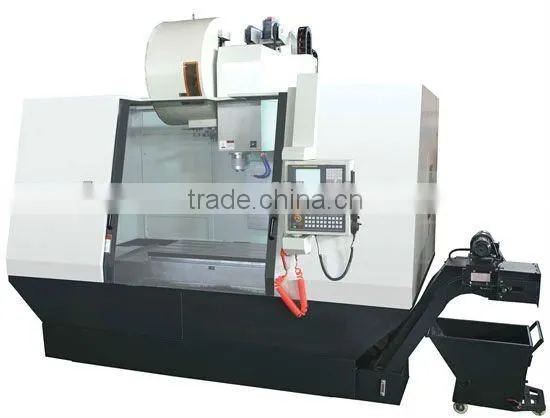

Large Sized CNC Vertical Machining Center(VMC)
VMC1370: Table size-1400x710mm; Table travel-1300x700x650mm;
VMC1580: Table size-1700x800mm; Table travel-1500x800x700mm;
Features:
1. With spindle system of high precision, high rigidity and stable temperature.
2. The spindle bearing adopts Senior grease lubrication, with long working life.
3. The spindle hole has clean blower.
4. With high rigidity rectangular guideways for X/Y/Z axes, which are anti-vibration and impact resistant.
5. Suit for strong cutting and precision processing, with enough cooling system for workpiece.
Standard Accessories:
FANUC 0i mate MD controller; FANUC servo main motor; FANUC servo feed motors on three axes; Taiwan 24 capacity arm type tool magazine; RS232 I/O interface; Movable electronic handwheel (MPG); Spindle blowing chips system; Work light; Tricolor alarm light.
Optional Accessories:
The 4th axis; Auto chip removal system, etc.
Specification |
VMC1370 |
VMC1580 |
|
Stroke |
X travel |
1300mm |
1500 mm |
Y travel |
700 mm |
800 mm |
|
Z travel |
650 mm |
700 mm |
|
Distance between spindle center and column guide way |
785 mm |
800 mm |
|
Distance between spindle end and table |
150~800 mm |
170~870 mm |
|
Worktable |
Table size |
1400×710 mm |
1700×800 mm |
Max. table load |
1000kg |
1500kg |
|
T-slot (width x number x spece) |
18×5×152.5 mm |
22×5×135 mm |
|
Spindle |
Taper bore of spindle |
BT50 |
|
Spindle seep |
50~6000 rpm |
||
Main motor power |
15/18.5KW |
||
Cutter removal from spindle |
Pneumatic |
||
Feeding |
X,Y travel speed |
20m/min |
|
Z travel speed |
20m/min |
||
X,Y,Z motor torque |
22Nm(α motor) |
||
Repeatability (X/Y/Z) |
±0.003 mm |
||
Tool changer |
Tool number |
Arm type: 24 |
|
Max. tool size (with adjacent tool) |
Ø127 mm |
||
Max. tool size (without adjacent tool) |
Ø150 mm |
||
Max. tool length |
300 mm |
||
Max. tool weight |
15kg |
||
Tool changing time (cutto cut) |
3s |
||
Others |
Min. displacement |
0.001 mm |
|
Min. input |
0.001 mm |
||
Overall dimensions(LxWxH) |
3500×3390×2865 mm |
4286×3110×3059 mm |
|
Net weight |
12000kg |
15000kg |
|
