Specifications
1.Vertical machining center2.Taiwan HIWIN linear guideways
3.High spindle speed 8000rpm
4.Table 1200x620mm
5.FANUC 0i mate

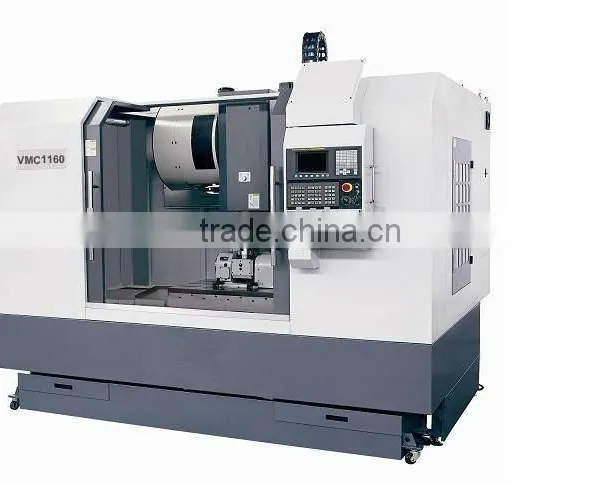

Vertical machining center(VMC)
Tabel Size: 1200(1400)x620mm
Table Travel: 1100x600x600mm
Features:
1. Taiwan HIWIN linear guideways for X,Y axes, sliding guideway for Z axis, to make sure the machining accuracy and rigidity;
2. Taiwan high speed, high precision spindle unit (8000rpm);
3. Taiwan 24 tools capacity arm type tool magazine, reliable and quick for tools exchange;
4. Cooling system adopts large fluid and high pressure coolant pump, to make sure the enough cooling under the high speed processing condition;
5. The machine adopts full close type protection guard, make the clean circumstance and safety of the operator.
Standard accessories:
FANUC 0i mate MD controller; FANUC servo main motor; FANUC servo feed motors on three axes; Taiwan 24 tools arm type tool magazine; RS232 I/O interface; Movable electronic handwheel (MPG); Spindle blowing chips system; Work light; Tricolor alarm light.
Optional accessories:
The 4th axis;
Taiwan 24 stations arm type tool magazine;
Automatic chip conveyor.
Specification |
Unit |
VMC1160 |
Table tavle(X,Y,Z) |
mm |
1100x600x600 |
Table size |
mm |
1200(1400)x620 |
Number/Width/Distance of T-slot |
mm |
5-18-115 |
Max. load of table |
kg |
1000 |
Distance from spindle nose to table surface |
mm |
150-750 |
Distance from spindle axis to vertical guideway |
mm |
660 |
Rapid feed speed |
m/min |
18 |
Feed speed |
mm/min |
2.5-6000 |
Taper of spindle |
BT40 |
|
Spindle speed range |
rpm |
40-8000 |
Spindle motor power |
kw |
7.5/11 |
Tool magazine capacity |
pc |
24 |
Max. weight of tool |
kg |
15 |
Max. dimension of tool |
mm |
150x300 |
Positioning accuracy |
mm |
±0.012 |
Repeat positioning accuracy |
mm |
±0.005 |
Min. time of tool exchange |
sec |
3(manipulator) |
Overall dimension |
mm |
3180x2295x2600 |
Machine weight |
kg |
8200 |
