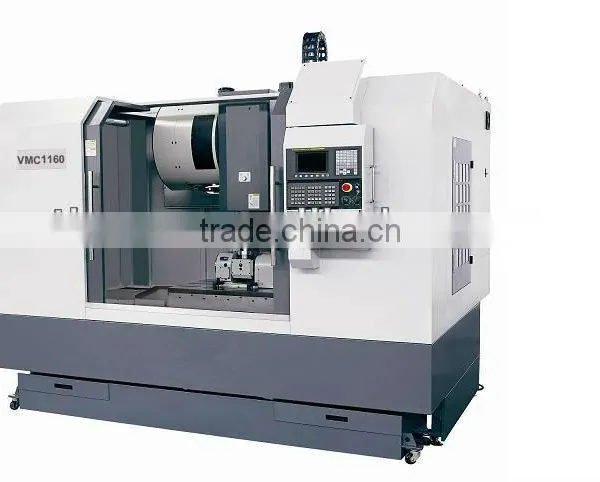

Help Center"Table Size 1220*620mm"CNC Vertical Machining Center/VMC1160
Related Products
-
Table 800x510mm, X/Y/Z Travel 800x500x500mm CNC Vertical Machining Center VMC850US$ 20,000 - 50,000MOQ: 1 Set -
CNC Vertical Machining Center/VMC1160NegotiableMOQ: 1 Set
-
VMC1060 Vertical Machining CenterNegotiableMOQ: 1 Set
-
1100x600x600mm Table Travel CNC Vertical Machining Center VMC1160US$ 20,000 - 50,000MOQ: 1 Set
-
1000X510X510mm Travel Vertical CNC Machining Center VMC1050US$ 30,000 - 50,000MOQ: 1 Set
Specifications
Five-axis vertical machining center1. X, Y-axis adopts Cashier line rail and Z-axis adopts hardened railway, to ensure the machining accuracy and rigidity.
2. Tool change is manipulator, reliability, fast tool change.
3.Coolant system uses large-volume, high-lift pumps to ensure adequate cooling for high-speed cutting.
Table travel(X,Y,Z) |
mm |
1100x600x600 |
Table size |
mm |
1220x620 |
Number/width/distance of T-slot |
mm |
5-18-115 |
Max. load of table |
kg |
1000 |
Distance from spindle nose to table surface |
mm |
150-750 |
Distance from spindle axis to vertical guideway |
mm |
660 |
Rapid feed speed |
m/min |
18 |
Feed speed |
mm/min |
2.5-6000 |
Taper of spindle |
|
BT40 |
Spindle speed range |
r.p.m |
40-6000 |
Spindle motor power |
kw |
AC servo 7.5/11 |
Tool magazine capability |
qty |
24 |
Max.weight of tool |
kg |
15 |
Maz.dimension of tool |
mm |
φ 150x300 |
Positioning accuracy |
mm |
±0.012 |
Min. time of tool change |
sec |
3(manipulator) |
Overall dimension |
mm |
3250x2500x2600 |
Machine weight |
kg |
8560 |
Standard accessories:
FANUC 0i mate-MD CNC system.
Turret-type tool magazine capacity 24 tools.
RS232 communication port separated-type electron handwheel.
Spindle blowing chip removal system.
