Help CenterTable 800x510mm, X/Y/Z Travel 800x500x500mm CNC Vertical Machining Center VMC850
Related Products
-
CNC Vertical Machining Center/VMC1160NegotiableMOQ: 1 Set -
VMC1060 Vertical Machining CenterNegotiableMOQ: 1 Set
-
1100x600x600mm Table Travel CNC Vertical Machining Center VMC1160US$ 20,000 - 50,000MOQ: 1 Set
-
1000X510X510mm Travel Vertical CNC Machining Center VMC1050US$ 30,000 - 50,000MOQ: 1 Set
-
High Precision CNC Vertical Machining Center (VMC)NegotiableMOQ: 1 Set
Specifications
1. Vertical CNC machining center;2. 45mm wide linear guideways for X/Y/Z;
3. 8000rpm high speed;
4. 16 tools capacity;

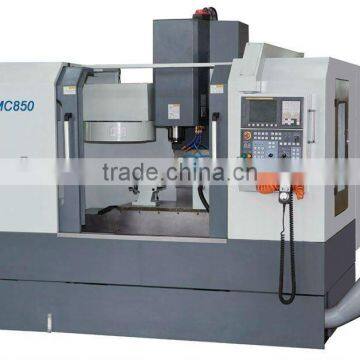

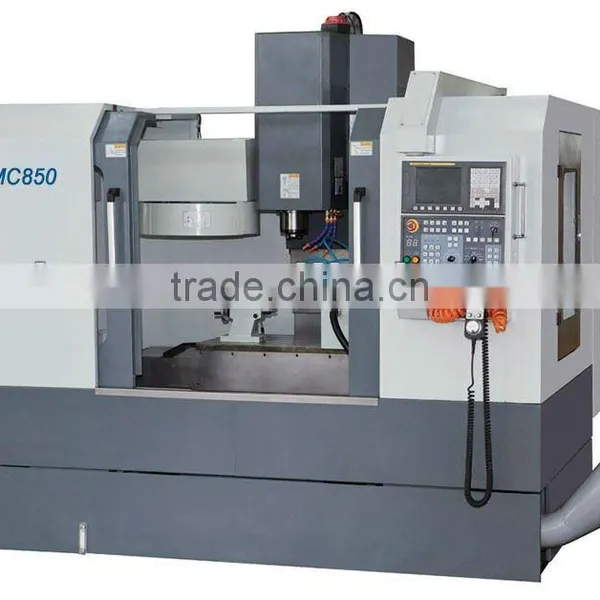

CNC Vertical Machining Center VMC850
Table size: 800x510mm
Table Travel(X/Y/Z): 800x500x500mm
Features:
1. X, Y, Z axis adopt 45mm wide linear guideways, which ensure the rigidity of the machine.
2. Taiwan made spindle unit with high accuracy, high speed(8000rpm).
3. Taiwan armless type tool magazine, with 16 tools capacity.
4. The coolant system adopts large flow and high-lift pump, which ensure the suffcient cooling under the high speed cutting.
5. The machine equiped with enclosed safety guard and full-enclosed electric cabinet, ensuring the safety and beautiful appearance.
Standard Accessories:
FANUC 0i mate MD controller; FANUC servo main motor; FANUC servo feed motors on three axes; Taiwan 16 stations armless type tool magazine; RS232 I/O interface; Movable electronic handwheel (MPG); Spindle blowing chips system; Work light; Tricolor alarm light.
Optional Accessories:
16 tools capacity arm type tool magazine; The 4th axis; Auto chip removal system.
Specification |
Unit |
VMC850 |
Table travel |
mm |
800x500x500 |
Table size |
mm |
800x510 |
Number/width/distance |
mm |
5-18-100 |
Max.load of table |
kg |
500 |
Distance fromspindle to table surface |
mm |
150-650 |
Distance from soindle axis to vertical guideway |
mm |
560 |
Rapid feed speed |
m/min |
18 |
Feed speed |
mm/min |
2-4000 |
Spindle taper |
BT40 |
|
Spindle speed range |
r.p.m |
40-8000 |
Spindle motor power |
kw |
(Ac servo) 7.5 |
Tool magazine capacity |
qty |
16 |
Max.weight of tool |
kg |
8 |
Max.dimension of tool |
mm |
130x250 |
Positioning accuuracy |
mm |
±0.015 |
Repeat positioning accuracy |
mm |
±0.0075 |
Min.time of tool change |
sec |
3 |
Overall dimension |
mm |
2450x2200x2300 |
N.W. |
kg |
4750 |
