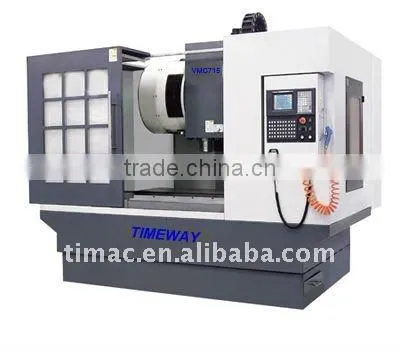

CNC Vertical Machining Center VMC715

Name: CNC Vertical Machining Center VMC715
Brand: TIMAC
SKU: 140796090
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

Henan, China

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin Henan, China

Brand Name TIMAC

Model Number VMC715

Voltage As request

Power(W) 7.5/11kw

Weight 5370kg

Certification CE, ISO Standard

After-sales Service Provided Engineers available to service machinery overseas

Specifications

CNC Vertical machining center

1. Machine base adopts four rail wide rectangular structure, good rigidity.

2. The machine adopts Japan NSK bearings.

3. Taiwan famous hat-style magazine, high precision spindle is 8000r.p.m

4. Cooling system using large-volume, high-lift pumps, to ensure high-speed cutting has sufficient cooling.

Specification	Unit	VMC715
Table travel(X,Y,Z)	mm	1000X510X510
Table size	mm	1100X510
Number/width/distance	mm	5-18-100
Max.load of table	kg	800
Distance from spindle nose to table surface	mm	120-630
Distance from spindle axis to vertical guideway	mm	600
Spindle taper		BT40
Spindle speed range	r.p.m	60-6000
Spindle motor power	kw	7.5/11
Rapid feed speed	mm/min	12000
Cutting feed speed	mm/min	2.5-4000
Tool magazine capacity	qty	20
Max.weight of tool	kg	6
Max.dimension of tool	mm	130X250
Positioning accuracy	mm	0.015
Repeat positioning accuracy	mm	0.0075
Min.time of tool change	sec	7
Overall dimension	mm	2900x2200x2620
Net weight	kg	5370
