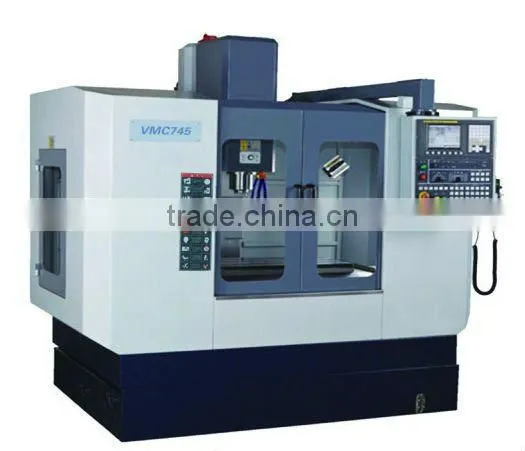

Vertical Machining Center

Vertical Machining Center thumbnail-1
Vertical Machining Center photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
TIMAC
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name TIMAC
Model Number VMC745
Type Vertical
CNC or Not CNC
Power(W) 5.5/7.5
Weight 3500kg
Certification ISO, CE Standard
After-sales Service Provided Engineers available to service machinery overseas
Model Unit VMC745
X-axis travel mm 600
Y-axis travel mm 450
Z-axis travel mm 500
Spindle nose to table mm 130-630
Spindle center to column guideway face mm 485
Rapid feeding of X,Y axis mm/min 24000
Rapid feeding of Z axis mm/min 18000
Feeding speed mm/min 1-5000
Table size mm 800×450
Max.loading capacity of table kg 550
T-slot NO./width/distance of table   5/18/160
Spindle max.speed r/min 8000
Main motor rated power kw 5.5/7.5
Spindle nose taper   BT40
Magazine capacity pcs 16
Magazine style   Umbrella
Max.diameter of tool mm φ80
Max.length of tool mm 300
Max.weight of tool kg 6
Pneumatic press mpa 0.6
N.W kg 3500
Overall dimension(L×W×H) mm 2500×2000×2450



Standard:

FANUC 0i mate-MD CNC system;

3-axis slide guide-ways;

High precision and speed spindle unit;

Armless type magazine with 10 tools capacity;

Separated type electronic hand wheel (MPG);

RS232 interface;

Oil and water separated design;

Internal settled auto. Chip conveying units;

Interval auto-lubricating;

Full splash guard;

Tricolor alarm light;

Operation manuals (English edition).
