VMC / CNC Vertical Milling Machine

Name: VMC / CNC Vertical Milling Machine
Brand: TIMAC
SKU: 140796034
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

VMC500, VMC745L, VMC850L

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number VMC500, VMC745L, VMC850L

Type Vertical

CNC or Not CNC

Voltage as customer's request

Power(W) 5.5/7.5KW

Dimension(L*W*H) 1600mm*1840mm*2110mm

Weight 2500KG

Certification CE & ISO9001

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

CNC Vertical Milling Machine For Sale

Product Description

Standard Equipment:

Liner guide ways, Drum type ATC, High speed spindle unit, Pneumatic tools clamping,Air cooling,

Full splash guard, Interval auto-lubricating, Chip flushing & releasing system.

Machine Options:
Choice of 4th axis, 10,000rpm spindle speed (VXC745L/VMC850L),

20 station twin arm tool changer (VMC500), 24 station twin arm tool changer (VMC750L/VMC850L)

Parameter:

Specification	Unit	VMC500	VMC745L	VMC850L
***TRAVEL
Travel of X axis	mm	500(liner way)	600(liner way)	800(liner way)
Travel of Y axis	mm	320(liner way)	450(liner way)	500(liner way)
Travel of Z axis	mm	400(liner way)	500(liner way)	580(box way)
Spindle nose to table	mm	120-520	130-630	110-660
Spindle center to column	mm	360	485	560
***TABLE
Table size	mm	800×320	800×450(1000×450 opt)	1050×500
T-Slot (No./Width/ table distance)		3/14/100	3/18/160	5/18/90
Table load	kg	300	500	600

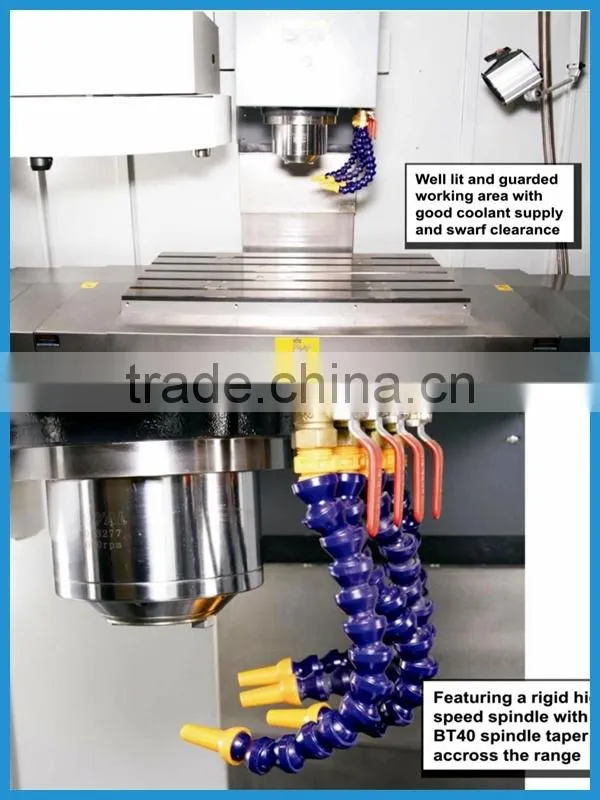

***SPINDLE
Taper size		BT30(BT40 opt)	BT40	BT40(CAT40 opt)
Speed	rpm	10000(GSK) 9000(Seimens) 10000(Fanuc)	8000 (10000 opt)	8000 (10000 opt)
Spindle power	kw	5.5/7.5	5.5/7.5	7.5/11
***FEED
Rapid feed(X/Y/Z)	m/min	18/18/18	24/24/24	20/20/18
Feed rate	mm/min	1-5000	1-5000	1-5000
***ACCURACY
Positioning	mm	X-0.012/Y-0.01/Z-0.01
Repeatability	mm	X-0.008/Y-0.006/Z-0.006

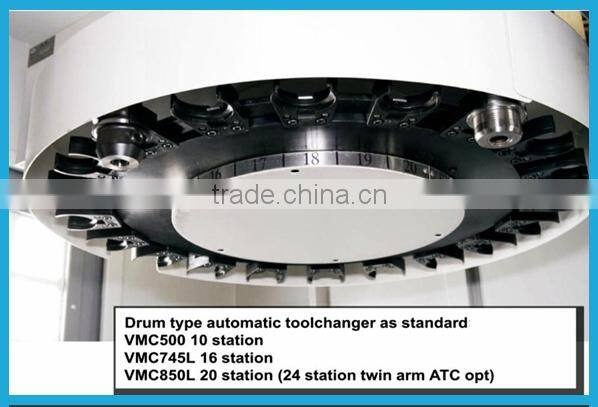

***ATC
Tool storage capacity		10station, drum type	16station, drum type	20station, drum type
Max. tooL diameter	mm	60/100	80/130	80/130
Max. tool length	mm	200	300	300
Max. tool weight	kg	5	6	6
Tool change time	secs	6
***OTHER
Pneumatic pressure	Mpa	0.6	0.6	0.6
Machine size	mm	1600×1840×2110	2100×2450×2300	3500×2550×2400
Weight	kg	2500	3500	5500
