CNC Machining Center (Vertical Machine Center)

Name: CNC Machining Center (Vertical Machine Center)
Brand: TIMAC
SKU: 140795988
Availability: InStock

US$ 30,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Brand Name TIMAC

Model Number VMC500L

Voltage 380V/50Hz

Power(W) 5.5/7.5kw(Spindle)

Dimension(L*W*H) 1600x1840x2110mm

Weight 2500kgs

Certification ISO CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

CNC Vertical Machining Center with Linear Guideway

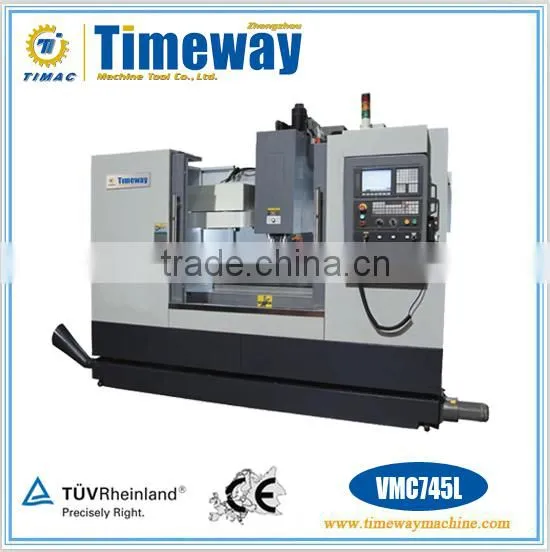

VMC500L VMC745L VMC850L VMC1060L

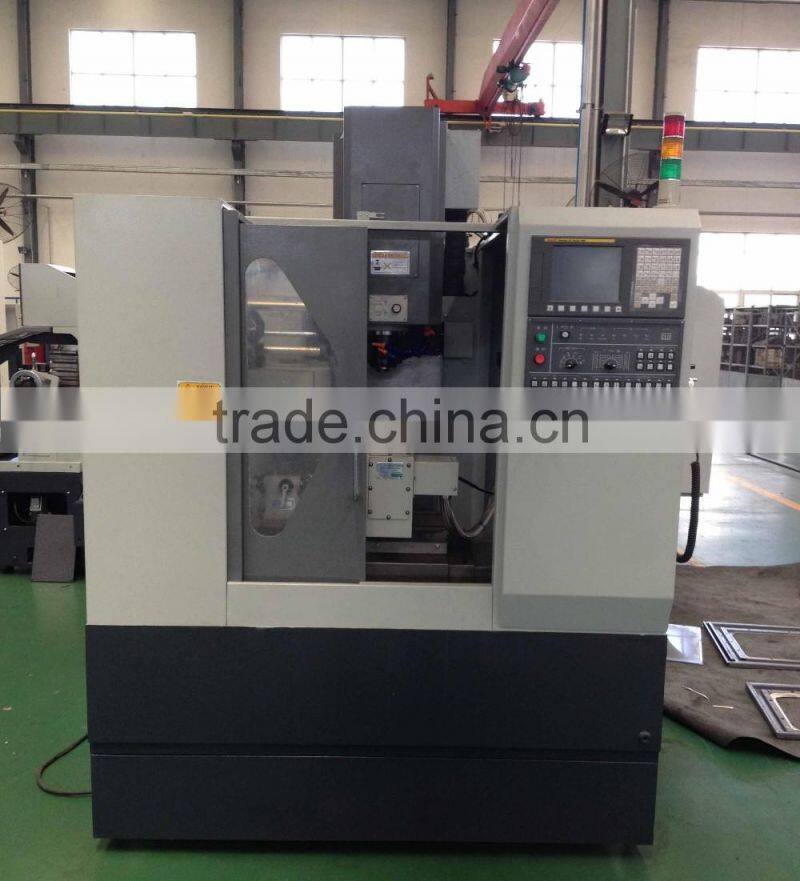

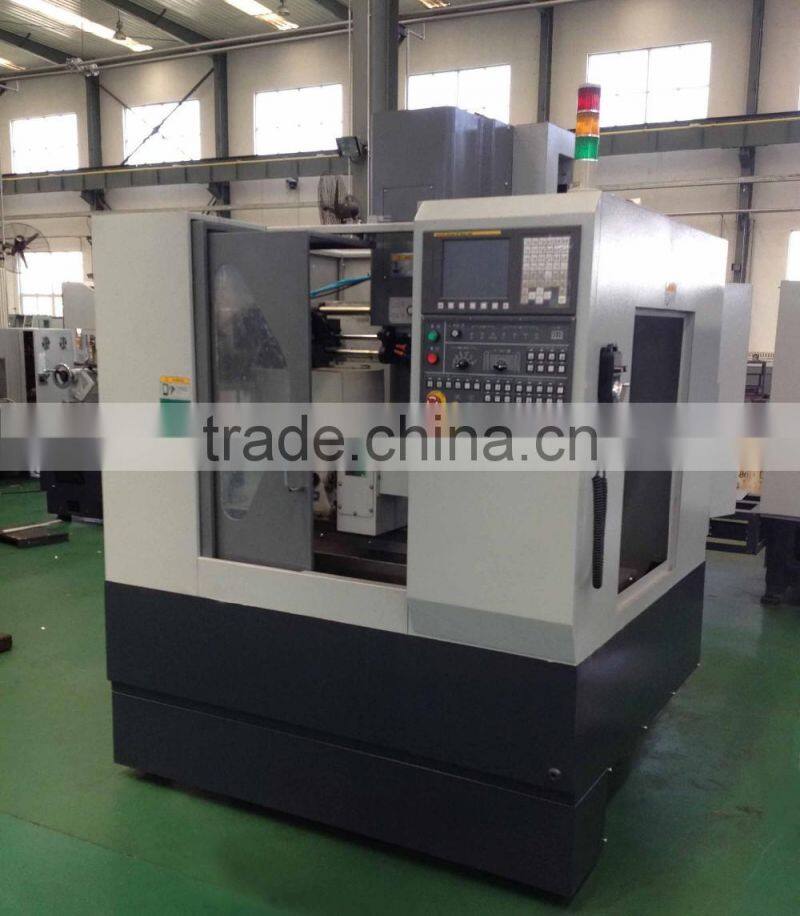

Main Outlook

Product Description

Standard Accessories

Optional Accessories

Technical Parameter

Specification	Unit	VMC500L	VMC745L	VMC850L	VMC1060L
Travel
X-axis travel	mm	500	600	800	1000
Y-axis travel	mm	320	450	500	600
Z-axis travel	mm	400	500	500	500
Spindle nose to worktable surface	mm	120-520	130-630	110-610	130-630
Spindle center to column guideway face	mm	360	485	575	655
Worktable
Worktable size	mm	800x320	800x450	1050x500	1300x600
T-slot (Number/width/dis.)	mm	3-14-100	3-18-160	5-18-90	5-18-125
Max. weight of workpiece	kg	300	500	450	750
Spindle
Spindle speed	rpm	100-10000	80-8000	60-8000	80-8000
Spindle taper	-	BT30	BT40	BT40	BT40
Spindle motor power	kw	5.5/7.5	5.5/7.5	7.5/11	7.5/11
Feed
X/Y-axis rapid feeding speed	m/min	18	24	20	24
Z-axis rapid feeding speed	m/min	18	18	18	18
Feeding speed	mm/min	1-5000	1-5000	1-5000	1-5000
Accuracy
X/Y/Z-axis positioning accuracy	mm	0.01/0.01/0.01	0.012/0.01/0.01	0.012/0.01/0.01	0.012/0.01/0.01
X/Y/Z-axis repositioning accuracy	mm	0.006/0.006/0.006	0.008/0.006/0.006	0.008/0.006/0.006	0.008/0.006/0.006
Tool Magazine
Capacity	T	10(20)	16(24)	16(24)	16(24)
Max. diameter of tools	mm	Φ60/Φ100	Φ80/Φ130 (Φ80/Φ125)	Φ80/Φ130 (Φ80/Φ125)	Φ80/Φ150 (Φ80/Φ130)
Max. length of tools	mm	200	300(300)	300(300)	300(300)
Max. weight of tools	kg	5	6	6	6
Others
Guideway type	-	Linear guideway (X/Y/Z)	Linear guideway (X/Y/Z)	Linear guideway (X/Y) Hard guideay (Z)	Linear guideway (X/Y/Z)
N.W	kg	2500	3500	4500	6500
Overall dimension (LxWxH)	mm	1600x1840x2110	2100x2450x2300	2700x2150x2700	2920x2930x2530
