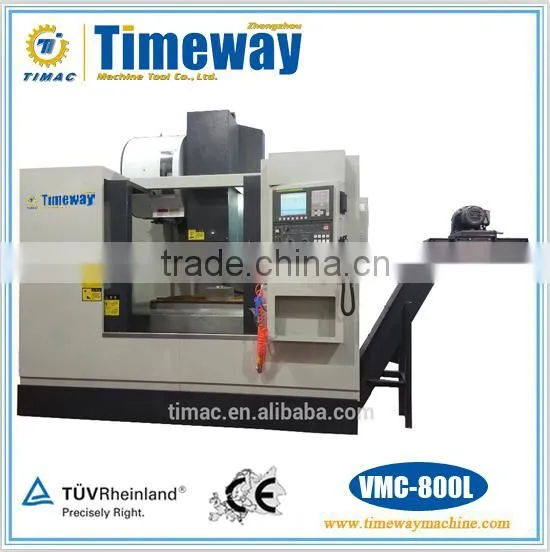

CNC Vertical Machining Center
VMC-800L VMC-800H VMC-1000L VMC-1000H
Features:
- Wide base design with three sets of precision linear roller ways and 5 sliding block on X and Y axes, and two sets of precision linear roller ways and 6 sliding blocks on Z axis.
- The machines are suitable for both rough and finish machining because of high rigidity, precision and stability.
- Ball screw’s driving end euipped with 4 precision angular contact ball bearings and the other end with 3 ones, ball screw pre-extended.
- Spindle supported by 5 precision angular contact ball bearings. With good rigidity for cutting.
- Turning area can be supplied with full coolant.
Technical Parameters:
Specification | VMC-800L | VMC-800H | VMC-1000L | VMC-1000H |
Travel |
| |||
X travel | 800 mm | 1000 mm | ||
Y travel | 510 mm | |||
Z travel | 510 mm | |||
Distance between spindle center and column guide way | 550 mm | |||
Distance between spindle end and table | 155-665 mm | |||
Table |
| |||
Tablesize | 950×510mm | 1130×510 mm | ||
Max. table load | 600kg | |||
T-slot (width×number×space) | 18×5×100 mm | |||
Spindle |
| |||
Taper bore of spindle | BT40 | |||
Spindle speed | 8000rpm | |||
Main motor power | 11/15KW | |||
Cutter removal from spindle | Pneumatic | |||
Feed |
| |||
X,Y travel speed | 0-30m/min | 0-36m/min | 0-30m/min | 0-36m/min |
Z travel speed | 0-24m/min | 0-30m/min | 0-24m/min | 0-30m/min |
X,Y,Z Motor torque | 12Nm | |||
Repeatability(X/Y/Z) | ±0.003mm | |||
Tool changing system |
| |||
Tool number | (horizontal type):24 | |||
Max. tool size(with adjacent tool) | Ø80 | |||
Max. tool size(Without adjacent tool) | Ø130 mm | |||
Max. tool length | 300mm | |||
Max. tool weight | 7kg | |||
Tool changing time(cut to cut) | 2s | |||
Other |
| |||
Min. Input(X/Y/Z) | 0.001 mm | |||
Overall dimensilns(L×W×H) | 3950×2100×2600 mm(with automatic conveying) | |||
Net weight | 520kg | 5500kg | ||
1.Trade terms:
FOB, CFR, CIF, EXW, FCA price terms is acceptable.
2.Payment terms:
T/T, L/C, Western Union payment terms is acceptable.
3.Delivery time:
60-90days....(vary as the machine's different size and complexible).
4.Warranty period:
12 monthes after delivery.(Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
