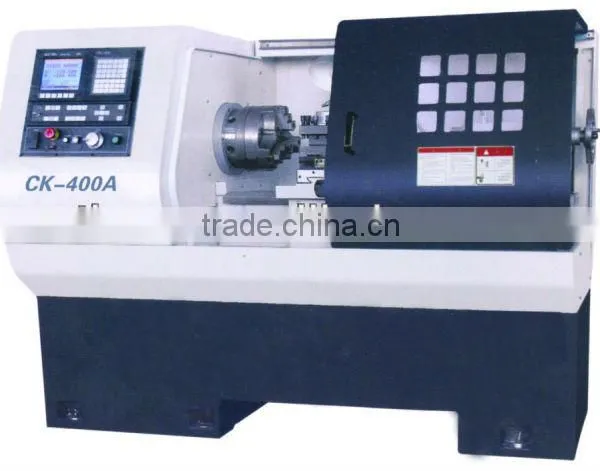

Flat Bed Type CNC Lathe Machine/Full Function CNC Lathe Machine CK-400A

Flat Bed Type CNC Lathe Machine/Full Function CNC Lathe Machine CK-400A thumbnail-1
Flat Bed Type CNC Lathe Machine/Full Function CNC Lathe Machine CK-400A photo-1
US$ 10,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 400mm
Place of Origin Henan, China
Brand Name TIMAC
Model Number CK-400A
Voltage As request
Power(W) 5.5kw
Dimension(L*W*H) 2060/2310/2790x1180x1500mm
Weight 2380/2580/3050kg
Certification CE, ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Famous brand CNC controller;
2. Variable frequency main motor;
3.Step or servo type feed diving.

Model CK-400A
Max.Swing over bed 400mm
Max.Swing over slide 210mm/165mm
Max.cross travel(X) 250mm/330mm
Max.Length of workpiece 750/1000/1500mm
Rapid feed for Axis X 8m/min
Rapid feed for Axis Z 10m/min
Range of spindle speeds 100-2000rpm
Spindle bore 80mm
Taper of spindle bore MT No.7
Number of tools 4 or 6 or gang tools
Size of tool shank 25×25mm
Min input 0.001mm
Repeatability(X/Z) 0.0075/0.01mm
Power of main motor 5.5kw
Motor power of cooling pump 75w
Overall dimension(L×W×H) 2060/2310/2790×1180×1500mm
Net weight 2380/2580/3050kg



Features:

1. Famous brand CNC controller

2. Variable frequency main motor;

3.Step or servo type feed diving;

4.4 or 6 stations electric or gang type tool post are available;

5. Hydraulic type chuck, hydraulic tailstock is optional.

6.Magnetic braking device is provided for spindle stopping.
