80mm Spindle Bore FANUC CNC Lathe CK-500B

Zhengzhou Timeway Machine Tool Co., Ltd.
80mm Spindle Bore FANUC CNC Lathe CK-500B thumbnail-1

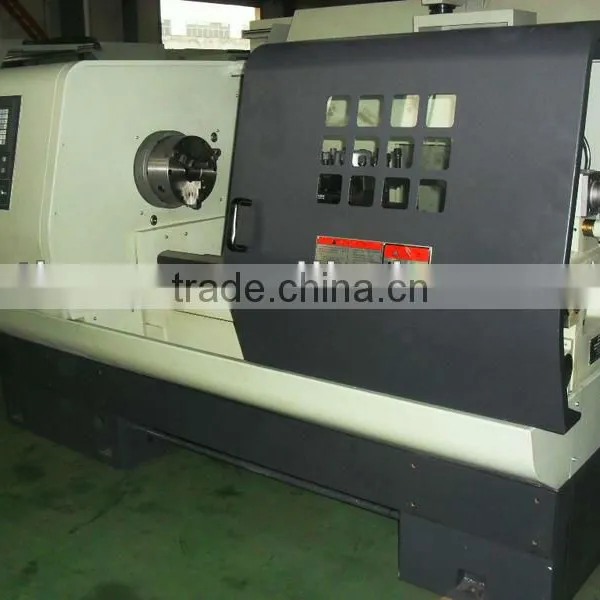

80mm Spindle Bore FANUC CNC Lathe CK-500B photo-1
US$ 4,999 - 29,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 500mm
Place of Origin Henan, China
Brand Name TIMAC
Model Number CK-500B
Voltage As Customers' Request
Power(W) 7.5KW
Dimension(L*W*H) 2250/2500/3000/3500x1200x1520
Weight 2700/3000/3500/4000/4600kg
Certification ISO, CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Flat Bed Type CNC Lathe;
2. FANUC 0i mate TD controller;
3. FANUC servo feed motor;
4. 500mm swing;
5. 80mm spindle bore;



Flat Bed Type CNC Lathe



Features:

1. Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.

4. The spindle system is high in the rigidity and accuracy.



Standard Accessories:

FANUC 0i mate TD CNC system, FANUC servo feed motor, Inverter main motor, 3 jaw chuck, 4 station electric tool post, Coolant supply system, Auto. Lubrication unit, Lighting unit, General tools, Operation and maintenance manuals (English edition), etc.



Optional Accessories:

GSK980TD controller, 6 station electric toolpost, Hydraulic chuck, Hydraulic tailstock

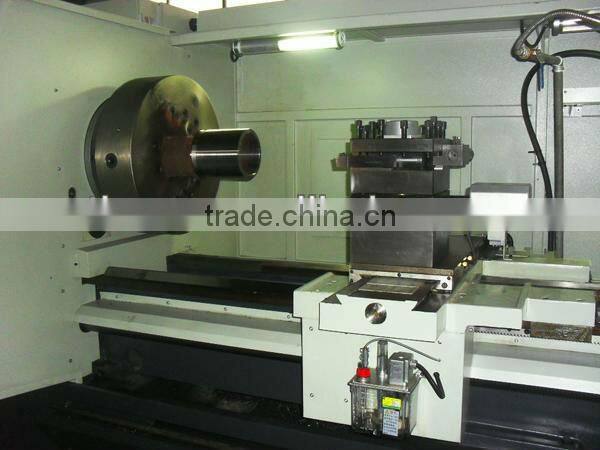

  80mm Spindle Bore FANUC CNC Lathe CK-500B

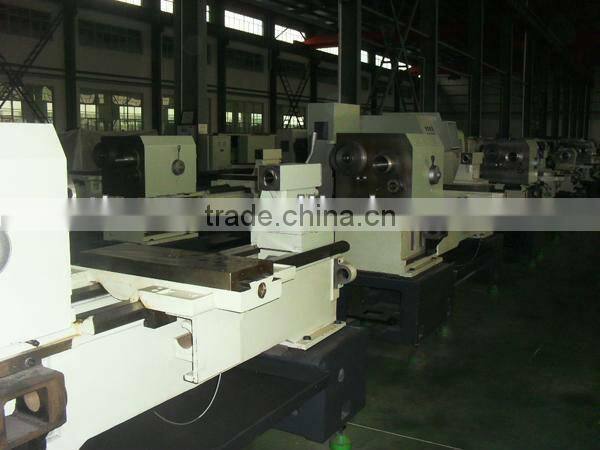

80mm Spindle Bore FANUC CNC Lathe CK-500B

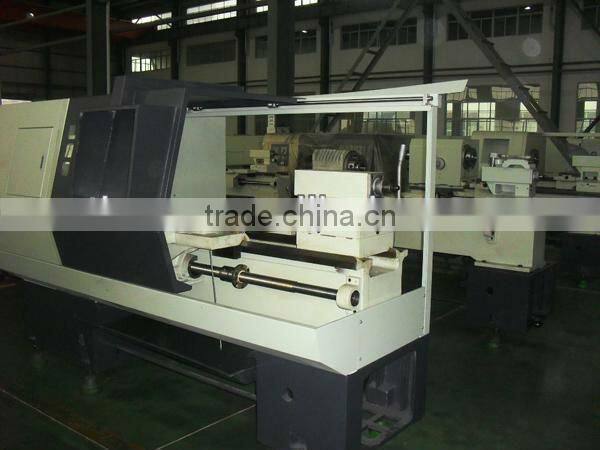

80mm Spindle Bore FANUC CNC Lathe CK-500B



SpecificationUnitCK-500BCK-560BCK-660
Max. swing dia. over bedmm500560660
Max. swing dia. over carriagemm310330430
Center distancemm750/1000/1500/2000/3000
Max. turning lengthmm650/900/1400/1900/2900
Spindle nose A2-8D8
Spindle boremm80105
Spindel taper MT.No7113 1:20
Steps of spindle speed 2steps(Variable)4steps(Variable)
Range of spindle speedrpm

400~1600(high),

50~400(low)

27~135, 55~270,

160~805, 325~1630

Rapid feed for axis Zm/min10
Rapid feed for axis Xm/min8
Max. travel of axis Zmm720/970/1270/1970/2970
Max. travel of axis Xmm300320365
Min. inputmm0.001
Tool post stations 4/6
Tool sectionmm32×32
Tailstock sleeve diametermm75
Tailstock sleeve taper MT.No.5
Tailstock sleeve travelmm150
X/Z motor torqueNm7.5/10, 7.5/22,10/10,10/22
Main motor powerkw7.511
Cooling pump powerw90
Overall dimension(L×W×H)mm

2250/2500/3000/3500/4500

×1200×1520

2250/2500/3000/3500/4500

×1250×1580

Net weightkg2700/3000/3500/4000/46002800/3100
