Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > SLANT BED TYPE CNC LATHE

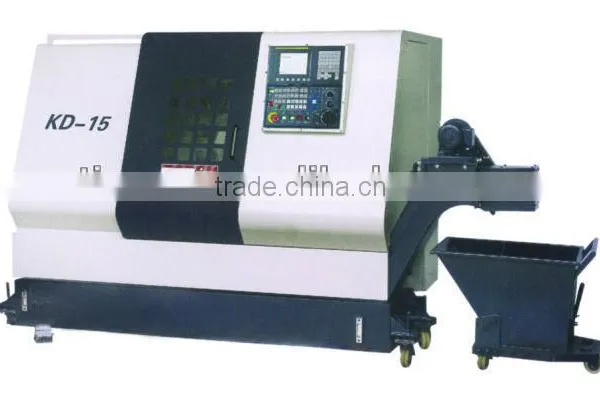

SLANT BED TYPE CNC LATHE

Name: SLANT BED TYPE CNC LATHE
Brand: TIMAC
SKU: 140795946
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 360mm

Place of Origin Henan, China

Brand Name TIMAC

Model Number KD-15

Power(W) 5.5/7.5kw

Weight 3000kg

Certification ISO, CE Standard

After-sales Service Provided Engineers available to service machinery overseas

Specifications

SLANT BED TYPE CNC LATHE

Model	Unit	KD-15
Max.swing over bed	mm	360
Max.cutting dia.for disc parts	mm	250
Max.cutting dia.for axle parts	mm	150
Max.turning length	mm	300
Max.cross travel(X)	mm	150
Max.Longitudinal travel(Z)	mm	320
Rapid feed for Axis X	m/min	12/10
Rapid feed for Axis Z	m/min	20/16
Max.speed of spindle	r/min	6000/4000
Spindle bore	mm	40
Hydraulic chuck		6″
Number of tools		8
Outside dia.of cutting tool shank	mm	20×20
Internal dia.of cutting tool shank	mm	25
Min.input	mm	0.001
Repeatability(X/Z)	mm	0.005/0.006
Bed structure		45°slant bed integrated with stand
Guide ways X&Z		Precision linear ball rail
Main motor power	kw	5.5/7.5
Capacity for coolant	L	100
Overall dimension(L×W×H)	mm	2700×1460×1680
Net weight	kg	3000

Standard:

FAUNC 0i mate TD controller; slant bed, hydraulic chuck, hydraulic tool turret, hydraulic tail-stock(if any), precision linear rolling guide ways, high speed spindle, auto. lubricating, auto. chip removal device is optional.
