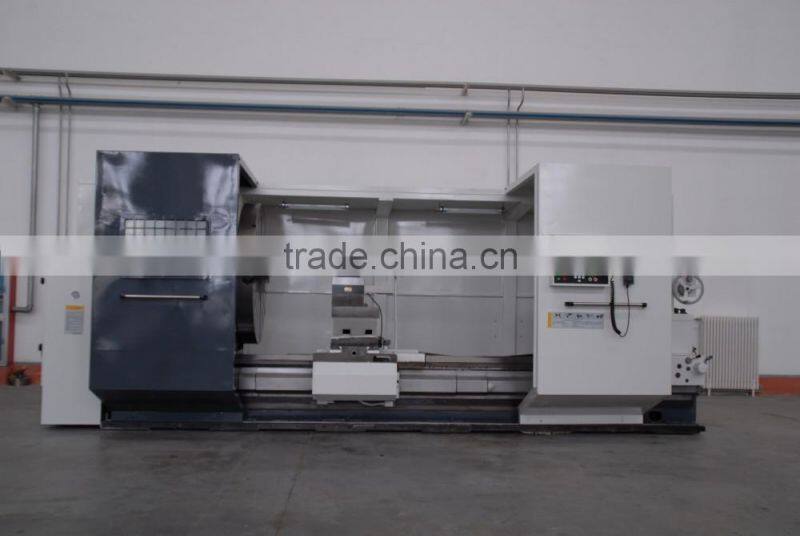

Help Center"755mm Bed Width' Heavy-duty CNC Horizontal Lathe Machine/CNC Lathe Machine/High Precision Automatic CNC Lathe Machine
Related Products
-
80mm Spindle Bore FANUC CNC Lathe CK-500BUS$ 4,999 - 29,999MOQ: 1 Set -
SLANT BED TYPE CNC LATHENegotiableMOQ: 1 Set
-
Slant Bed Type CNC Lathe/Full Function CNC LatheUS$ 10,000 - 35,000MOQ: 1 Set
-
Flat Bed Type CNC Lathe Machine/Full Function CNC Lathe Machine CK-400AUS$ 10,000 - 35,000MOQ: 1 Set
-
Flat Bed Type CNC Lathe Machine/Full Function CNC Lathe Machine CK-500B CK-560B CK-660US$ 2,000 - 35,000MOQ: 1 Set

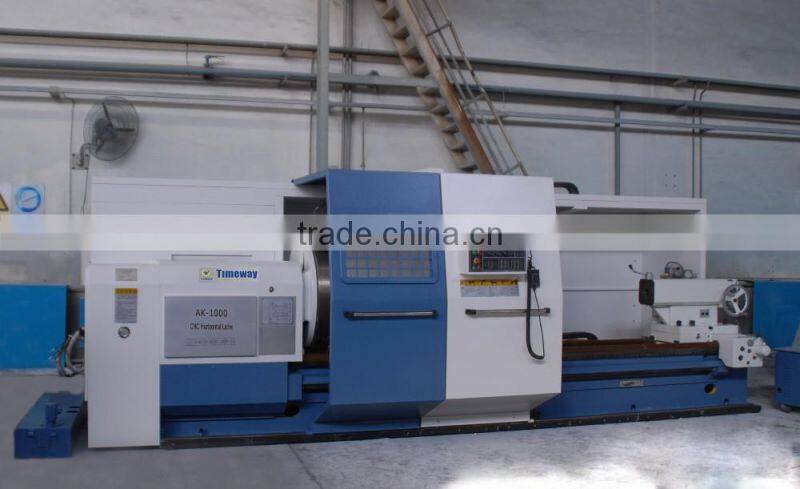

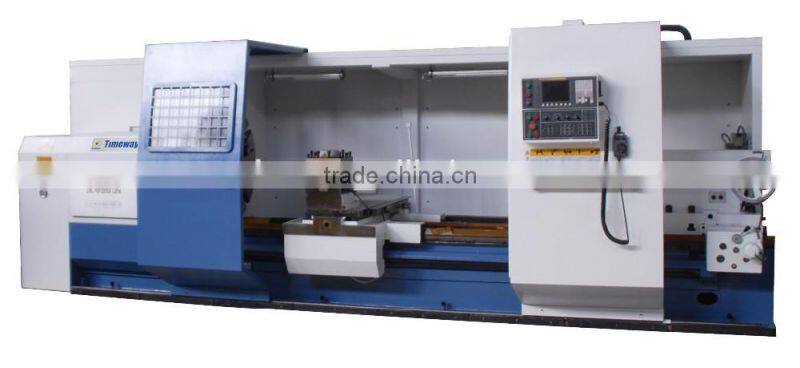

CNC Heavy-duty Horizontal Lathe Machine

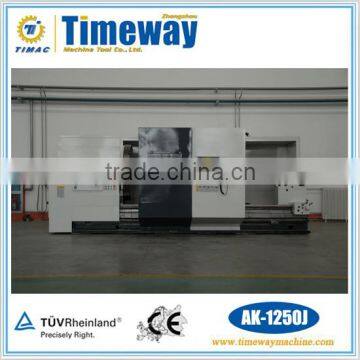

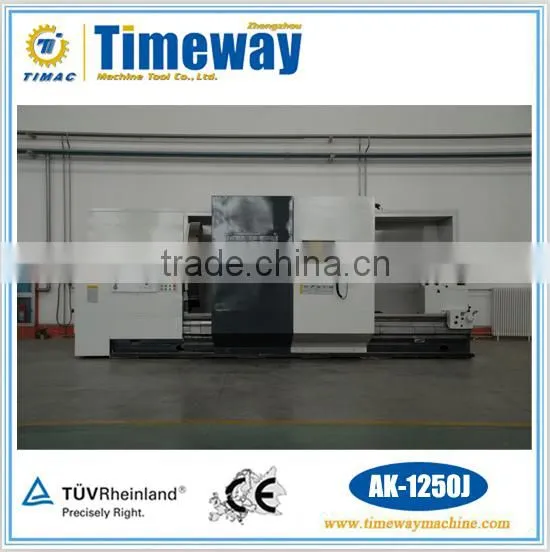

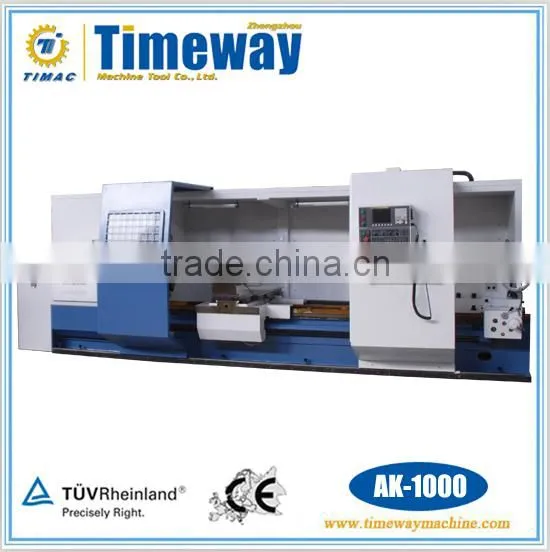

AK-1000 AK-1000J AK-1250 AK-1250J AK-1600 AK-1600J
Features:
* The series are economical large type CNC lathes.
* Spindle speeds of AK series are changed by frequency converter in 4 hydraulic gear-shifts, and it is all manually for AK-J series.
* AC servo motor is adopted in feeding system, and the tailstock is moved electrically.
* They are ideal equipment for large and middle sized complicated workpieces precision machining in batches.
Standard Configurations:
FANUC or SIEMENS CNC system,φ1000mm standard 4-jaw manual chuck, Vertical 4 positions electric tool post, Work light, Electric tailstock, Coolant system, General tools, Centralized automatic lubrication system, Operation manual(English edition).
Main technical specifications:
Specification | Unit | AK-1000 | AK-1250 | AK-1600 |
Swing over bed | mm | 1000 | 1250 | 1640 |
Swing over carriage | mm | 630 | 880 | 1250 |
Maximum length of workpiece | mm | 1500/3000/5000/6000/8000/10000/12000/14000/16000/18000 | ||
Maximum turning length | mm | 1230/2730/4730/5730/7730/9730/11730/13730/15730/17730 | ||
Span of guideway | mm | 755 | 755 | 755 |
Spindle nose |
| A2-15 | A2-15 | A2-15 |
Chuck(manual) | mm | 4-JAW CHUCK 1000MM | 4-JAW CHUCK 1000MM | 4-JAW CHUCK 1000MM |
Spindle bore | mm | 130 | 130 | 130 |
Taper hole of spindle |
| 1:20/140 | 1:20/140 | 1:20/140 |
Spindle speed and range | rpm | auto 4 gear steps,stepless speed change in step. 3.15-315 | ||
| ||||
Center height from bed | mm | 500 | 625 | 820 |
Min.feed increment of X-/Z-axis | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 |
Rapid speeds of X-/Z-axis | mm/min | 3000/6000 | 3000/6000 | 3000/6000 |
Max.travel of x-axis | mm | 520 | 580 | 630 |
Tool-post working position |
| Vertical 4-position electrical turret | ||
Indexing time | s | 2.6(V4) | 2.6(V4) | 2.6(V4) |
Indexing repeatility | mm | 0.01 | 0.01 | 0.01 |
Section of tool shank | mm | 40 | 40 | 40 |
Diameter of tailstock quill | mm | 160 | 160 | 160 |
Travel of tailstock quill | mm | 300 | 300 | 300 |
Taper hole of tailstock quill |
| Morse 6 | Morse 6 | Morse 6 |
Workpiece accuracy |
| IT6-IT7 | IT6-IT7 | IT6-IT7 |
Surface roughness |
| Ra1.6 | Ra1.6 | Ra1.6 |
Main motor power | kw | 22 | 22 | 22 |
Machine weight | kg | 9000/11000/13000 | 9000/11000/13000 | 9000/11000/13000 |
Length | mm | 4500/6000/8000 | 4500/6000/8000 | 4500/6000/8000 |
Width | mm | 2435 | 2435 | 2435 |
Height | mm | 2150 | 2150 | 2150 |
