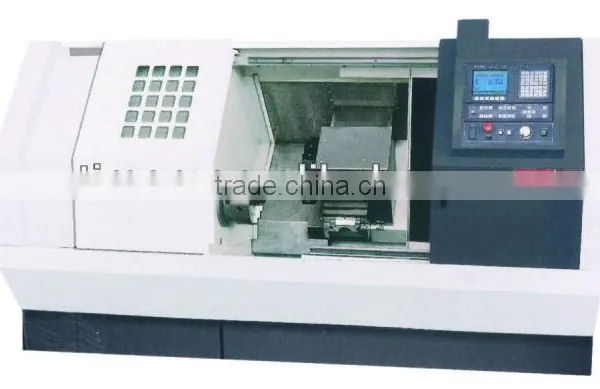

Slant Bed Type CNC Lathe/Full Function CNC Lathe
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Vertical Machining CenterUS$ 20,000 - 50,000MOQ: 1 Set -
Precision CNC Horizontal Lathe With 500mm Swing DiameterUS$ 8,000 - 30,000MOQ: 1 Set
-
"755mm Bed Width' Heavy-duty CNC Horizontal Lathe Machine/CNC Lathe Machine/High Precision Automatic CNC Lathe MachineUS$ 30,000 - 100,000MOQ: 1 Set
-
80mm Spindle Bore FANUC CNC Lathe CK-500BUS$ 4,999 - 29,999MOQ: 1 Set
-
SLANT BED TYPE CNC LATHENegotiableMOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
700mm
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
KD-40B
Voltage
As request
Power(W)
11kw
Dimension(L*W*H)
4400x2050x2000
Weight
5500kg
Certification
ISO, CE Standard
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Slant Bed Type CNC Lathe/Full Function CNC Lathe;2.Swing Over Bed:700mm;
3.FAUNC 0i mate TD controller.
| Model | Unit | KD-40B |
| Max.swing over bed | mm | 700 |
| Max.cutting dia.for disc parts | mm | 670 |
| Max.cutting dia.for axle parts | mm | 440 |
| Max.turning length | mm | 1000 |
| Max.cross travel(X) | mm | 365 |
| Max.Longitudinal travel(Z) | mm | 1050 |
| Rapid feed for Axis X | m/min | 7 |
| Rapid feed for Axis Z | m/min | 12 |
| Max.speed of spindle | r/min | 20-150,150-433,433-1300r/min |
| Spindle bore | mm | 105 |
| Hydraulic chuck | 8″ | |
| Number of tools | 8 | |
| Outside dia.of cutting tool shank | mm | 32×32 |
| Internal dia.of cutting tool shank | mm | 32 |
| Min.input | mm | 0.001 |
| Repeatability(X/Z) | mm | 0.075/0.01 |
| Bed structure | 45°slant bed integrated with stand | |
| Guide ways X&Z | Square(Z),Dovetail(X) | |
| Main motor power | kw | 11 |
| Capacity for coolant | L | 120 |
| Overall dimension(L×W×H) | mm | 4400×2050×2000 |
| Net weight | kg | 5500 |
Standard:
FAUNC 0i mate TD controller; slant bed, hydraulic chuck, hydraulic tool turret, hydraulic tail-stock(if any), precision linear rolling guide ways, high speed spindle, auto. lubricating, auto. chip removal device is optional.
