Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CNC TURNING CENTER/SLANT BED TYPE CNC LATHE AK-15M/AK-25M/AK-35M

CNC TURNING CENTER/SLANT BED TYPE CNC LATHE AK-15M/AK-25M/AK-35M

Name: CNC TURNING CENTER/SLANT BED TYPE CNC LATHE AK-15M/AK-25M/AK-35M
Brand: TIMAC
SKU: 140795898
Availability: InStock

CNC TURNING CENTER/SLANT BED TYPE CNC LATHE AK-15M/AK-25M/AK-35M thumbnail-1

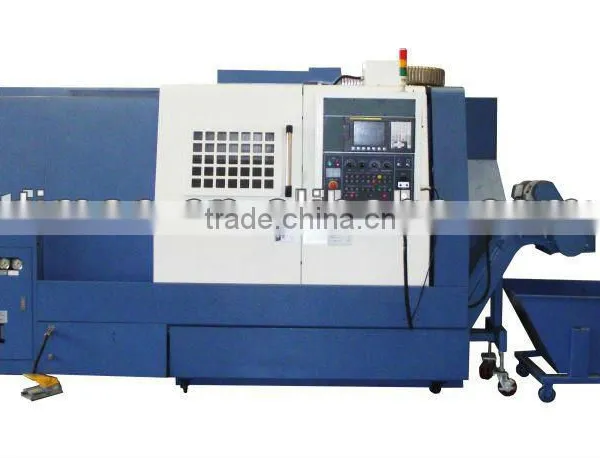

CNC TURNING CENTER/SLANT BED TYPE CNC LATHE AK-15M/AK-25M/AK-35M photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Turning Center

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Turning Center

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 440/520/660mm

Place of Origin Henan, China

Brand Name TIMAC

Model Number AK-15M,AK-25M,AK-35M

Voltage As request

Certification CE,ISO

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. CNC turning center
2. With C-axis
3. FANUC 0i TD controller
4. Servo main motor, hydraulic chuck, servo power tool turr

Specification	Unit	AK-15M	AK-25M	AK-35M
Swing over bed	mm	440	520	660
Max. turning dia.	mm	300	420	550
Max. turning dia. over carriage	mm	190	300	360
Max. turning length	mm	450	530/905	780/1530
Distance between centers	mm	600	625/1000	890/1640
Max. bar capacity	mm	52	72	80
X-axis travel	mm	180	230	305
Z-axis travel	mm	480	590/965	855/1605
Rapid traverse(x-and z-axis)	m/min	18/20	12/15	12/15
Cutting feed(x-and z-axis)	mm/min	5000	5000	5000
Hand feed(x-and z-axis)	mm/min	1260	1260	1260
Spindle speed	rpm	50-4500	35-3500	25-2500
Spindle nose	mm	A2-6	A₂-8	A₂-8
Size of chuck	inch	8"	10"	12"
Spindle front end bearing(dia.)	mm	100	130	160
Spindle bore(dia.)	mm	62	87	92
C-axis indexing(incremental unit)	mm	0.001	0.001	0.001
Number of tool stations		8	12	12
Indexing time	s	0.58	0.4	1
Tool shank size	mm	25x25	25×25	25×25
Boring bar shank dia.	mm	40	40	50
Tool speed	rpm	40-4000	40-4000	40-4000
Main spindle motor	kw	9.0-11	18.5/15	30/22
X-axis servo motor	kw	1.6	3	3
Z-axis servo motor	kw	3	3	4
Tool driving motor	kw	α3/10000i	α3/10000i	α3/10000i
Max travel of tailstock	mm	460	490/865	760/1500
Tailstock quill dia.	mm	80	85	110
Tailstock travel	mm	130	80	100
Tailstock quill taper hole		MT-4	MT-5	MT-5
Coolant capacity	L	200	200/230	200/250
Power	kw	25	38	46
X-axis positioning accuracy R/B/A	mm	0.01/0.012/0.025
Z-axis positioning accuracy R/B/A	mm	0.007/0.006/0.016
R: Repeat positioning accuracy, B: Reverse warp, A: Positioning accuracy

Standard Accessories:

FANUC 0i TD controller; FANUC servo main motor, FANUC servo type feeding motor for both X,Z axes; With C axis; NSK bearings; Hydraulic chuck from South Korea; Servo power tool turret from Italy; Hydraulic tailstock; Automatical lubricating unit; Cooling system; General tools; Auto. chip conveyor; Operational manua(English edition).
