Horizontal CNC Lathe
- 300 Set / Sets per Month
- China port
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Brand Name: | TIMAC | Model Number: | TL362S, TL502S(SA), TL504S(SA), TL634S, TL635S |
Product Description
Specifications

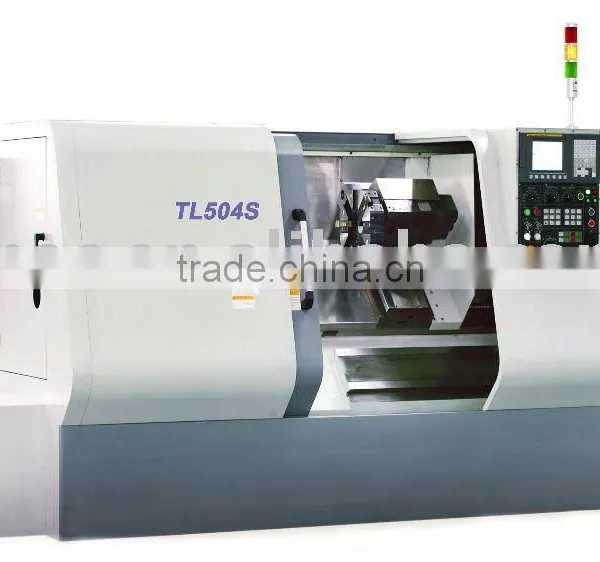

Horizontal CNC LatheHorizontal CNC Lathe
CNC Lathe
*Mechatronics design, small size, compact structure, beautiful shape.
*Horizontal slant bed, rectangular laminating guideways, high rigidity, no crawling.
*FANUC 0i-mate numerical control system, and servo system in direction of vertical and horizontal, reliable performance.
*Frequency conversion main motor with high performance and strong power possesses great cutting capacity.
*High rigidity headstock design and imported spindle bearings, suitable for final machining.
*Elecrical turret with eight numbers of tools, automatic tool change can be realized.
*Tailstock adopts center structure of arbor type, high rigidity, programmable.
*Postpositional chip conveyor, small floor space.
*High precision and high reliability.
Model | Unit | TL362S | TL502S(SA) | TL504S(SA) | TL634S | TL635S | ||
Cutting Ranges | Max. swing diameter over bed | mm | Φ510 | Φ505 | Φ505 | Φ630 | Φ630 | |
Max. swing diameter over carriage | mm | Φ320 | Φ340 | Φ340 | Φ450 | Φ450 | ||
Max. turning diameter | mm | Φ360 | Φ500 | Φ500 | Φ630 | Φ630 | ||
Max. turning length | mm | 500 | 500 | 1000 | 1000/980* | 1500/1450* | ||
Max. stroke X/Z | mm | 200/600 | 250/600(260/600) | 250/1100(260/1100) | 325/1100 | 325/1600 | ||
Rapid traverse X/Z | m/min | 24(linear guideway) | 8/12 | 8/12 | 8/12 | 8/12 | ||
Feed speed X/Z | mm | 1-8000 | 1-8000 | 1-8000 | 1-8000 | 1-8000 | ||
Spindle | Spindle speed | rpm | 50~3500 | 2500/3000(SA) | 2500/3000(SA) | 2000/1000* | 2000/1000* | |
Model of spindle nose | ISO | A2-6 | A2-6 | A2-6 | A2-8/A2-11* | A2-8/A2-11* | ||
Dia. of through spindle bore | mm | Φ67 | Φ65 | Φ65 | Φ85/Φ106* | Φ85/Φ106* | ||
Taper of spindle taper bore | metric | 80 | 80 | 80 | 100/120* | 100/120* | ||
Distance from spindle center to floor | mm | 1000 | 1000 | 1000 | 1100 | 1100 | ||
Hydraulic Tailstock | Dia. of tailstock sleeve | mm | Φ100 | Φ100 | Φ100 | Φ130 | Φ130 | |
Stroke of tailstock sleeve | mm | 100 | 100 | 100 | 100 | 100 | ||
Tailstock bore’s taper bore | morse | morse5# | 4 #/5#(SA) | 4 #/5#(SA) | morse5# | morse5# | ||
HydraulicTurret | Number of tools | station | 8 | 8 | 8 | 8 | 8 | |
Model of tool shank | mm | 25×25 | 25×25 | 25×25 | 32×25 | 32×25 | ||
Max. dia. of boring shank | mm | Φ40 | Φ40 | Φ40 | Φ50 | Φ50 | ||
Machine Accuracy | Positioning accuracy | X | mm | 0.008 | 0.016 | 0.016 | 0.016 | 0.016 |
Z | mm | 0.01 | 0.025 | 0.025 | 0.025 | 0.032 | ||
Repeatability accuracy | X | mm | 0.005 | 0.007 | 0.007 | 0.007 | 0.007 | |
Z | mm | 0.006 | 0.01 | 0.01 | 0.01 | 0.013 | ||
Machine Dimensions(L×W×H) | mm | 3148x1500x1700 | 2700x1525x1650 / 2997x1500x1750(SA) | 3200X1525X1650 / 3735X1500X1750(SA) | 3450x1680x2090 | 3950x1680x2090 | ||
Power capacity | KVA | 20 | 20 | 20 | 25 | 25 | ||
Weight of machine(net) | Kg | 4000 | 4000 | 4500 | 7500/8000 | 9000/9500 | ||
CNC System | FANUC 0i mate{SIMENS 802D sl} | FANUC 0i mate{SIMENS 802D sl} | FANUC 0i mate{SIMENS 802D sl} | FANUC 0i mate{SIMENS 802D sl} | FANUC 0i mate{SIMENS 802D sl} | |||
Power of main motor | Kw | 7.5 | 11/15 | 11/15 | 15/18.5 | 15/18.5 | ||
Torque of servo motor X/Z | Nm | 7/7 | 7/11 | 7/11 | 11/20 | 11/20 | ||
Hydraulic chunk | inch | Solid8"{Hollow8"} | Solid10"{Hollow10"} | Solid10"{Hollow10"} | Solid12"{Hollow12"} | Solid12"{Hollow12"} |

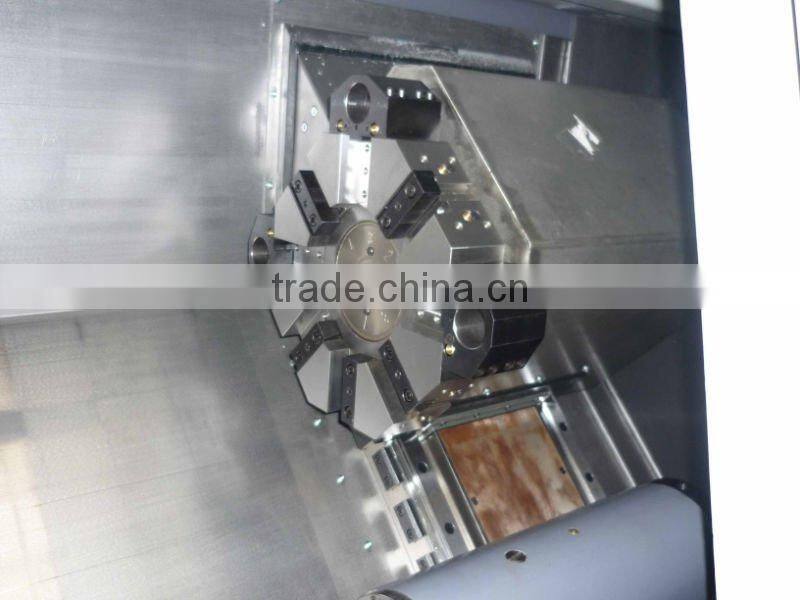

Hydraulic tool turret

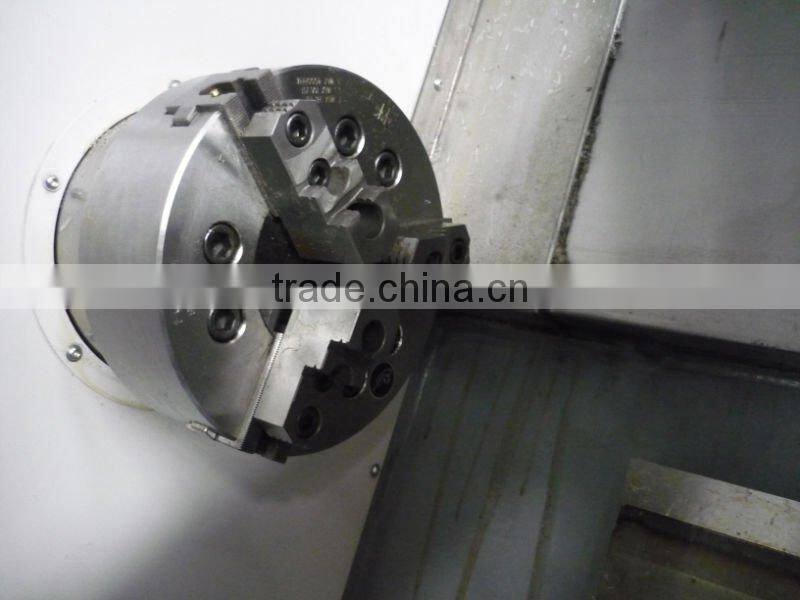

Hydraulic chuck

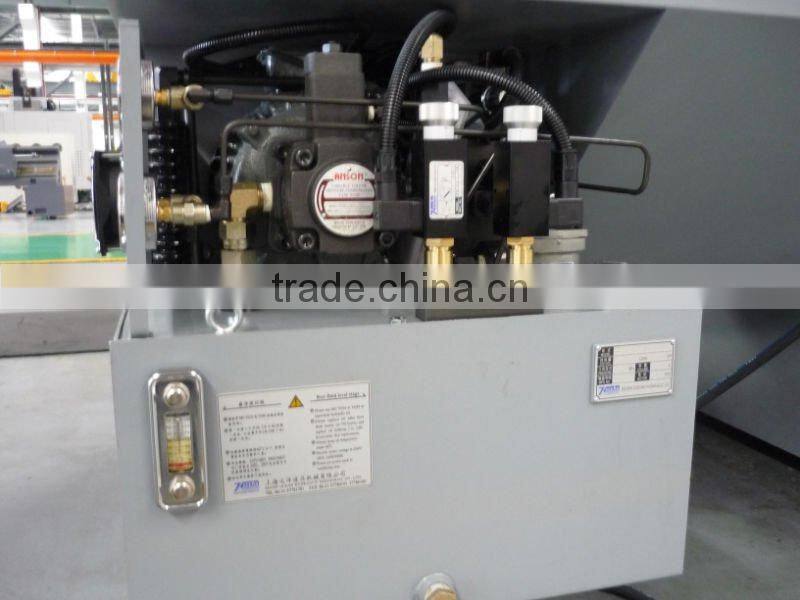

Hydraulic station

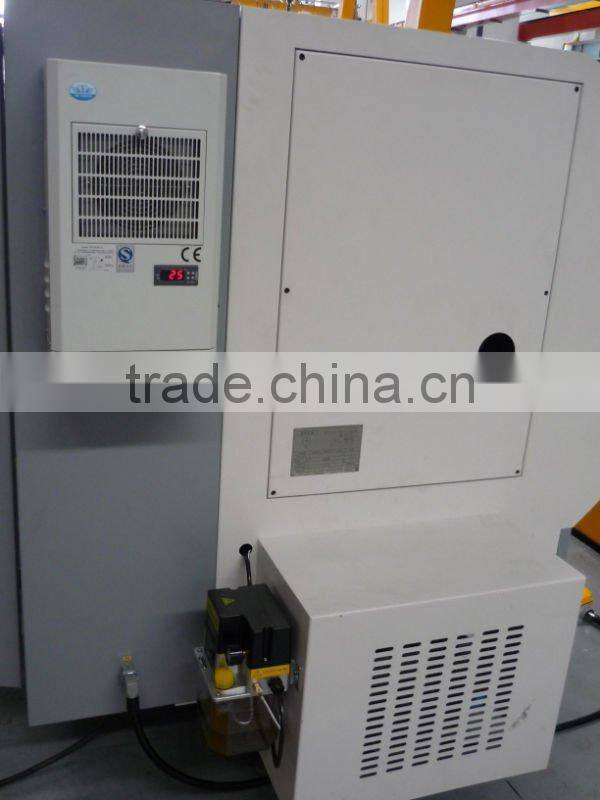

Air conditioner

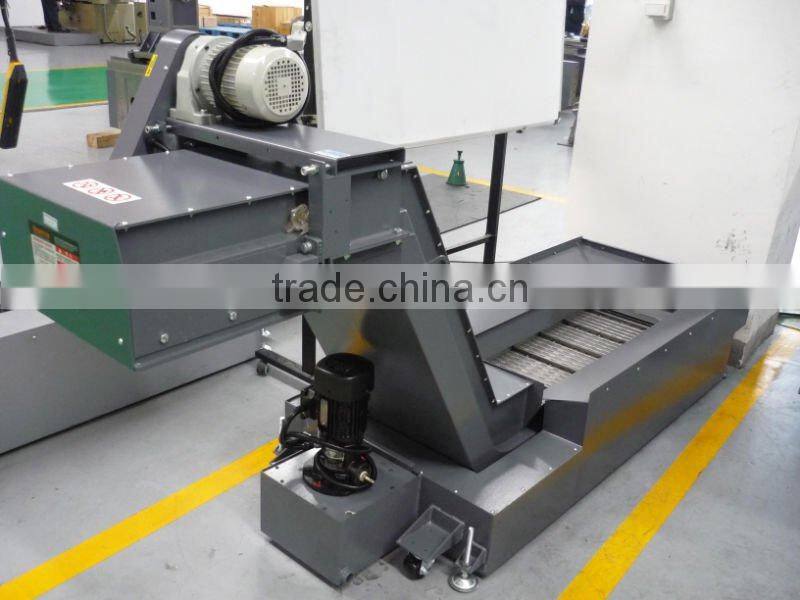

Auto. chip conveyor
