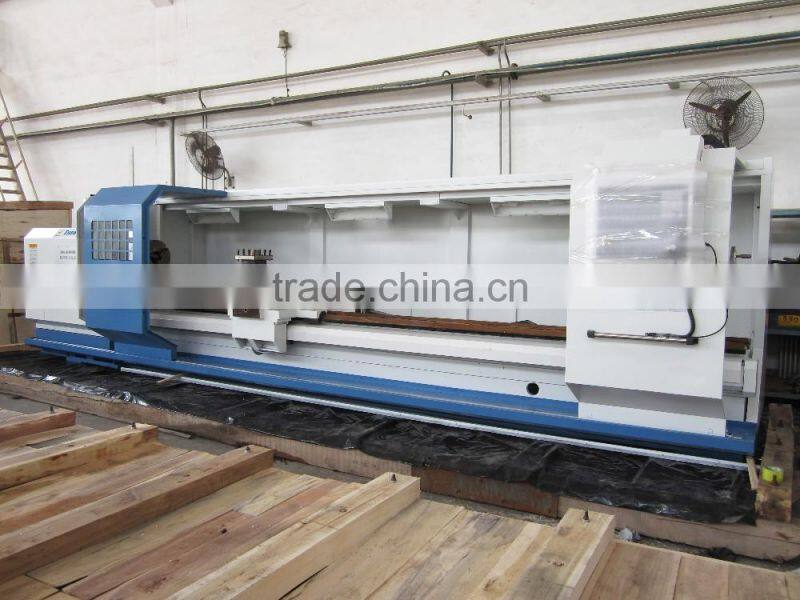

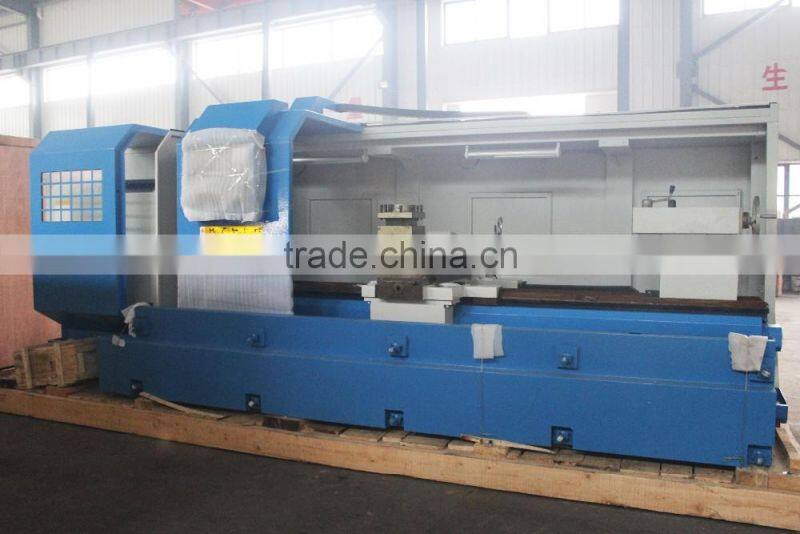

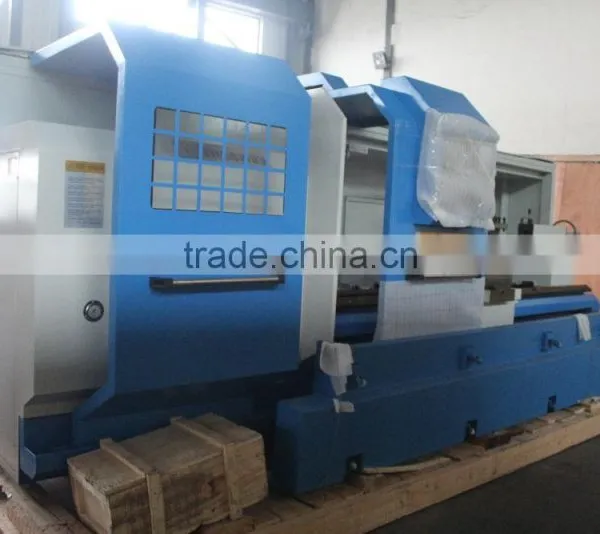

CNC Heavy-duty Horizontal Lathe Machine
AK-800B AK-800BJ AK-1000B AK-1000BJ
Features:
1. The series lathe are economical and practical CNC lathe. With optimized structures, unfailing performance, high quality, simple programming, and easy handling, they are suitable for turning of complicated shaft, sleeve, and disk type workpiece such as turning of internal and external cylindrical, conical, arc surfaces and various threads, and even drilling, boring and reaming holes. They are specially fir for turning of diversified workpieces on small and medium batches.
2. They are of high versatility, high efficiency, low inferiority and good conformability. So to be widely used in various trades, such as automobile industry, petroleum industry, military industry, and so on.
3. AK...B series accomplish step-less spindle speed changing by means of main motor frequency conversion and 4-shift hydraulic gear change.
4. AK...BJ series obtain 18 steps speed all manually.
Technical Parameter:
Specification | Unit | AK-800B | AK-1000B | ||
AK-800BJ | AK-1000BJ | ||||
Swing over bed | mm | 800 | 1000 | ||
Swing over carriage | mm | 480 | 680 | ||
Maximum length of workpiece | mm | 1000/1500/2000/3000/4000/5000 | |||
Maximum turning length | mm | 850/1350/1850/2850/3850/4850 | |||
Span of guideway | mm | 600 | |||
Spindle nose |
| C11(C15) | |||
Chuck(Manual) | mm | 400 | |||
Spindle bore | mm | 100(140) | |||
Taper hole of spindle |
| 1:20/120(1:20/150) | |||
Spindle speed and range | rpm | AK-800B,AK-1000: auto 4 gear steps,stepless speed change in step. 8-800 | |||
rpm | AK-800BJ,AK-1000BJ: 18 gear speed, 6-750 | ||||
Tool-post working position |
| Vertical V4(Standard) | |||
Turret specification size | mm | 240*240 | |||
Max.allowance cutting power | N | 14700 | |||
Max.allowance longitudinal feed force | N | 5880 | |||
Max.allowance transverse feed force | N | 4078 | |||
Rapid speeds of X-/Z-axis | m/min | 3-4/6-8 | |||
Section of tool shank | mm | 32 | |||
Diameter of tailstock quill | mm | 100 | |||
Travel of tailstock quill | mm | 250(Standard) | |||
Taper hole of tailstock quill |
| Morse 6 | |||
Automatic lubrication installation |
| AM0-II-150S | |||
Gear wheel pump type |
| CB-B6 | |||
Gear wheel pump rated pressure | Mpa | 2.54(25kgf) | |||
Gear wheel pump flow | L/min | 6 | |||
Gear wheel pump electric machine type |
| AO2-7124 | |||
Oil cylinder working pressure | Mpa | 0.98-1.176(10-12kgf) | |||
Cooling pump type |
| YWP18GA | |||
Cooling pump the motor power | W | 120 | 120 | ||
Cooling pump flow | L/min | 45 | 45 | ||
Main motor(frequency conversion)type |
| CTB4015BJB50-6L3 | CTB4015BJB50-6L3 | ||
Main motor power | kw | 15 | 15 | ||
Main motor speed | r/min | 970 | 970 | ||
Turret motor power | w | 180(4-position) | 180(4-position) | ||
Turret motor speed | r/min | 1400 | 1400 | ||

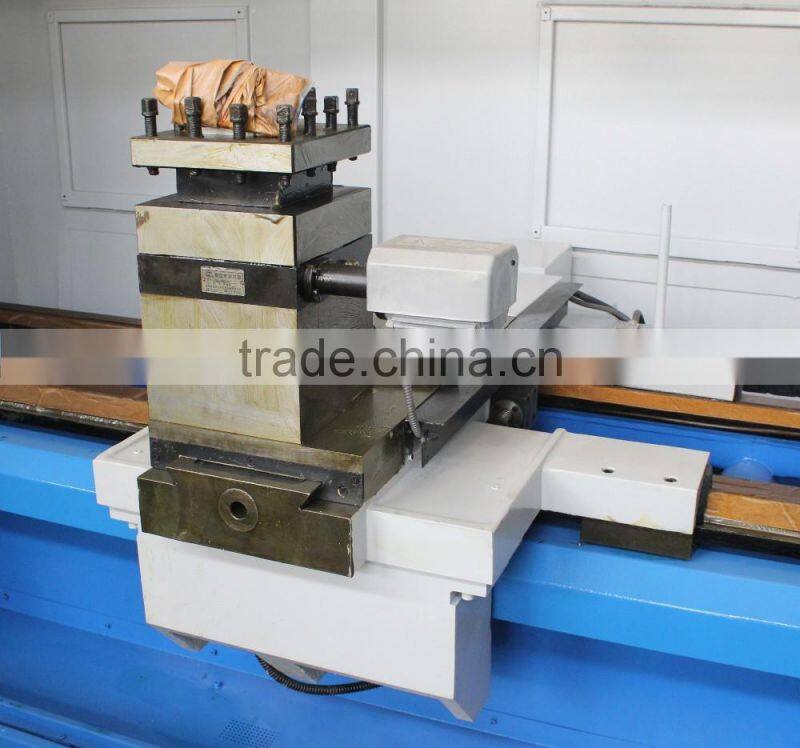

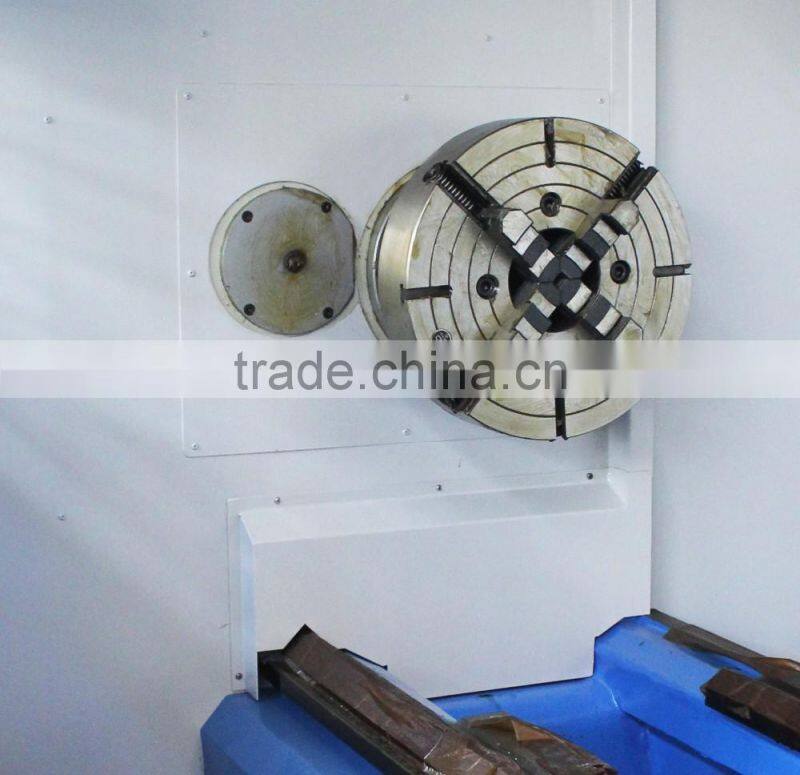

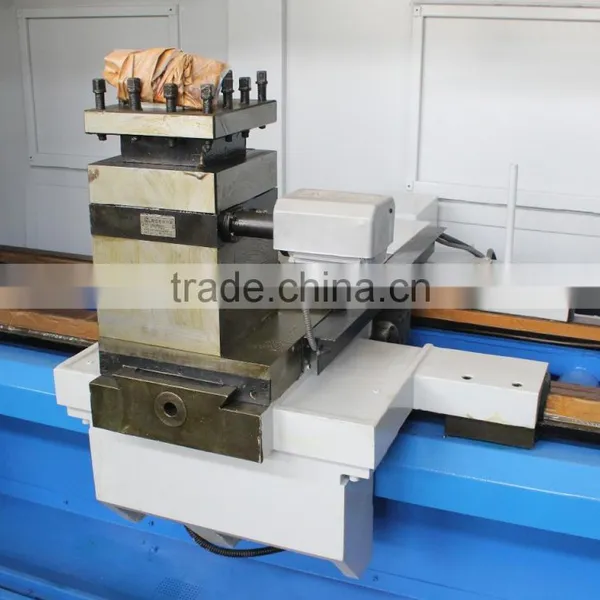

• Spindle with 4-jaw Chuck(Φ400mm) • Vertical 4-station Electronic Tool-post

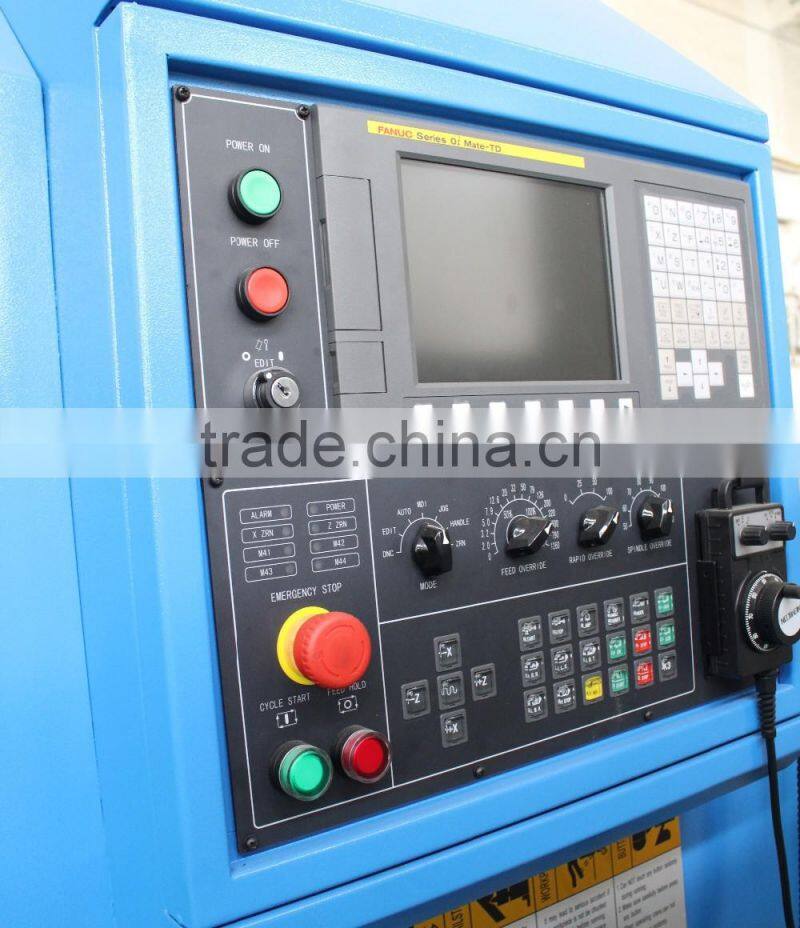

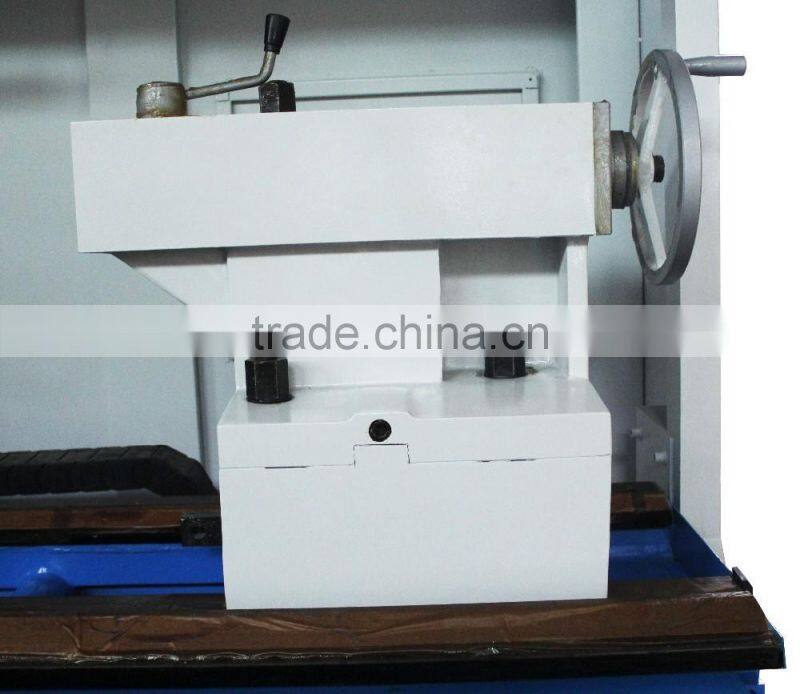

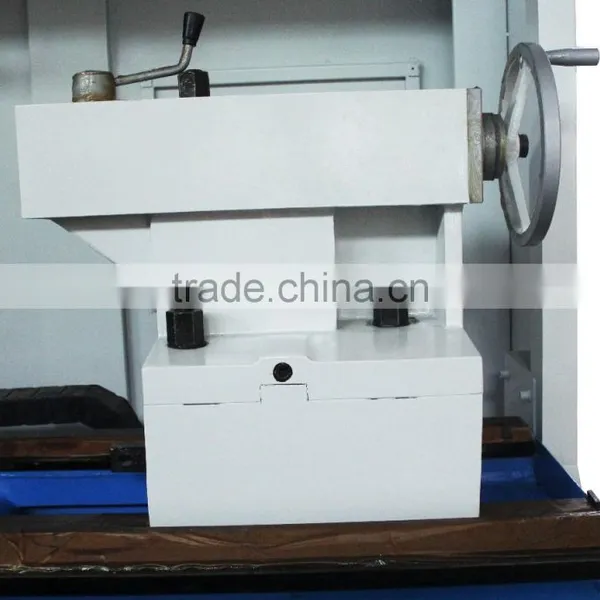

• Manual Tailstock • FANUC CNC System

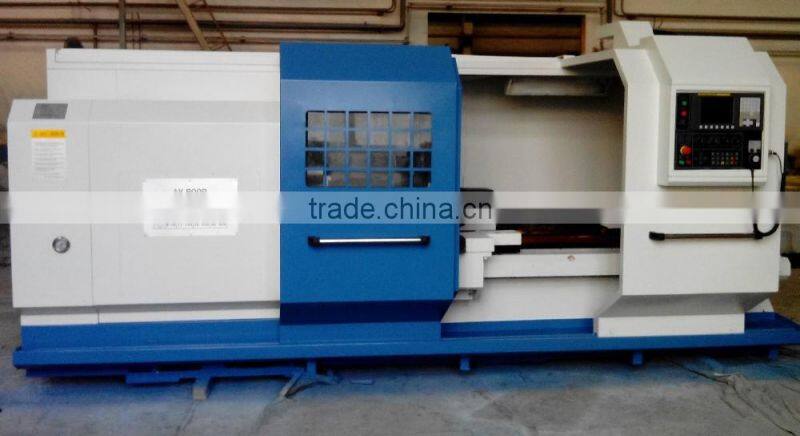

AK-800B:
| |
|

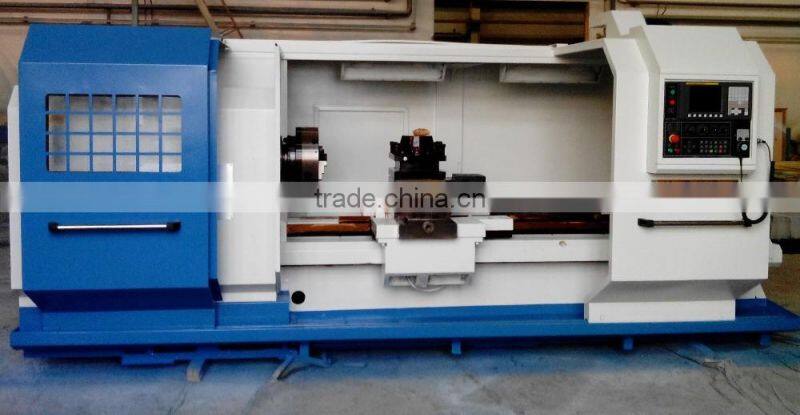

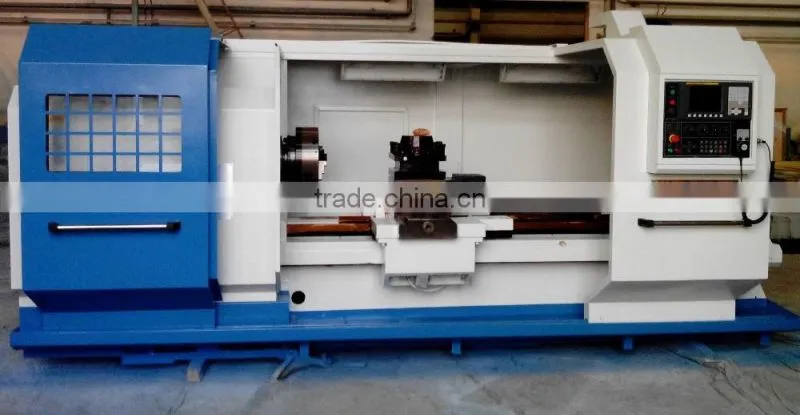

AK-1000B:
