Help CenterFlat Bed Type CNC Lathe Machine/"500mm Swing Over Bed" CNC Lathe Machine
Related Products
-
Horizontal CNC Heavy Duty Lathe Machine / Large Sized CNC Horizontal LatheUS$ 40,000 - 100,000MOQ: 1 Set -
Heavy Duty CNC Lathe / Large Sized CNC Horizontal LatheUS$ 30,000 - 100,000MOQ: 1 Set
-
"550mm Bed Width" High Precision CNC Horizontal Lathe MachineUS$ 20,000 - 65,000MOQ: 1 Set
-
Large Sized CNC Lathe / 800mm Swing Heavy Duty CNC Horizontal LatheUS$ 30,000 - 100,000MOQ: 1 Set
-
CNC Lathe CK6140B, CK6150BUS$ 20,000 - 50,000MOQ: 1 Set
Specifications

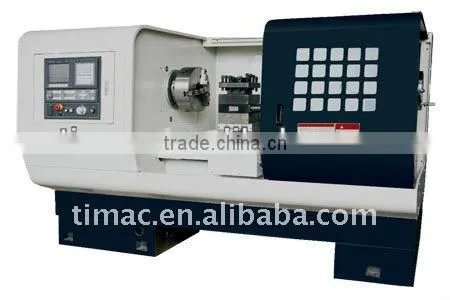

1.Flat bed type CNC lathe2.660mm swing
3.105mm large spindle bore
4.Bed width 405mm
5.max. 3meters center distance
Features:
1. Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.
4. The spindle system is high in the rigidity and accuracy.
Specification |
CK-660 |
CK-560 |
CK-500 |
Max. swing over bed |
Ø660 mm |
Ø560 mm |
Ø530 mm |
Max. swing over carriage |
Ø430 mm |
Ø330 mm |
Ø310 mm |
Width of bed |
405 mm |
||
Maximum turned length |
750/1000/1500/2000/3000 mm |
||
Max. turning length |
650/900/1400/1900/2900mm |
||
Over gap |
Ø870 mm |
Ø780 mm |
|
Effective length of gap |
230 mm |
||
Spindle nose |
D8 |
A2-8 |
|
Spindle bore |
Ø105 mm |
Ø80 mm |
|
Cone hole diameter and taper of spindle hole |
Ø113 1:20 |
MT.No.7 |
|
Steps of spindle speed(Manual) |
4(Variable Within Each Step) |
||
Range of spindle speed |
27~135,55~270,160~805,325~1630 r/min |
||
Rapid feed for Axis Z |
10m/min |
||
Rapid feed for Axis X |
8 m/min |
||
Max. travel of Axis Z |
720/970/1270/1970/2970mm |
||
Max. travel of Axis X |
365 mm |
300 mm |
320 mm |
Min. input |
0.001 mm |
||
Tool post stations |
4-ways or 6-ways |
||
Tool cross section |
32×32 mm |
||
External diameter |
Ø75 mm |
||
Taper of bore |
MT.No.5 |
||
Max. Traverse |
150 mm |
||
X/Z motor torque |
10/10Nm(750~2000) 10/22Nm(3000) |
10/10Nm(750~2000) |
|
Power of main motor |
11 KW |
7.5 KW |
|
Power of cooling pump |
90W |
||
Overall dimensions(L×W×H) |
2250/2500/3000 /3500×1250×1580 mm |
2250/2500/3000/3500 /4500×1200×1520 mm |
|
Net weight |
2800/3100/3700/4300 /5300kg |
2700/3000/3500/4000 /4600kg |
|
The items with “*” are only for GAP BED series. | |||
Standard:
FANUC 0i mate TD CNC system, FANUC servo feed motor, Inverter main motor, 3 jaw chuck, 4 station electric tool post, Coolant supply system, Auto. Lubrication unit, Lighting unit, General tools, Operation and maintenance manuals (English edition), etc.
Optional:
GSK980TD controller, 6 station electric toolpost, Hydraulic chuck, Hydraulic tailstock
