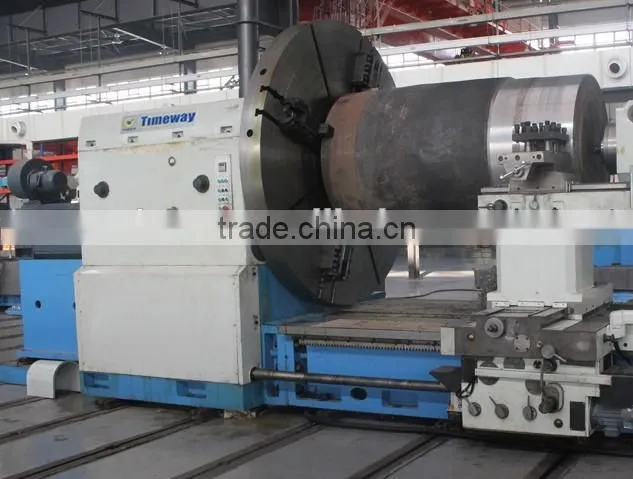

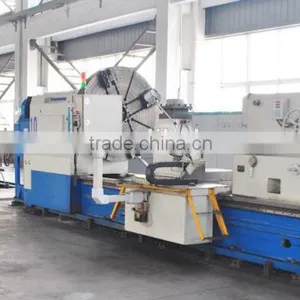

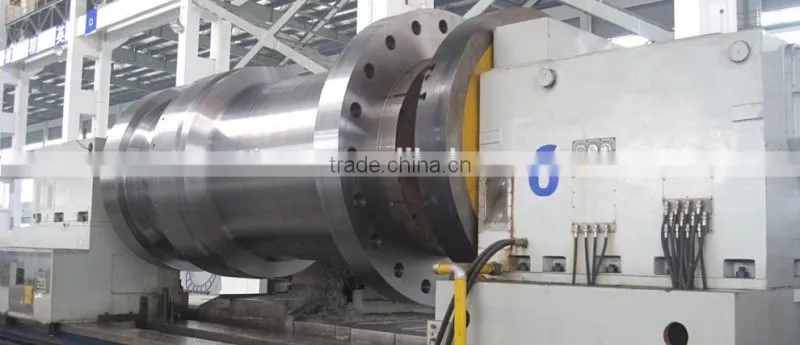

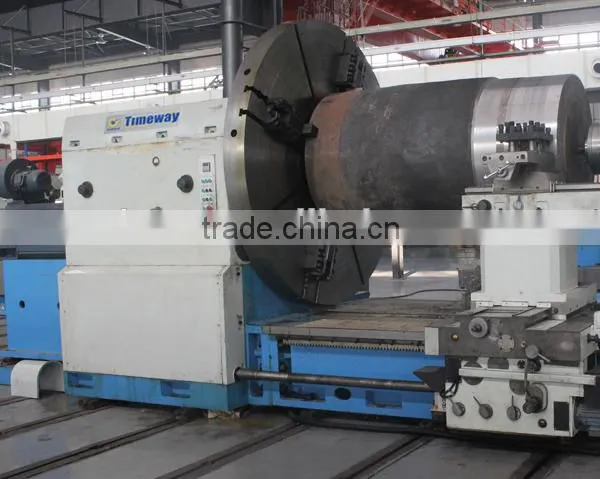

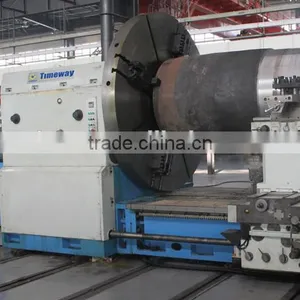

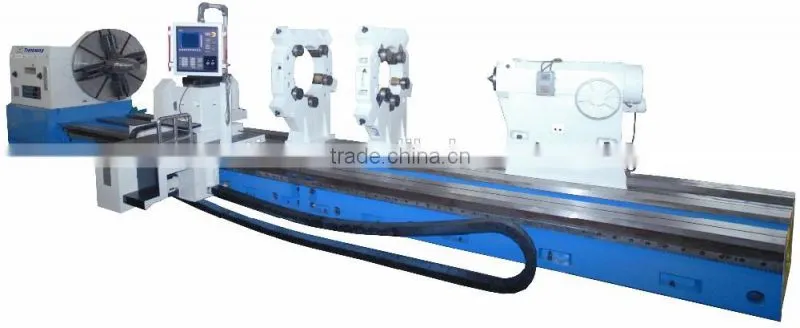

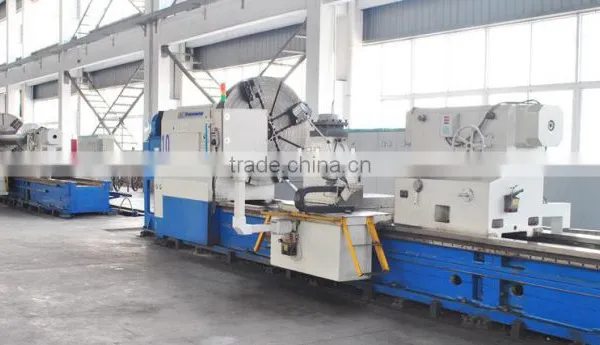

Extra Heavy-duty CNC Horizontal Lathe(32 ton)

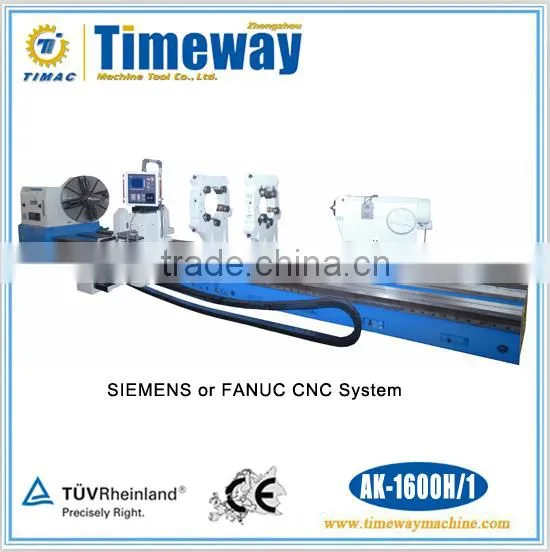

AK-1600H/1 AK-2000H/1 AK-2500H/1
Technical Parameter:
| Specification | Unit | AK-1600H/1 | AK-2000H/1 | AK-2500H/1 |
| Max.swing dia. over bed | mm | 1600 | 2000 | 2500 |
| Max.torque of face chuck | kg.m | 8000 | 8000 | 8000 |
| piece length | mm | 3000-18000(according to customer's need) | ||
| Max.swing over cross slide | mm | 1250 | 1600 | 2200 |
| Form of bed guideway | 3 slideways | 3 slideways | 3 slideways | |
| Width of bed | mm | 1600 | 1600 | 1600 |
| Spindle speed | rpm | 0.8-160(stepless) | 0.8-160(stepless) | 0.8-160(stepless) |
| Face chuck diameter | mm | 1600 | 1600 | 1600 |
| Range of longitudinal feed | mm/min | 1-4000 | 1-4000 | 1-4000 |
| Infeed stroke | mm | 800 | 800 | 800 |
| Range of cross feed | mm/min | 1-2000 | 1-2000 | 1-2000 |

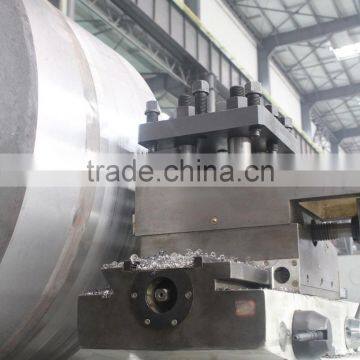

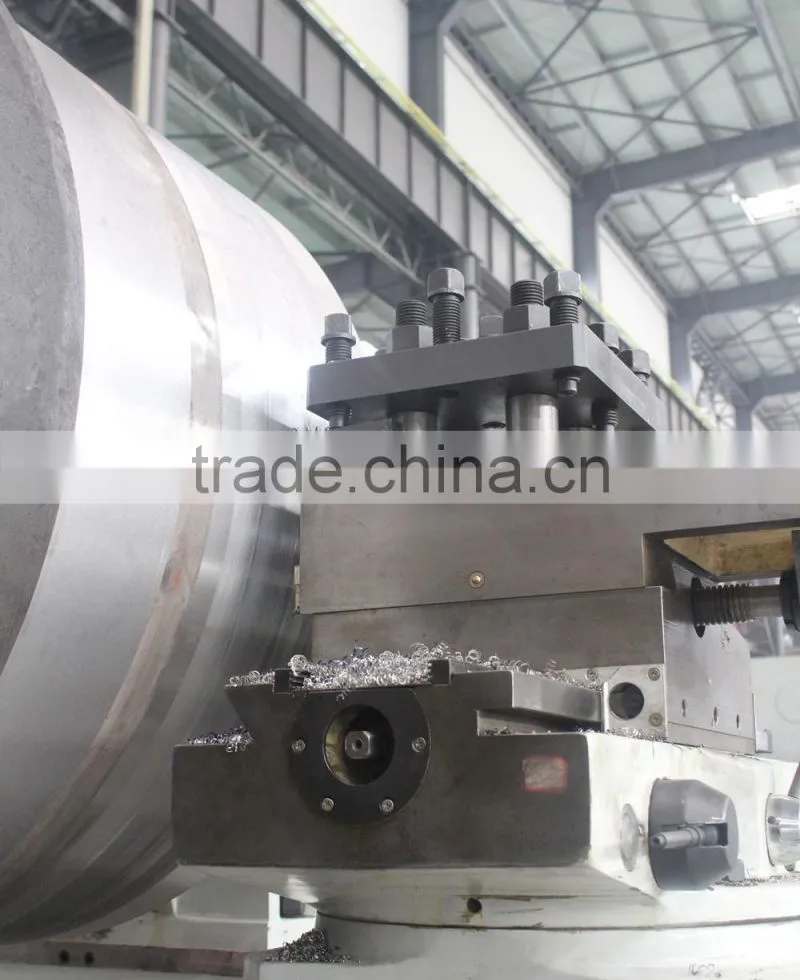

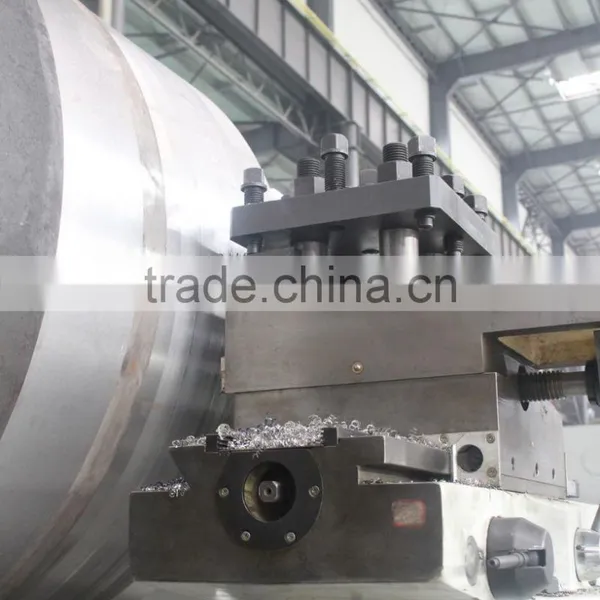

| Tool post | Vertical 4-position | Vertical 4-position | Vertical 4-position | |
| Diameter of tailstock quill | mm | 300 | 300 | 300 |
| Travel of tailstock quill | mm | 300 | 300 | 300 |
| Taper hole of tailstock quill | 1:07 | 1:07 | 1:07 | |
| Rapid traverse of tailstock | mm/min | 3000 | 3000 | 3000 |
| Rapid traverse of sleeve | mm/min | 664 | 664 | 664 |
| Max.weight of workpiece | kg | 32000 | ||
Features:
1. This is a type of universal NC and heavy horizontal lather which bearing 32 ton,is applicable to turning external and internal cylindrical surfaces, oil grooves, cutting off, boring hole,turning inside and outside conical,cylindrical , discoid parts and different kinds of screw thread to axes parts of different materials with high-speed steel and hard alloy steel cutters.
2. This machine bed's structure is integral BOX-SHAPED and three strip rectangular guide way , and it is found once by high quality cast iron (HT300),through two-aged processing ,stability is good.
3. Width guide way surface(1600mm), good rigidity, strong anti-vibration ability;
4. It is adopt inlay steel guide way and accurate ground by import guide way grinder, guarantee the machine tool's longevity, high precision and best receptivity.
5. The machine master drive institution is dragged by 75kw DC electromotor, and it adopt the mode of speed regulation of adjust magnetism commix with adjust pressure, total ratio of speed regulation is 1: 22.2, the institution's speed regulation progression is third class, the syntheses speed regulation ratio of mechanism and electric is 1:200,thereby made the master axes obtain infinite class speed variation scope 0.8 ~ 160r / min.
6. The Z axe feeding system adopt import precision gear rack structure, the X axe feeding system adopt high precision ball screw, guarantee the stability of process precision.
Max. Weight of Workpiece: 32T
Max. Weight of Workpiece: 63T
