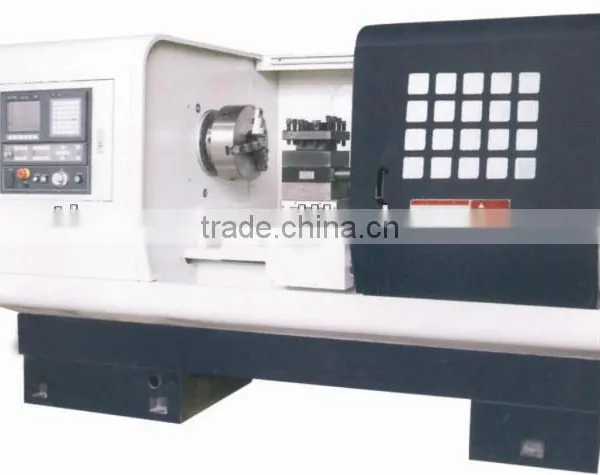

Flat Bed Type CNC Lathe/Precision Flat Bed Type CNC Lathe
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Extra Heavy-duty CNC Horizontal Lathe(32 Ton)/Large Sized CNC Horizontal LatheUS$ 100,000 - 500,000MOQ: 1 Set -
AK-630A Economic CNC Horizontal Lathe/Flat Bed Type CNC LatheUS$ 20,000 - 50,000MOQ: 1 Set
-
CNC TURNING CENTER/SLANT BED TYPE CNC LATHE AK-15M/AK-25M/AK-35MNegotiableMOQ: 1 Set
-
Fission Bed Heavy Duty CNC Horizontal Turning MachineUS$ 200,000 - 500,000MOQ: 1 Set
-
Horizontal CNC LatheUS$ 15,000 - 35,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
500/560/600mm
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
CK-660,CK-500B,CK-560B
Voltage
As request
Power(W)
7.5/11kw
Certification
CE,ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Flat bed type cnc lathe2. Swing over bed 500, 560, 660mm
3. Different turning length
4. FANUC 0i mate TD controller
| Specification | Unit | CK-500B | CK-560B | CK-660 |
| Max. swing dia. over bed | mm | 500 | 560 | 660 |
| Max. swing dia. over carriage | mm | 310 | 330 | 430 |
| Center distance | mm | 750/1000/1500/2000/3000 | ||
| Max. turning length | mm | 650/900/1400/1900/2900 | ||
| Spindle nose | A2-8 | D8 | ||
| Spindle bore | mm | 80 | 105 | |
| Spindel taper | MT.No7 | 113 1:20 | ||
| Steps of spindle speed | 2steps(Variable) | 4steps(Variable) | ||
| Range of spindle speed | rpm |
400~1600(high), 50~400(low) |
27~135, 55~270, 160~805, 325~1630 |
|
| Rapid feed for axis Z | m/min | 10 | ||
| Rapid feed for axis X | m/min | 8 | ||
| Max. travel of axis Z | mm | 720/970/1270/1970/2970 | ||
| Max. travel of axis X | mm | 300 | 320 | 365 |
| Min. input | mm | 0.001 | ||
| Tool post stations | 4/6 | |||
| Tool section | mm | 32×32 | ||
| Tailstock sleeve diameter | mm | 75 | ||
| Tailstock sleeve taper | MT.No.5 | |||
| Tailstock sleeve travel | mm | 150 | ||
| X/Z motor torque | Nm | 7.5/10, 7.5/22, | 10/10,10/22 | |
| Main motor power | kw | 7.5 | 11 | |
| Cooling pump power | w | 90 | ||
| Overall dimension(L×W×H) | mm |
2250/2500/3000/3500/4500 ×1200×1520 |
2250/2500/3000/3500/4500 ×1250×1580 |
|
| Net weight | kg | 2700/3000/3500/4000/4600 | 2800/3100/3700/4300/5300 | |
Standard Accessories:
FANUC 0i mate TD CNC controller, FANUC servo feed motor, Inverter main motor, 3 jaw chuck, Electric tool post, Coolant supply system, Auto. Lubrication unit, Lighting unit, General tools, Operation and maintenance manuals (English edition), etc.
Optional Accessories:
Other brand CNC controller, 6 stations electric tool post, Hydraulic solid chuck, Hydraulic hollow chuck, Hydraulic tailstock.
