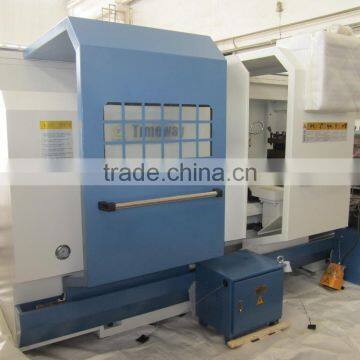

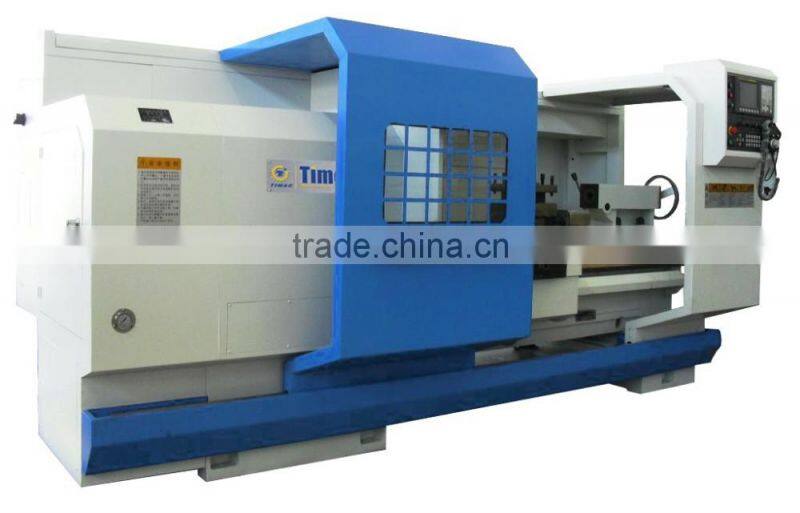

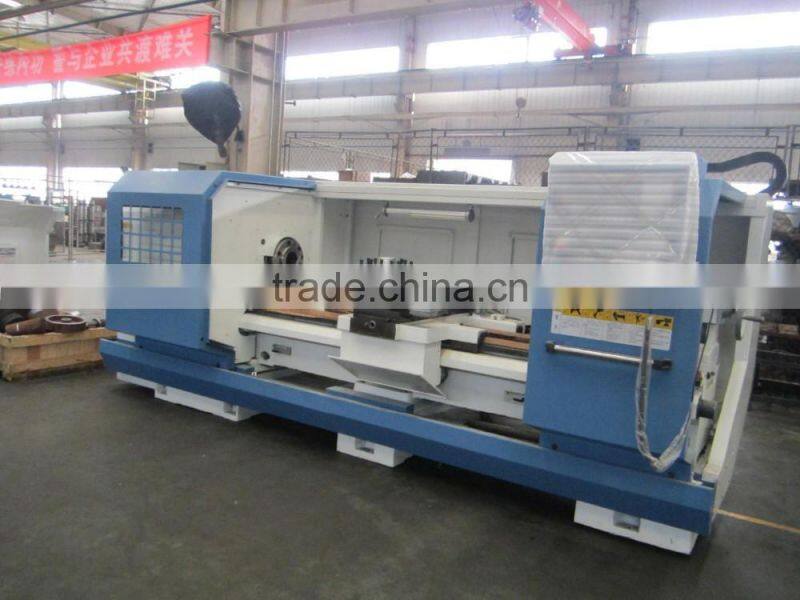

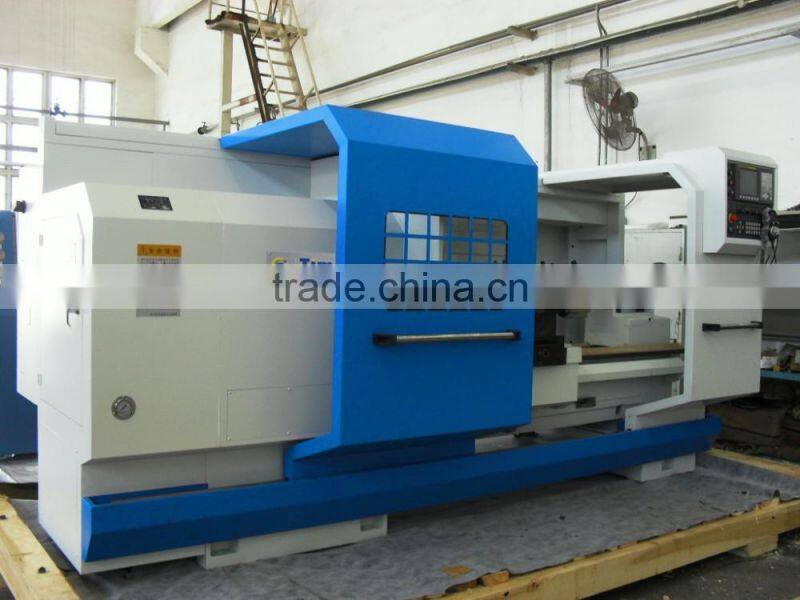

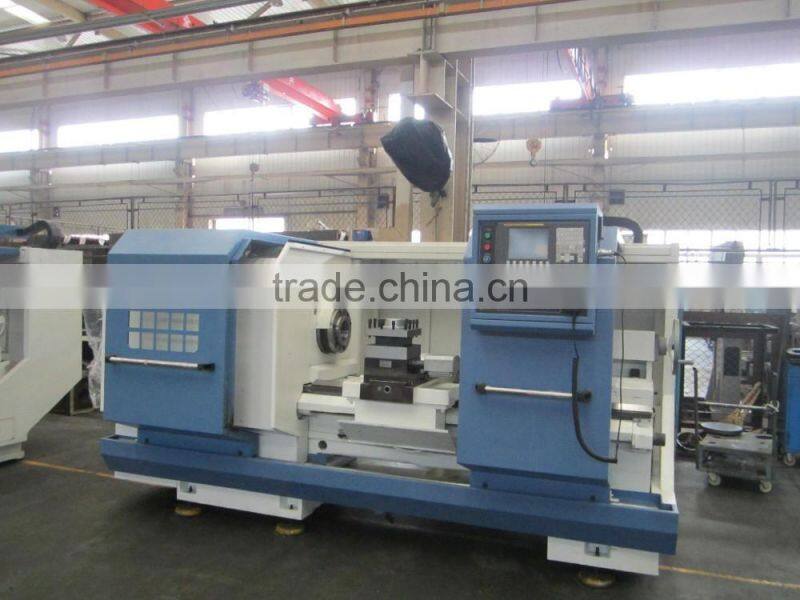

800mm Swing Flat Bed Type CNC Lathe Machine

CNC Horizontal Lathe

630-series   800-series    940-series

Features:

• Lots of experience went into the design and construction of this machine bed featuring large guides that are hardened, ground and counter-laminated.
• Headstocks of main spindle and gears were constructed to ensure optimum temperature balance and minimum heat influence.
• The heavy duty tailstock is easy to handle and features high clamping force.
• Wide V-block guides, hardened and ground-superior rigidity of the lathe flat bed across all models of this series.
• Automatic central lubrication for simplified maintenance, powerful coolant system ensure machining accuracy.
• High torque drives and preloaded ball screw on all axes.

• AK series accomplish step-less spindle speed-changing by means of main motor frequency conversion and 4-shift hydraulic gear-change.

• AK…J series obtain 18 speeds all manually.

• AK…A series spindle speed changing introduces 6-shift hydraulic gear-change and 3-shift manual gear-change to obtain 12 speeds.

Machine Tool Accuracy Standard:(mm)

Techncial Parameter:

Standard Accessories:

FANUC or SIEMENS or GSK CNC system, Manual 3 jaw chuck(325mm), Vertical 4 station electric tool post, Coolant system, Auto. Lubrication unit, Lighting unit, Manual moving tailstock, Semi-closed guard, Tool box and tools, Operator manuals (English edition), etc.

Optional Accessories:

6 station electrical tool post;

Hydraulic solid chuck;

Hydraulic hollow chuck;

Hydraulic tailstock.

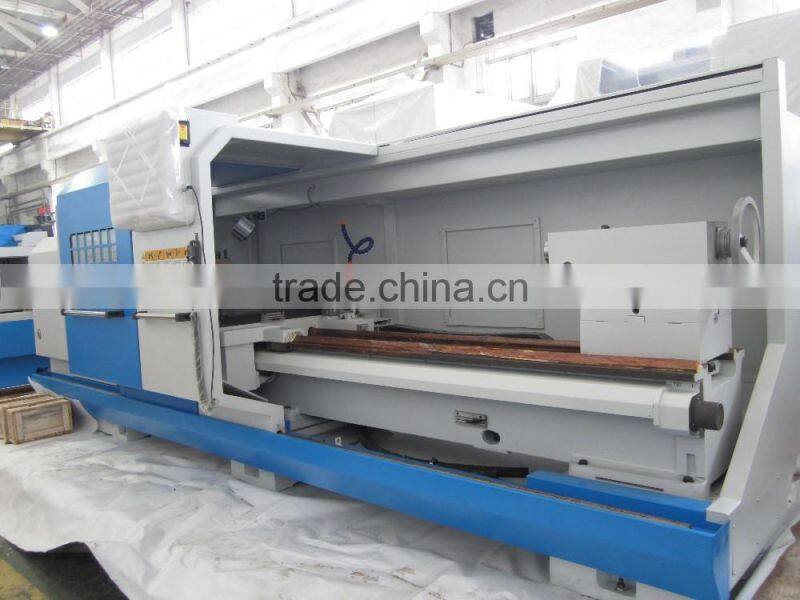

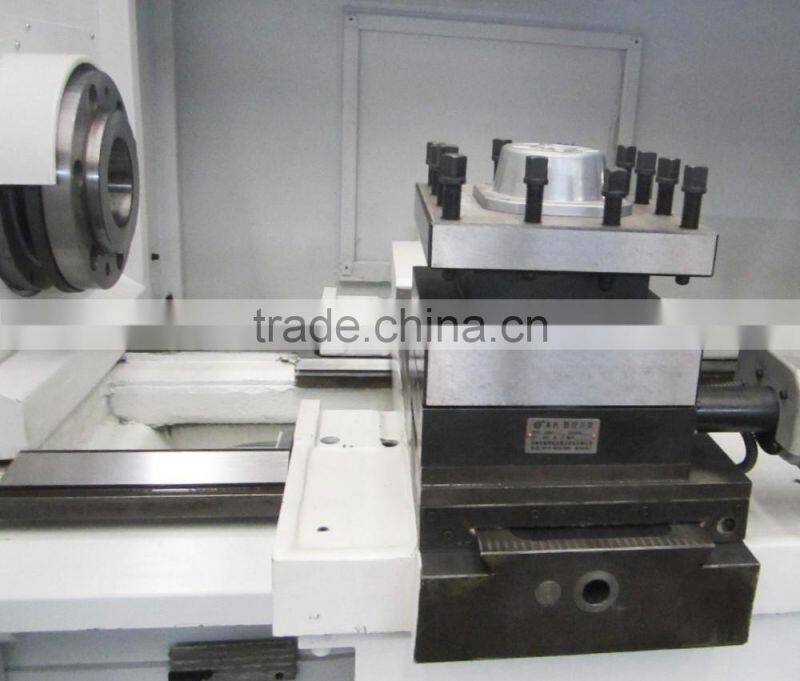

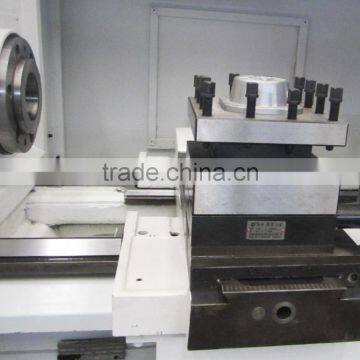

                               • Working Area                                             • Vertical 4-station Electric Tool-post

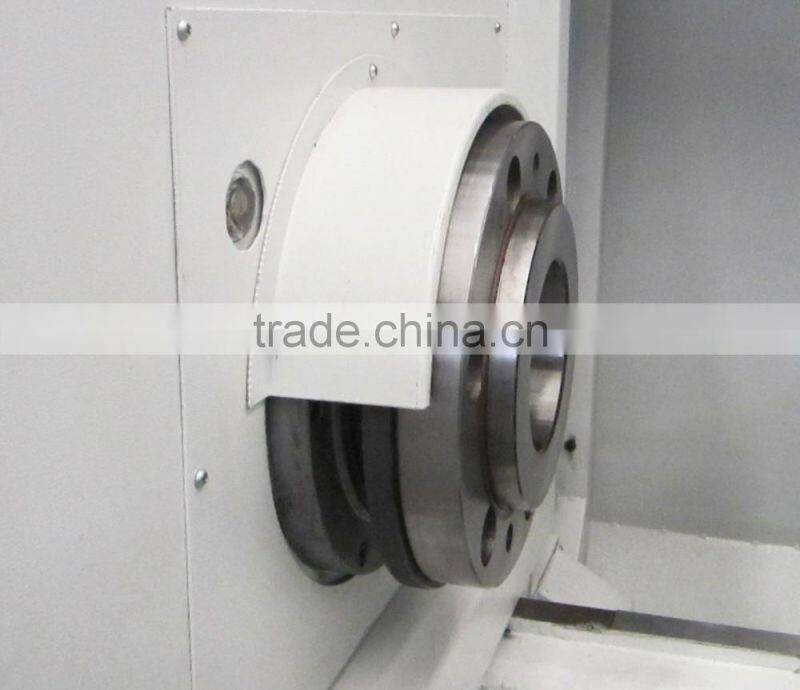

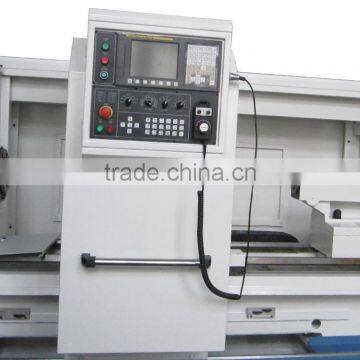

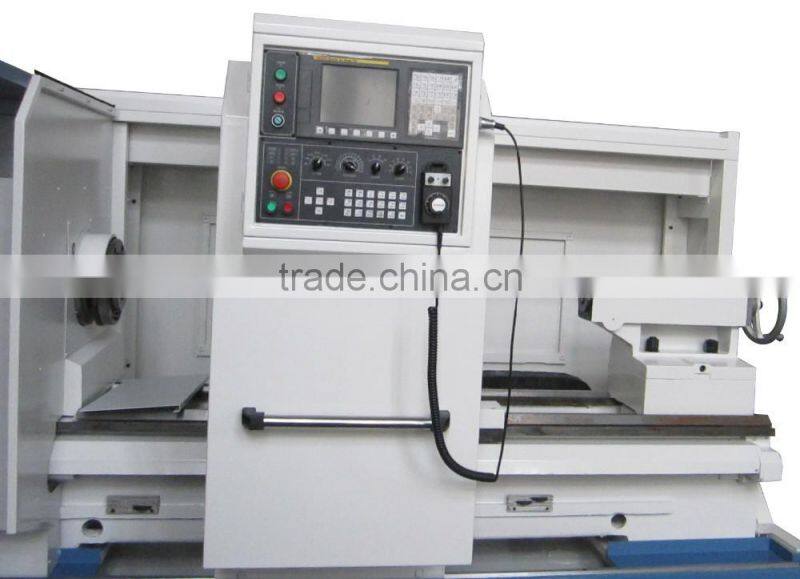

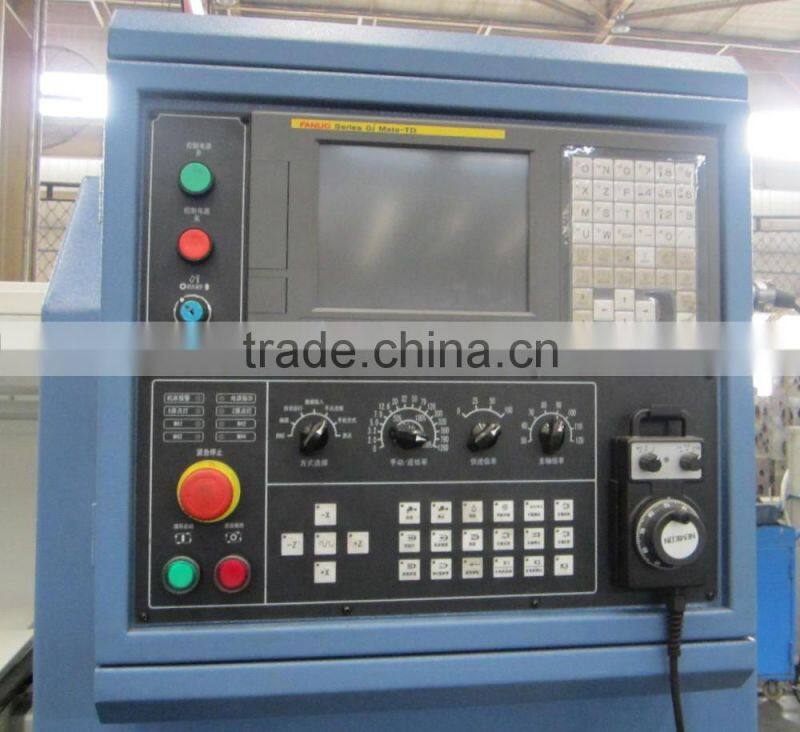

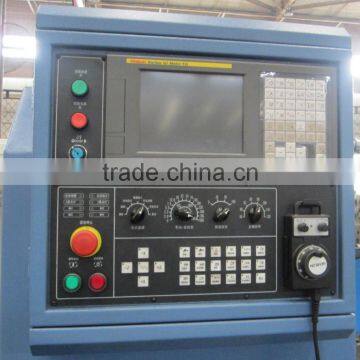

                          • C11-type Spindle                                                           • FANUC CNC System

* Delivery time: 60~90 days(approx.)

* Payment terms: T/T with 30% down payment, and the balance to be paid before shipment.

* Warranty period: one year after delivery. (Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
