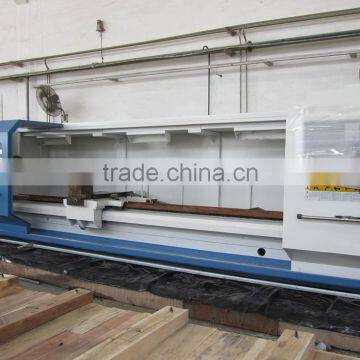

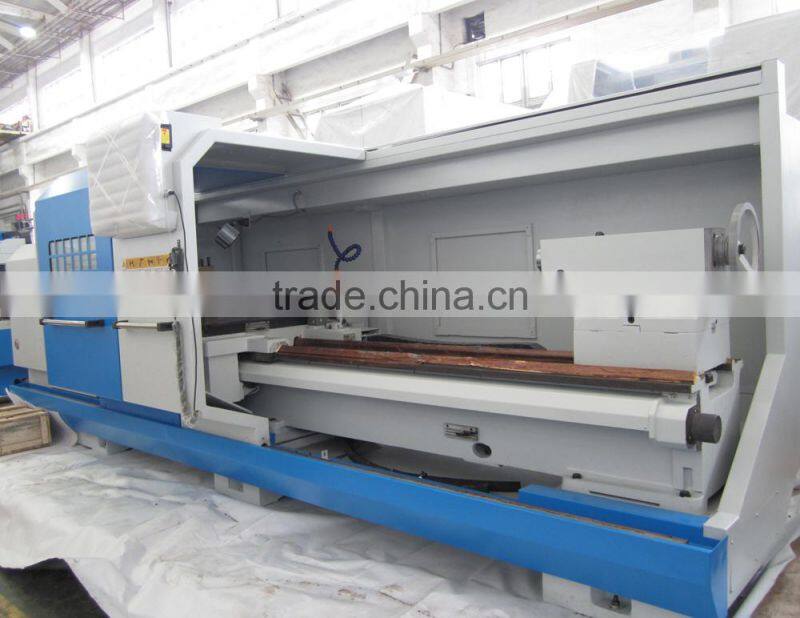

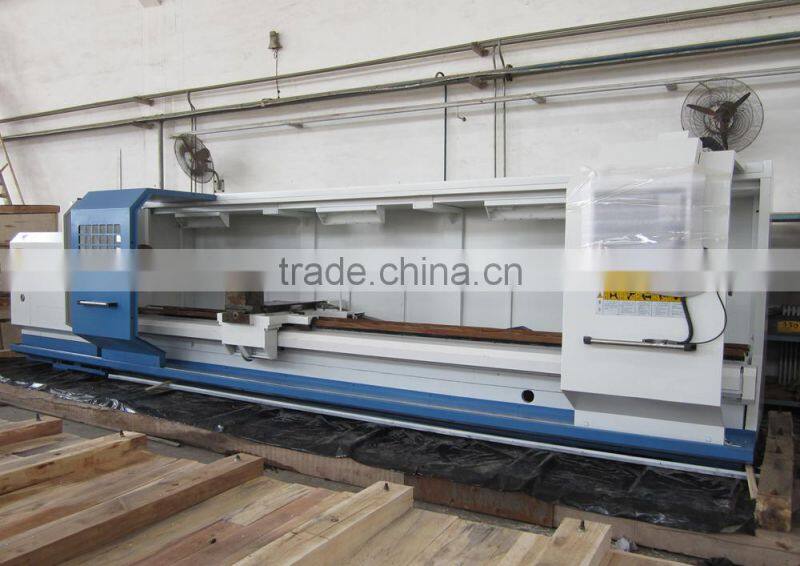

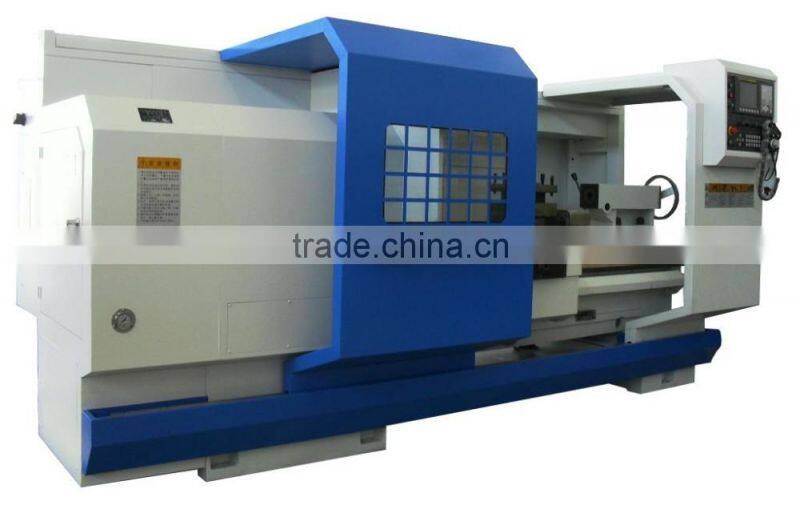

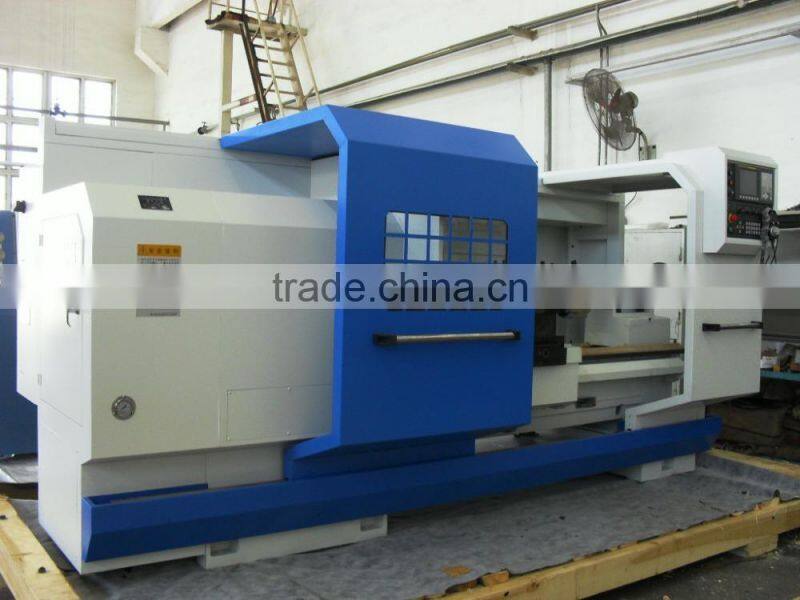

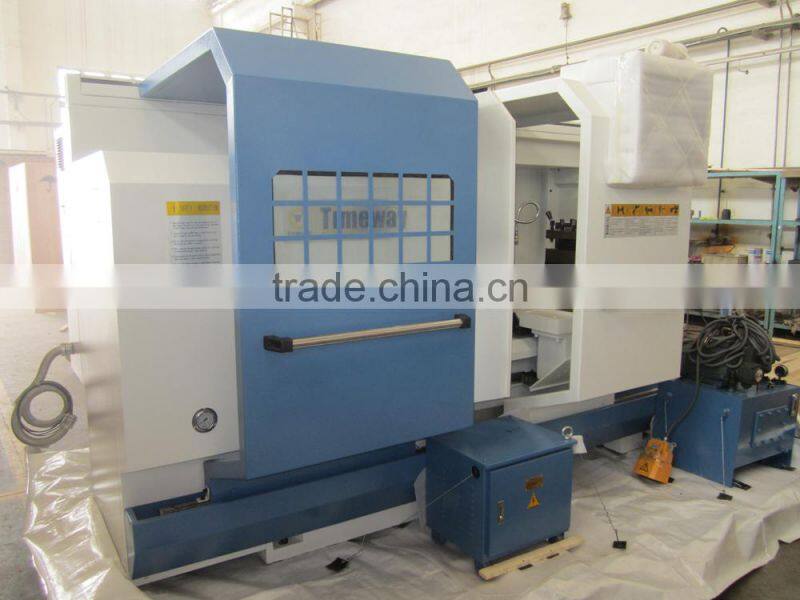

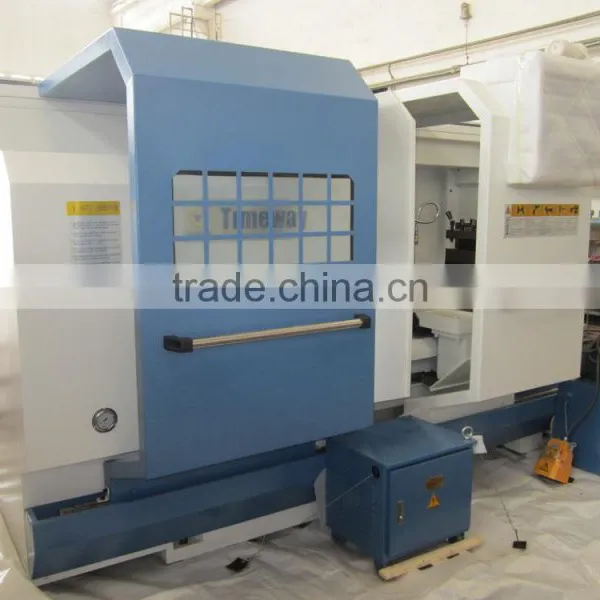

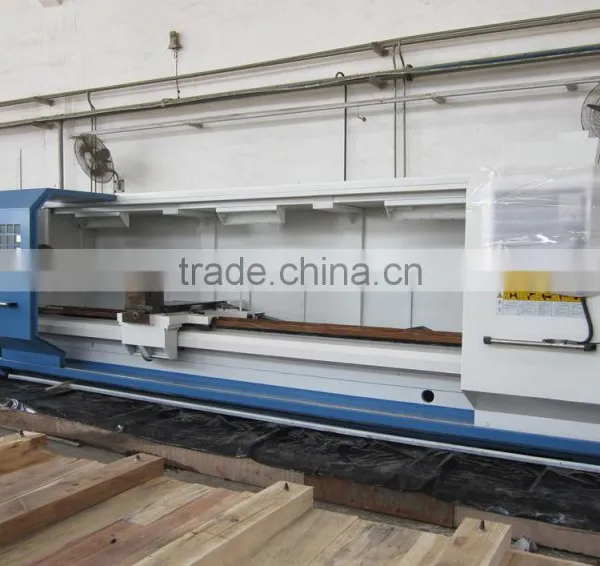

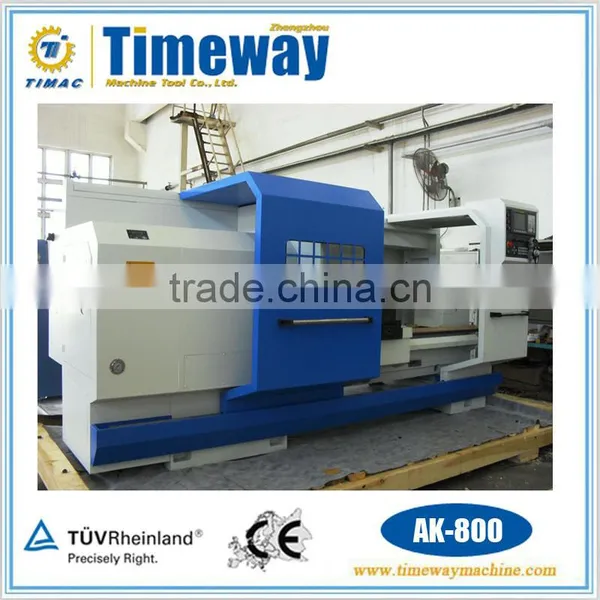

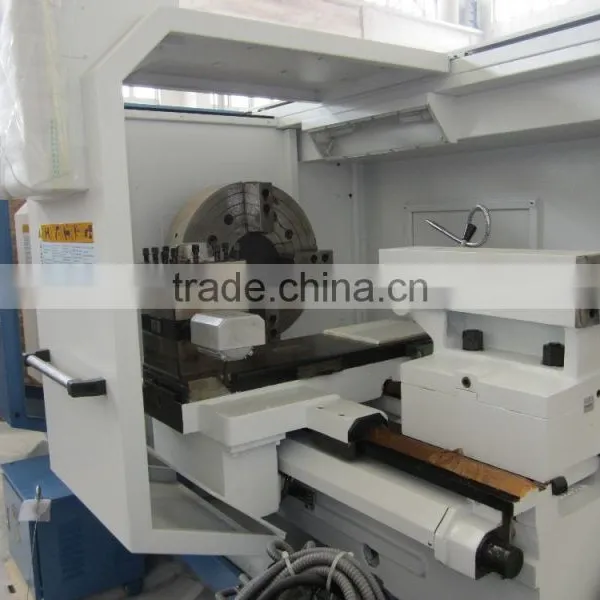

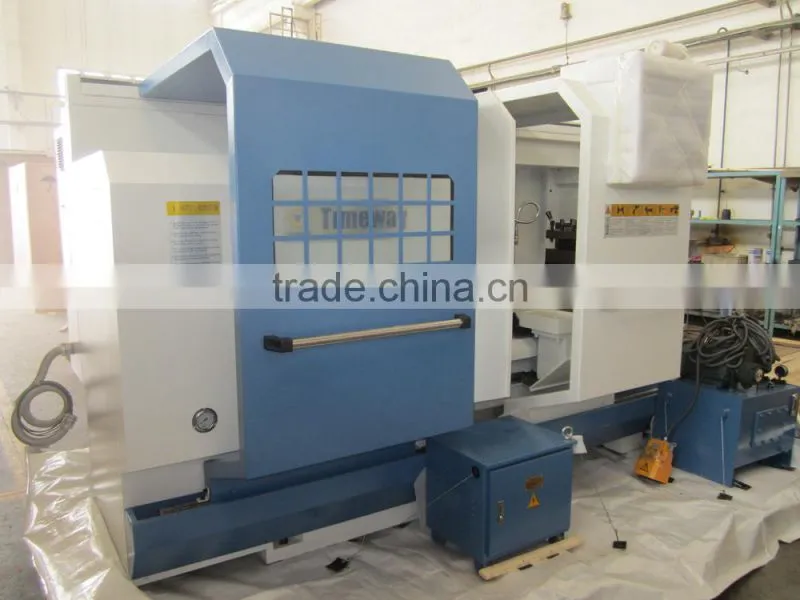

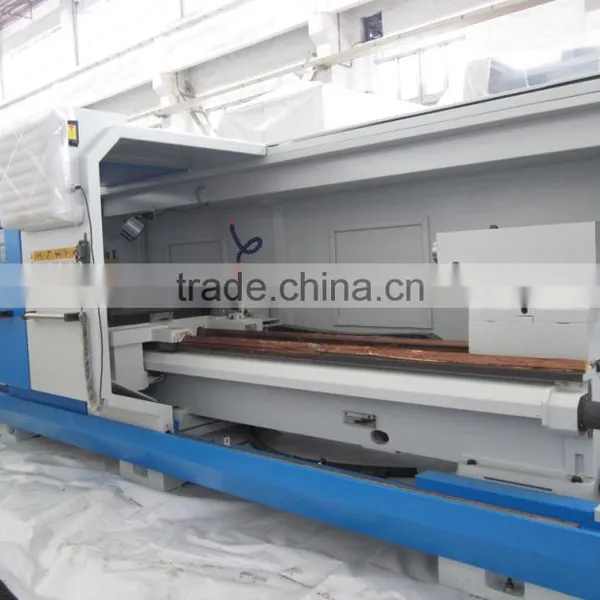

CNC Horizontal Industrial Lathe
AK-630 AK-800 AK-940
Features:
- Lots of experience went into the design and construction of this machine bed featuring large guides that are hardened, ground and counter-laminated.
- Headstocks of main spindle and gears were constructed to ensure optimum temperature balance and minimum heat influence.
- The heavy duty tailstock is easy to handle and features high clamping force.
- Wide V-block guides, hardened and ground-superior rigidity of the lathe flat bed across all models of this series.
- Automatic central lubrication for simplified maintenance, powerful coolant system ensure machining accuracy.
- High torque drives and preloaded ball screw on all axes.
AK series accomplish step-less spindle speed-changing by means of main motor frequency conversion and 4-shift hydraulic gear-change.
AK…J series obtain 18 speeds all manually.
AK…A series spindle speed changing introduces 6-shift hydraulic gear-change and 3-shift manual gear-change to obtain 12 speeds.
Machine Tool Accuracy Standard:(mm)
| X-axis | Positioning Accuracy | 0.032 | |||||||
| Repositioning Accuracy | 0.009 | ||||||||
| Z-axis | Length | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Positioning Accuracy | 0.04 | 0.045 | 0.05 | ||||||
| Repositioning Accuracy | 0.011 | 0.014 | 0.018 | ||||||
| Machining Accuracy | IT6-IT7 | ||||||||
| Surface Roughness | Ra1.6(um) | ||||||||
Parameter:
Specification |
Unit |
AK-630 |
AK-800 |
AK-940 |
Swing over bed |
mm |
630 |
800 |
940 |
Swing over carriage |
mm |
340 |
510 |
650 |
Maximum length of workpiece |
mm |
750/1000/1500/2000/3000/4000/5000 |
||
Maximum turning length |
mm |
600/850/1350/1850/2850/3850/4850 |
||
Span of guideway |
mm |
550 |
550 |
550 |
Spindle nose |
|
C11 |
C11 |
C11 |
Chuck(Manual) |
mm |
325 |
325 |
325 |
Spindle bore |
mm |
100 |
100 |
100 |
Taper hole of spindle |
|
1:20/120 |
1:20/120 |
1:20/120 |
Spindle speed and range |
rpm |
12.5-1000 |
10-800 |
10-800 |
Center height from bed |
mm |
315 |
400 |
470 |
Min.feed increment of X-/Z-axis |
mm |
0.001/0.001 |
0.001/0.001 |
0.001/0.001 |
Rapid speeds of X-/Z-axis |
mm/min |
3000/6000 |
3000/6000 |
3000/6000 |
Max.travel of x-axis |
mm |
390 |
475 |
475 |
Tool-post working position |
|
4-position electrical turre |
4-position electrical turre |
4-position electrical turre |
Indexing time |
s |
2.4(V4) |
2.4(V4) |
2.4(V4) |
Indexing repeatility |
"mm |
0.008 |
0.008 |
0.008 |
Section of tool shank |
mm |
32 |
32 |
32 |
Diameter of tailstock quill |
mm |
100 |
100 |
100 |
Travel of tailstock quill |
mm |
250(standard) |
250(standard) |
250(standard) |
Taper hole of tailstock quill |
|
Morse 5 |
Morse 5 |
Morse 5 |
Workpiece accuracy |
|
IT6-IT7 |
IT6-IT7 |
IT6-IT7 |
Surface roughness |
|
Ra1.6 |
Ra1.6 |
Ra1.6 |
Main motor power |
kw |
11 |
11 |
11 |
*** Standard Accessories:
FANUC or SIEMENS CNC system, 3 jaw chuck, 4 station electric tool post, Coolant system, Auto. Lubrication unit, Lighting unit,
Manual moving tailstock, Semi-closed guard, General tools, Operator manuals (English edition), etc.
*** Optional Accessories:
6 station electrical tool post;
Hydraulic solid chuck;
Hydraulic hollow chuck;
Hydraulic tailstock.
Machine Tool Dimension:
| Unit:(mm, kg) | 750 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| AK-630 | ||||||||
| Length | 3200 | 3445 | 3895 | 4390 | 5390 | 6580 | 7580 | 8580 |
| Width | 1800 | |||||||
| Height | 1880 |
|||||||
| Net Weight | 3500 | 3700 | 4000 | 4500 | 5000 | 6100 | 7100 | 8000 |
| AK-800 | ||||||||
| Length | 3200 | 3445 | 3895 | 4390 | 5390 | 6580 | 7580 | 8580 |
| Width | 1880 | |||||||
| Height | 1930 | |||||||
| Net Weight | 3700 | 3900 | 4200 | 4700 | 5200 | 6300 | 7300 | 8200 |
| AK-940 | ||||||||
| Length | 3200 | 3445 | 3895 | 4390 | 5390 | 6580 | 7580 | 8580 |
| Width | 1880 | |||||||
| Height | 1930 | |||||||
| Net Weight | 4200 | 4400 | 4700 | 5200 | 5700 | 5800 | 7800 | 8600 |

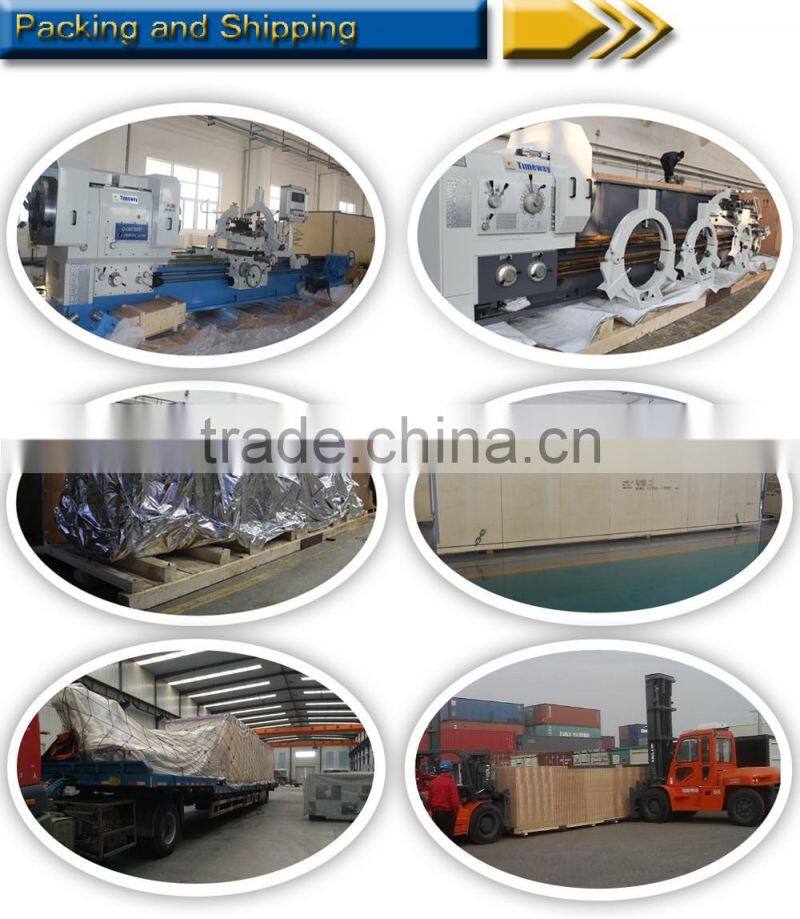

Packaging:
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
Container loaded: 4 sets / 20'GP
