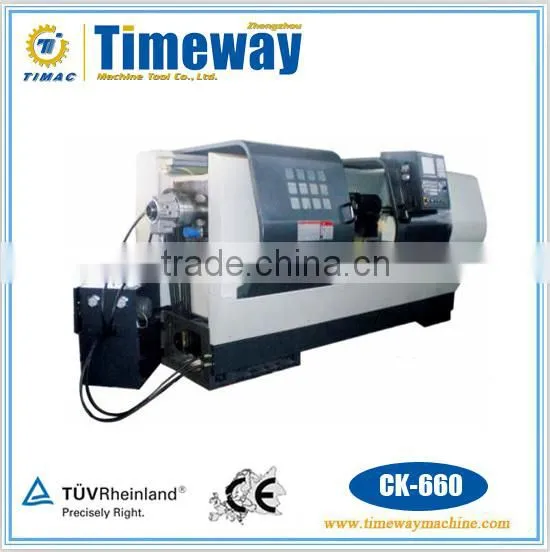

"660mm swing " FANUC Flat Bed Type CNC Lathe Machine Specification For Sale (CK660)
Features :
* The machine adopts global famous controller RS232 interface.
* Longitudinal and cross feeds are effected by ball leadscrews.
* Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
* The tool post is located on precision contrite gears with a high repeated positioning accurcy.
* Both chuck and tailstock are supplied with hydraulic or manual type.
* The surface of the guideways is supersonic frequency hardened and precision ground with a long sercice life.
* The spindle system is high in the rigidity and accuracy.
* An inverter is used to realize variable speed.
Standard :
FANUC 0i mate controller, FANUC servo feed motor, inverter main motor, NSK bearings, 3 jaw chuck,
4station electric tool post, manual tailstock, automatic lubricatiing unit, cooling system, lighting unit,
general tools, operation manaual (English edition).
Optional :
Other brand controllers, 6 station electric tool post, gang type tool post, hydraulic solid chuck,
hydraulic hollow chuck, hydraulic tailstock
Parameter:
Specification |
Unit |
CK-660 |
Max. Swing over bed |
mm |
660 |
Max. Swing over carriage |
mm |
430 |
Center distance |
mm |
750/1000/1500/2000/3000 |
Max. Turning length |
mm |
850/900/1400/1900/2900 |
Spindle nose |
|
D8 |
Spindle bore |
mm |
105 |
Spindle taper |
|
113 1:20 |
Steps of spindle speed |
|
4 steps (variable) |
Range of spindle speed |
rpm |
27-135 55-270 160-805 325-1630 |
Rapid feed for Z axis |
m/min |
10 |
Rapid feed for X axis |
m/min |
8 |
Max. Travel of Z axis |
mm |
720/970/1270/1970/2970 |
Max. Travel of X axis |
mm |
365 |
Min. input |
mm |
0.001 |
Tool post stations |
mm |
4/6 |
Tool section |
mm |
32×32 |
Tailstock sleeve diameter |
mm |
75 |
Tailstock sleeve taper |
|
MT.NO.5 |
Tailstock sleeve travel |
mm |
150 |
X/Z motor torque |
Nm |
10/10 10/22 |
Main motor power |
kw |
11 |
Cooling pump power |
w |
90 |
Overall dimension (L×W×H) |
mm |
2250/2500/3000/3500×1250×1580 |
Net weight |
kg |
2800/3100/3700/4300/5300 |
