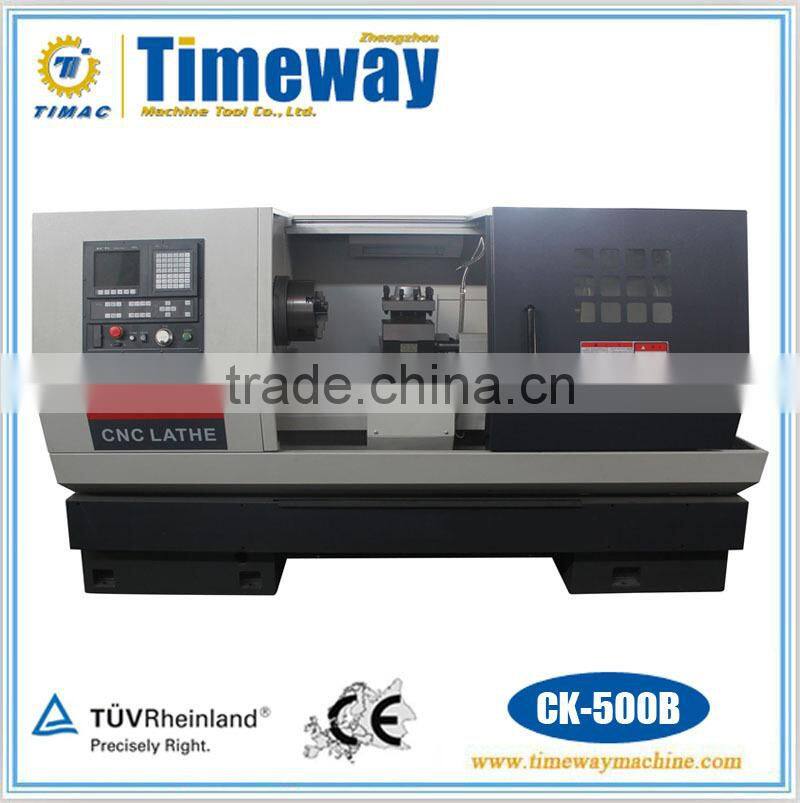

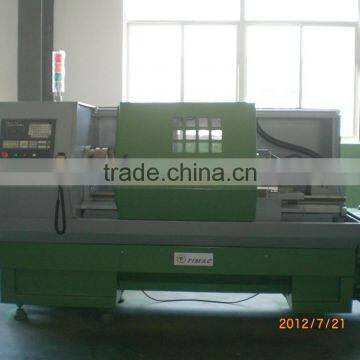

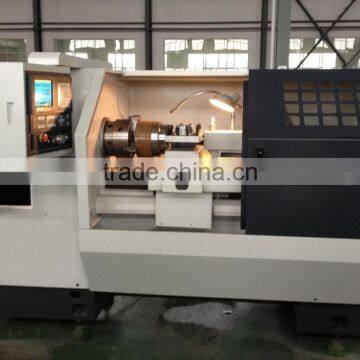

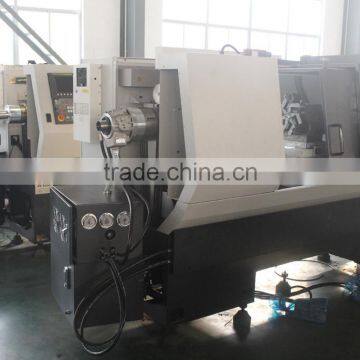

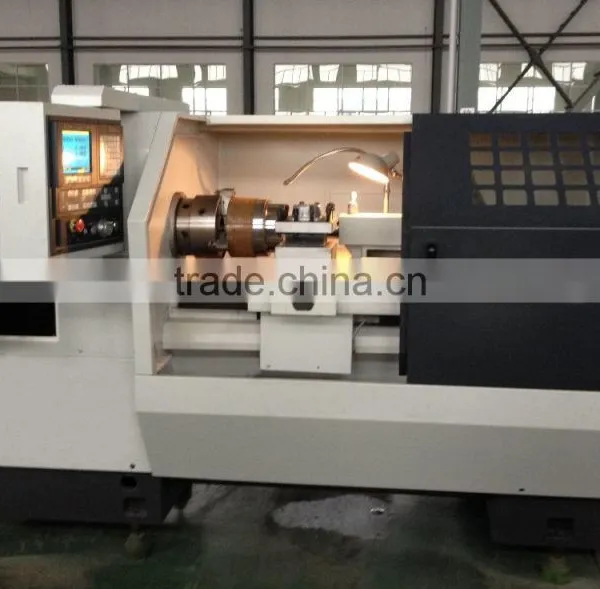

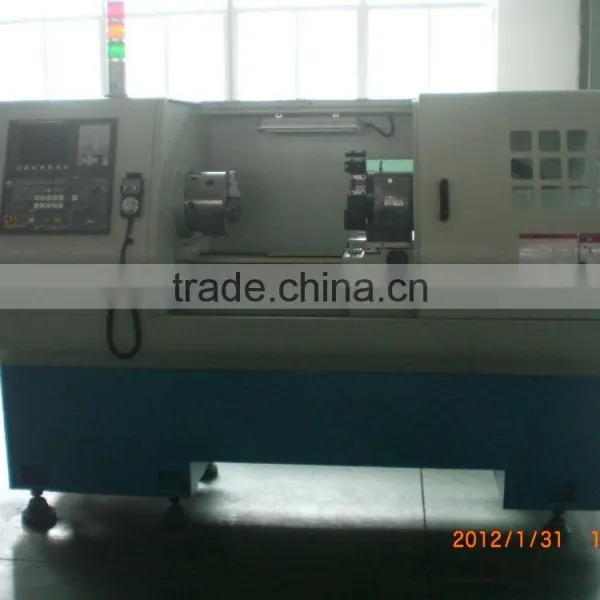

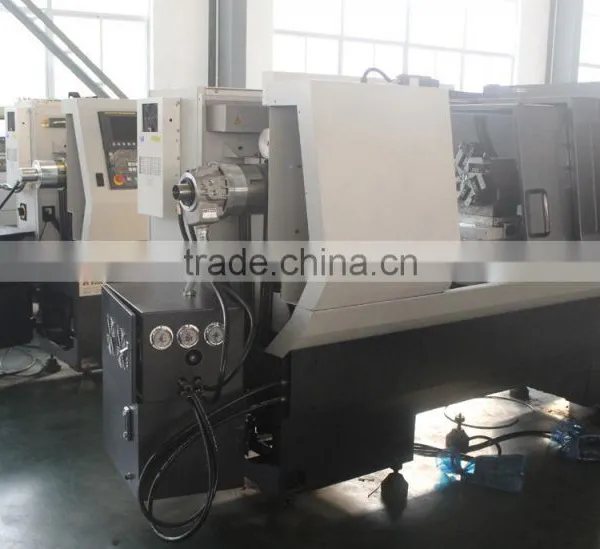

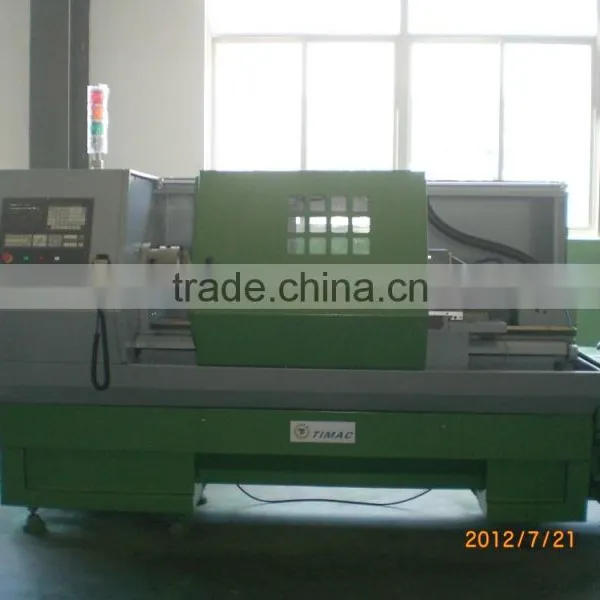

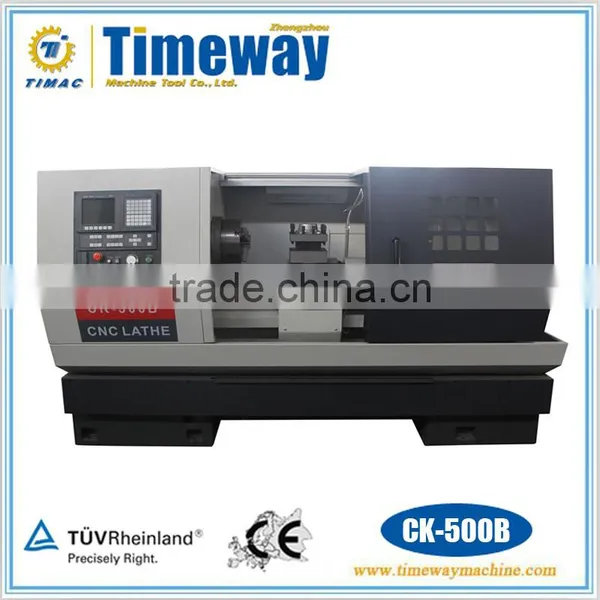

Flat Bed CNC Lathe CK-500B
- 50 Set / Sets per Month
- Shanghai Port
- T/T
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 500MM | Brand Name | TIMAC | |
| Model Number | CK-500B | Voltage | As clients' request | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 2250X1200X1520mm | |
| Weight | 2700KG | Certification | ISO9001, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Economical Flat Bed CNC Lathe
Features:
1. The machine adopts global famous controller with RS232 interface.
2. Longitudinal and cross feeds are effected by ball leadscrews .
3. Either vertical or horizontal 4 station or 6 station tool post or gang tools can be selected.
4. The post is located on precision contrite gears with a high repeated positioning accuracy.
5. Both chuck and tailstock are supplied with hydraulic or manual type.
6. The surface of the guideways is supersonic frequency hardened and precision ground with a long service life.
7. The spindle system is high in the rigidity and accuracy.
8. An inverter is used to realize variable speed.
Parameter:
Specification | Unit | CK-500B | CK-560B | CK-660 | |
*Capacity | Max. swing dia. over bed | mm | 500 | 560 | 660 |
Max. swing dia. over carriage | mm | 310 | 330 | 430 | |
Center distance | mm | 750/1000/1500/2000/3000 | |||
Max. turning length | mm | 650/900/1400/1900/2900 | |||
*Spindle | Spindle nose |
| A2-8 | D8 | |
Spindle bore | mm | 80 | 105 | ||
Spindel taper |
| MT.No7 | 113 1:20 | ||
Steps of spindle speed |
| 2steps(Variable) | 4steps(Variable) | ||
Range of spindle speed | rpm | 400~1600(high), 50~400(low) | 27~135, 55~270, 160~805, 325~1630 | ||
*Feed & Travel | Rapid feed for axis Z | m/min | 10 | ||
Rapid feed for axis X | m/min | 8 | |||
Max. travel of axis Z | mm | 720/970/1270/1970/2970 | |||
Max. travel of axis X | mm | 300 | 320 | 365 | |
Min. input | mm | 0.001 | |||
*Tool post | Tool post stations |
| 4/6 | ||
Tool section | mm | 32×32 | |||
*Tailstock | Tailstock sleeve diameter | mm | 75 | ||
Tailstock sleeve taper |
| MT.No.5 | |||
Tailstock sleeve travel | mm | 150 | |||
*Motor | X/Z motor torque | Nm | 7.5/10, 7.5/22, | 10/10,10/22 | |
Main motor power | kw | 7.5 | 11 | ||
Cooling pump power | w | 90 | |||
*CNC Controller | Alternatives |
| GSK; FANUC; SIEMENS | ||
*Other | Overall dimension (L×W×H) | mm | 2250/2500/3000/3500/4500 ×1200×1520 | 2250/2500/3000/3500 ×1250×1580 | |
Net weight | kg | 2700/3000/3500/4000/4600 | 2800/3100/3700/4300/5300 | ||
*** Standard accessories:
FANUC 0i mate TD CNC system, FANUC servo feed motor, Electrical Handwheel,Inverter main motor, 3 jaw chuck, 4 station electric tool post, Coolant supply system, Auto. Lubrication unit, Lighting unit, General tools, Operation and maintenance manuals (English edition), etc.
*** Optional accessories:
6 station electrical tool post;
Hydraulic solid chuck;
Hydraulic hollow chuck;
Hydraulic tailstock
* CK-300S, CK-360S, CK-400S Sereis CNC Lathe
* CK-400A, CK-460A, CK-500A Sereis CNC Lathe
* CK-500B, CK-560B, CK-660 Sereis CNC Lathe
* CK-400N, CK-500N Sereis CNC Lathe

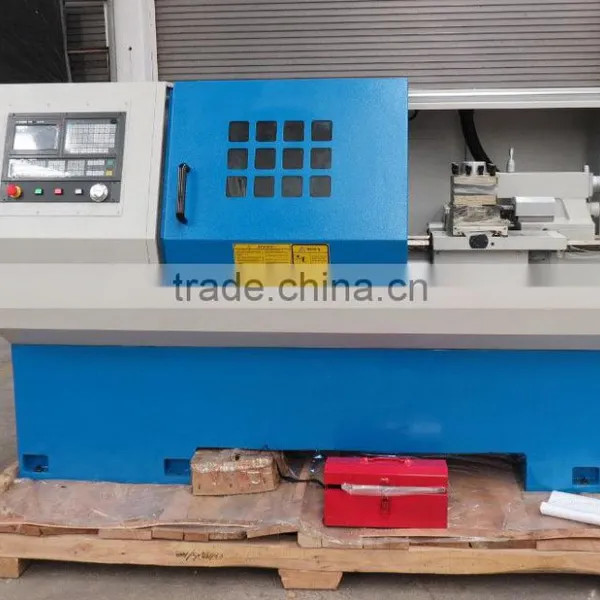

Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
