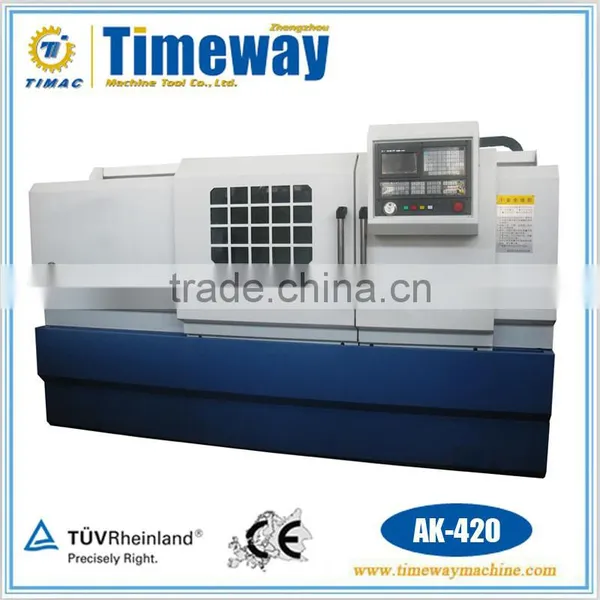

Flat Bed CNC Lathe AK-420

Name: Flat Bed CNC Lathe AK-420
Brand: TIMAC
SKU: 140795768
Availability: InStock

US$ 10,988 - 19,259 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 420mm

Brand Name TIMAC

Model Number AK-420

Voltage As clients' request

Power(W) 7.5kw

Dimension(L*W*H) 1870/2120/2370 x 1200 x 1420mm

Weight 1.6/1.8/2 tons

Certification CE norms

Product Description

Economical Flat Bed CNC Lathe

Features:

Solid block machine base construction with good rigidity and nice looking,width of bed guide way is 400mm.
Surface of bed guide way,the part supporting main spindle and gears are dealed by chilling,and are milled and turned precisely,so the precision are well held.
The X-axis and Y-axis bed guide ways are glued by "TSF" polyvinyl fluoride soft belts,and are smooth and enduring in low speed.
The surfaces of bed guide ways and ball-screws use automatic lubrication system ,reliable and conveniednt.
Driving motor subject to user's option,stepping motor and servo motor are availabe.
Controling system subject to user's option completely.

Parameter:

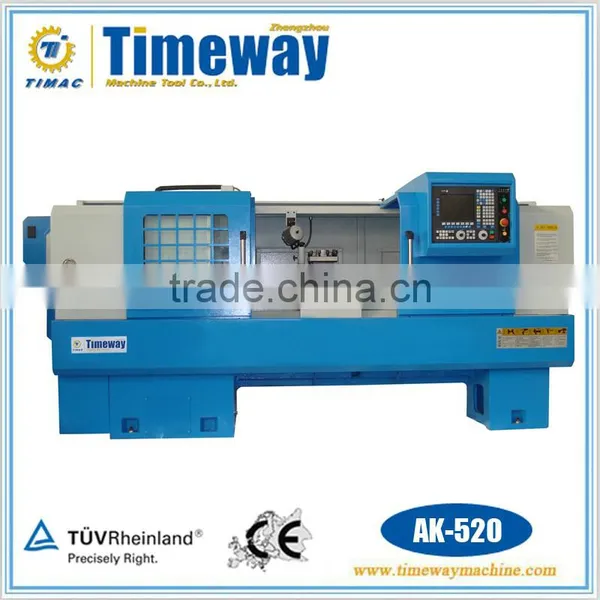

Specification	Unit	AK-420	AK-520
Capacities
Swing over bed	mm	420	520
Swing over carriage	mm	210	300
Max. length of workpiece	mm	500 / 750 / 1000 / 1500 / 2000
Max.cutting length	mm	350 / 600 / 850 / 1350 / 1850
Width of guideway	mm	400
Spindle
Spindle nose	mm	C6	C8
Spindle bore	mm	58	80
Inner taper of spindle nose/Dia.of the big end	mm	1:20/63	1:20/86
Spindle speed and range	r.p.m	27.5-2200		25-2000
Feed motion
min.feed increment of x-/z-axis	mm	0.001/0.001
Rapid speeds of x-/z-axis	mm/min	4000/6000
max.travel of x-axis	mm	300
Tool post
Tool-post working position		V4 / V6 / H6
Indexing time	s	2.4(V4) 2.2(V6) 1.6(H6)
Indexing repeatility	mm	0.008
Size of tool shank	mm	25
Tailstock
Diameter of Tailstock quill	mm	85
Travel of tailstock quill	mm	150
Taper Hole of tailstock quill	Morse	Morse No. 5
Accuracy
Workpiece accuracy		IT6IT7
Surface roughness	µm	Ra1.6
Others
Main power	kW	7.5
Lathe weight	kg	2600/2900/3200/3600/4000
Overall dimensions(Length×width×height)	mm	2380/2610/2860/3430/3910×1340×1750
